OMRON E3F2‑R2B4‑P1‑E Retro‑reflective Photoelectric Sensor (Photoelectric Switch)

• E3F2: Cylindrical photoelectric sensor series
• R: Retro‑reflective detection mode
• 2: Maximum sensing distance 2 m
• B4: PNP normally‑closed output
• P1: M12 connector type
• E: Enhanced version with strong light‑resistance

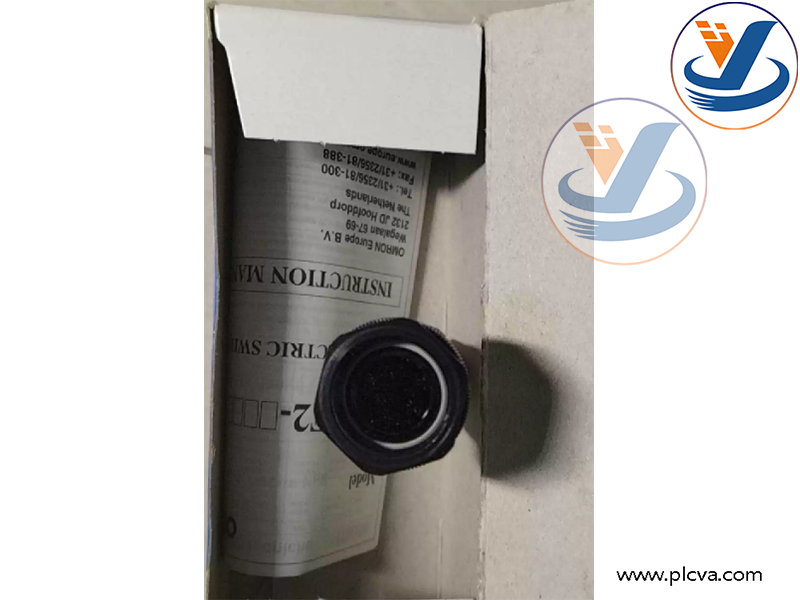

OMRON E3F2‑R2B4‑P1‑E

Main Functions

1. Retro‑reflective working principle: The sensor emits infrared light to a dedicated reflector, light is reflected back to receiver to detect the presence or absence of target object. Max sensing distance: 2 meters.
2. Output: PNP normally‑closed output, M12 4‑pin connector for quick plug‑and‑unplug, convenient for maintenance.
3. Enhanced anti‑interference performance against strong ambient light such as sunlight and workshop lamp light to prevent false triggering.
4. Cylindrical metal housing with IP67 protection rating, dust‑proof and splash‑water resistant for dusty and humid workshop environments.
5. Adjustable sensitivity for objects of different colors and materials. Built‑in status LED for visual monitoring of operation and trigger status.
6. Power supply DC 10‑30 V, standard industrial power supply, directly compatible with PLC digital input modules.www.plcva.com

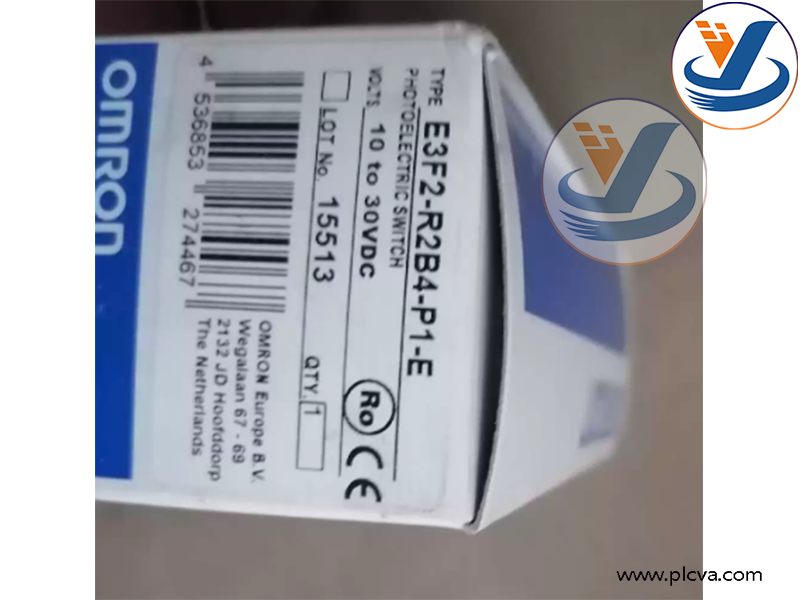

OMRON E3F2‑R2B4‑P1‑E

Applications

1. Assembly line inspection: Presence detection of materials, workpiece position confirmation, object counting and positioning on conveyor belts.
2. Machine limit detection: Position monitoring for packaging machinery, injection‑molding machines and conveying equipment, material‑level detection.
3. Automated logistics & warehousing: Object detection on roller conveyors and sorting lines, detection of cartons and pallets.
4. Machine tools, metallurgy and light‑industry equipment for object block‑and‑shield detection.
