ALSTOM‑GE MMLG01 Standard Relay‑Protection Test Block Module of Midos Series
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction

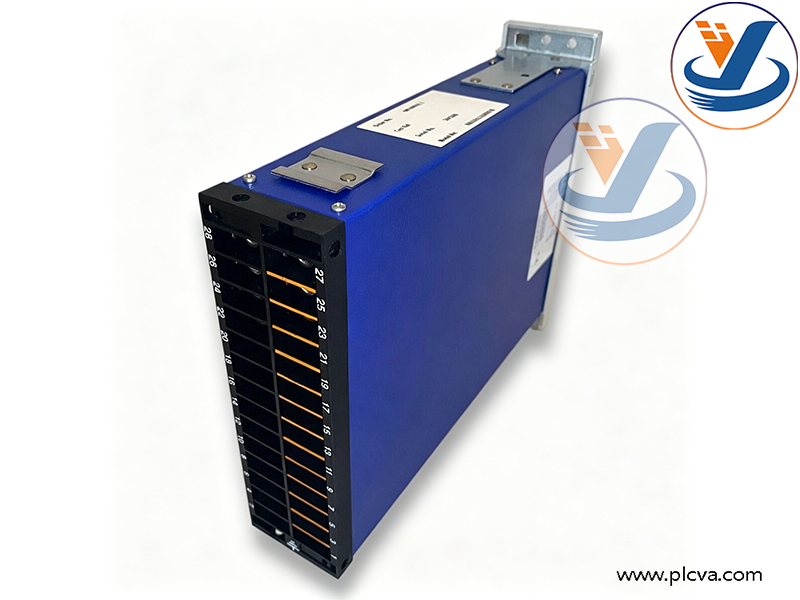

ALSTOM‑GE MMLG01 Standard Test Block Module
Brand: ALSTOM (Later acquired by GE Vernova)
Model: MMLG01
Device Name: Test Block Module, Standard Test Block
Product Background
MMLG01 belongs to ALSTOM Midos relay‑protection accessory family. ALSTOM Grid business was later taken over by GE Vernova. It is a dedicated safety test‑interface module for power‑system relay‑protection panels.
‑ It is rack‑mount plug‑in module, working in pair with dedicated test plug MMLB01.
‑ It contains 14 independent circuits wired to CT / PT secondary circuits at rear terminals. Internal spring‑loaded contacts keep closed for normal protection‑loop continuity.
‑ When MMLB01 test plug is inserted, internal contacts open field circuits safely and connect test instruments. It prevents dangerous high‑voltage caused by CT secondary open‑circuit. No field wiring removal is required for secondary‑injection protection test.
‑ OEM production discontinued (EOL). Mainly supplied as spare parts for substation & power‑plant panel maintenance.
ALSTOM‑GE MMLG01 Standard Test Block Module
Model Breakdown
- ALSTOM‑GE: Brand, ALSTOM grid business later integrated into GE Vernova
- MMLG01: Hardware model. MMLG = Midos Test Block Group; 01 = Standard version
- Standard Test Block: Product type
Main Functions
- Safe isolation & test interface for protection loops Internal spring‑contacts remain closed for normal CT / PT secondary‑circuit operation. Insert matched MMLB01 multi‑finger test plug to isolate field circuits and connect test‑set instruments safely. It eliminates high‑voltage hazard from CT secondary open‑circuit.More products: www.plcva.com
- Maintenance & test without wiring disconnection Protection‑relay calibration and signal monitoring can be performed without modifying rear panel wiring, lowering on‑site mis‑wiring risk.
- 14 independent signal circuits Fourteen isolated circuits bring current‑loop, voltage‑loop and trip‑loop signals to front test interface.
- Mechanical interlock safety Opening front cover or inserting test plug will cut off trip auxiliary circuits automatically to avoid accidental protection tripping during test.
- Modular panel‑rack mounting Midos standard form factor, installed adjacent to Midos‑series protection relays inside control panel.
Important Note: This module shall work together with MMLB01 test plug. MMLG01 alone is only base unit and cannot perform testing function.
ALSTOM‑GE MMLG01 Standard Test Block Module
Applications
Applied for legacy power‑system spare‑part replacement; not selected for new‑project design.
Relay‑protection panels in substations & thermal power plants (primary application) Deployed for line protection, transformer protection and generator‑protection panels. Serves as dedicated test access for CT / PT secondary circuits during relay‑protection maintenance, periodic inspection and secondary‑injection testing.
Compatible with ALSTOM / GE Midos modular protection relay system.
