Honeywell 51304487‑100 (MU‑PDOX02) Digital Output Processor
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Product Background
This I/O card belongs to Honeywell TDC‑3000 / Micro‑TDC3000 Distributed Control System, compatible with HPM and APM process managers for discrete output control.

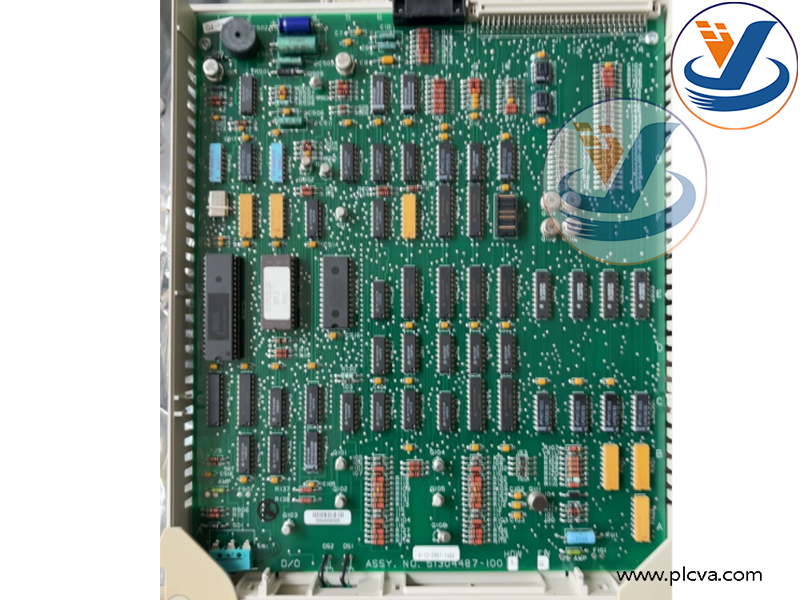

Honeywell 51304487‑100
This module is End‑of‑Life (EOL), original new manufacturing has been discontinued. Most available units on market are used pulled‑out or refurbished tested spares.
A large number of these cards are still operating in legacy petrochemical, refinery, chemical and power plants. Failure of this card will result in loss of control for field solenoid valves and relays, so spare‑part replacement demand remains high. It is interchangeable with 51304487‑150 (MC‑PDOX02) for TDC‑3000 platform.

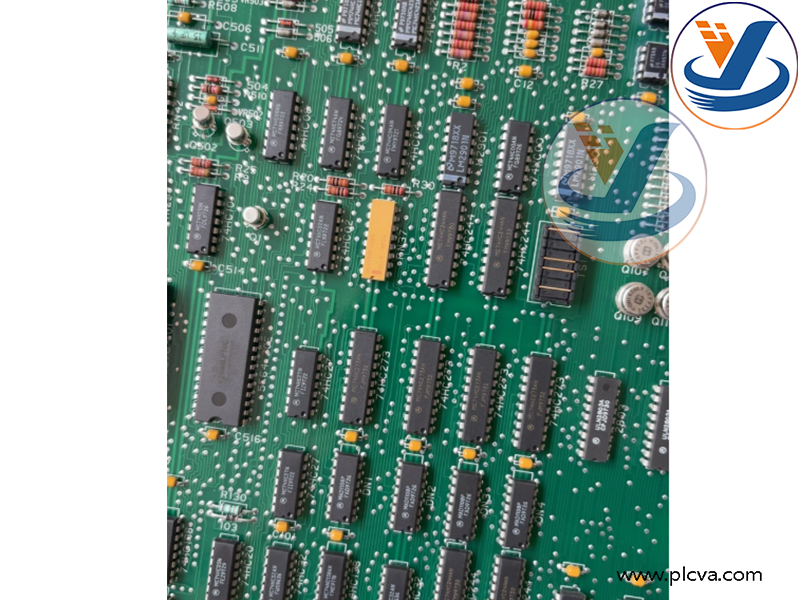

Honeywell 51304487‑100
Main Functions
- Discrete digital output driving: receive logic commands from controller, output multi‑channel discrete signals to drive field solenoid valves, relays, horn alarms and contactors.
- Galvanic isolation and circuit protection between field side and system side, suppress industrial electromagnetic interference, provide over‑current and short‑circuit protection to safeguard DCS controller hardware.More products: www.plcva.com
- I/O‑bus communication with HPM / APM processor: receive control orders from LCN network, and feed back channel status & fault information to control system.
- On‑board self‑diagnosis: detect channel short‑circuit, overload and module hardware failure. LED status indicators are equipped, fault alarms will be uploaded to DCS operator station for troubleshooting.
- Hot‑swap supported: online replacement in cabinet without interrupting other control loops, reduce plant maintenance downtime.
Honeywell 51304487‑100
Applications & Purpose
Installed in I/O slots of HPM / APM cabinet for Honeywell TDC‑3000 DCS system.
Widely used in petrochemical, refinery, power plant, chemical and pharmaceutical process industries.
Typical field usage: solenoid valve actuation, pump & motor contactor control, interlock trigger output, alarm light & horn driving, on‑off command for valve actuators.
It works at DCS I/O interface layer, converting internal DCS logic commands into field discrete driving signals. It is an output‑only module without signal input function.
And the type and model as well：
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
| 51304481‑150 | Low Level Analog Input Processor | MC‑PAIL02 |
| 8036972‑150 | Digital Input Processor (24VDC) | MC‑PDIY22 |
| 51309155‑175 | High‑Performance Process Manager Main Board | HPMM Main Board |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |
| 80363975‑150 | Digital Output Processor | MC‑PDOY22 |
| 80363975‑100 | Digital Output Processor | MC‑PDOY22 |
| 51304485‑150 | Analog Output Processor | MC‑PAOY02 |
| 51304487‑100 | Digital Input Processor | MC‑PDIY02 |
| 51304485‑100 | Analog Output Processor | MC‑PAOY02 |
| 51304754‑150 | High Level Analog Input Processor | MC‑PAIH003 |
