1.Product Name

• Short Name: Honeywell 900PSM-0001 PSM Module
• Part Number Breakdown:
  • 900: HC900 series platform identifier
  • PSM: Power Status Module
  • 0001: Hardware revision / configuration variant

It is a rack-mount monitoring card installed in HC900 controller rack, working with HC900 power supply units and CPU modules.

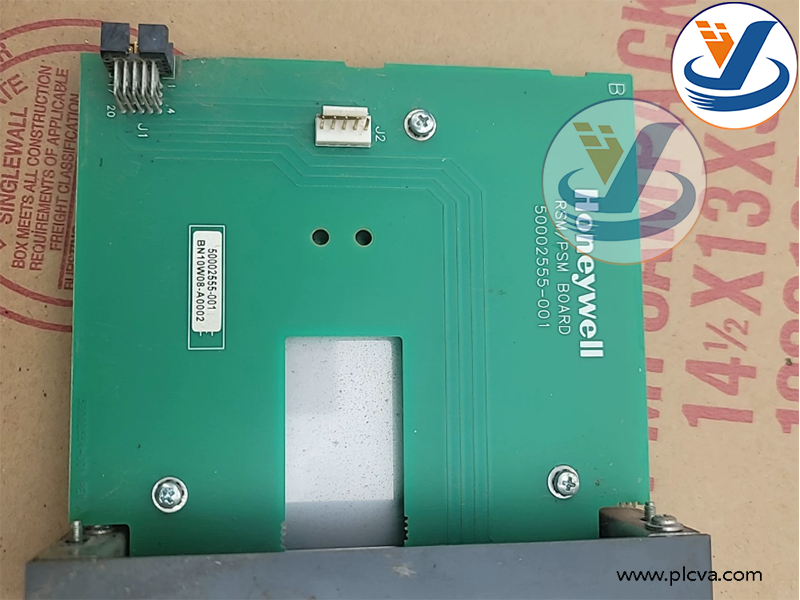

Honeywell 900PSM-0001 PSM Module

2. Core Functions

1. Multi-channel Power Supply Monitoring Continuously sample the output voltage and current of all rack power supplies, including primary and redundant power feeds. It tracks DC rail voltages for CPU, I/O backplane and communication circuits in real time.
2. Power Fault Detection & Alarm Reporting Detect undervoltage, overvoltage, power loss and power supply module failure. Once abnormality is captured, it sends fault signals to HC900 CPU and triggers local LED alarm indicators. It logs power failure events for audit and troubleshooting.
3. Redundant Power Source Voting & Supervision In redundant power configuration, it monitors the health status of dual power supplies, verifies load sharing status, and confirms automatic switchover performance between main and standby power sources. It prevents unexpected system trip caused by single power supply degradation.www.plcva.com
4. Rack Health Diagnostic & Status Communication Exchange rack power health data with HC900 CPU via backplane bus. Upload power status, alarms and event records to HMI or upper monitoring system for operator viewing.
5. System Power Sequence Auxiliary Supervision Monitor power-up and power-down sequence of the whole rack. It ensures the controller and I/O modules follow the correct energizing sequence to avoid incomplete initialization or hardware damage.
6. Local Visual Indication Equipped with LED status lights to show normal power status, power failure, module fault and redundant power switchover state for quick on-site inspection.

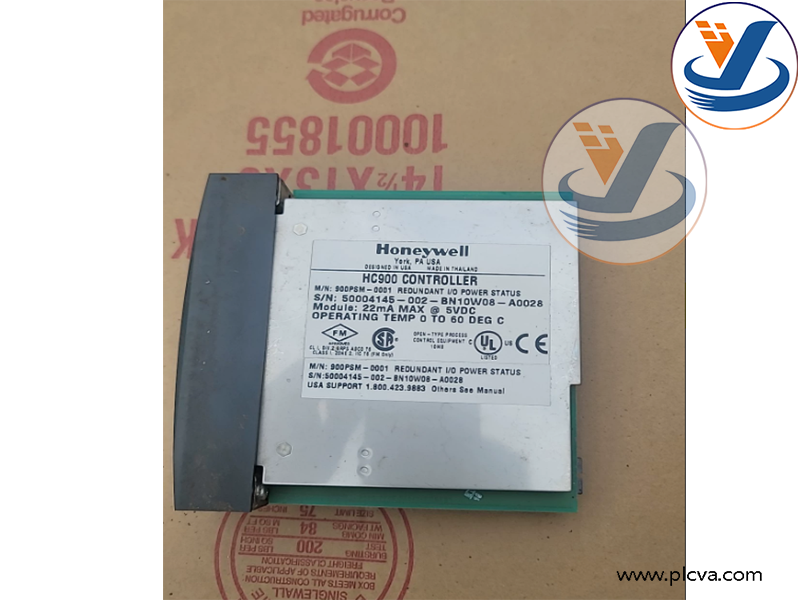

Honeywell 900PSM-0001 PSM Module

3. Purpose & Applications

Purpose

900PSM-0001 is a dedicated rack power monitoring module for Honeywell HC900 hybrid controller. It does not supply power itself; its core job is to supervise the working condition of rack power supplies, detect power anomalies in advance, report faults to the HC900 control system, and protect the whole HC900 controller rack from unstable power conditions. It guarantees reliable operation of the HC900 process and safety control system.www.plcva.com

Typical Application Scenarios

• Boiler and furnace combustion control (BMS)
• Batch process control in chemical, pharmaceutical and food industries
• Oil & gas skid control, pipeline monitoring and terminal automation
• Heat treatment kilns, dryers and thermal oxidizer control
• Water treatment and environmental protection process control
• Used as OEM component for new HC900 cabinet assembly, or MRO spare part for maintenance, outage repair and retrofit of existing HC900 control systems.
