1.Product Name

• Full Name: Honeywell FC-PUIO01 Universal Safety Input / Output Module
• Short Name: Honeywell FC-PUIO01 Safety UIO Module
• Part Number Breakdown:
  • FC: Safety Manager series module prefix
  • PUIO: Programmable Universal Input / Output (Safety UIO)
  • 01: Model variant identifier

Alternate factory drawing PN: 51454294-176 Mounted on matching safety backplane inside SIS rack

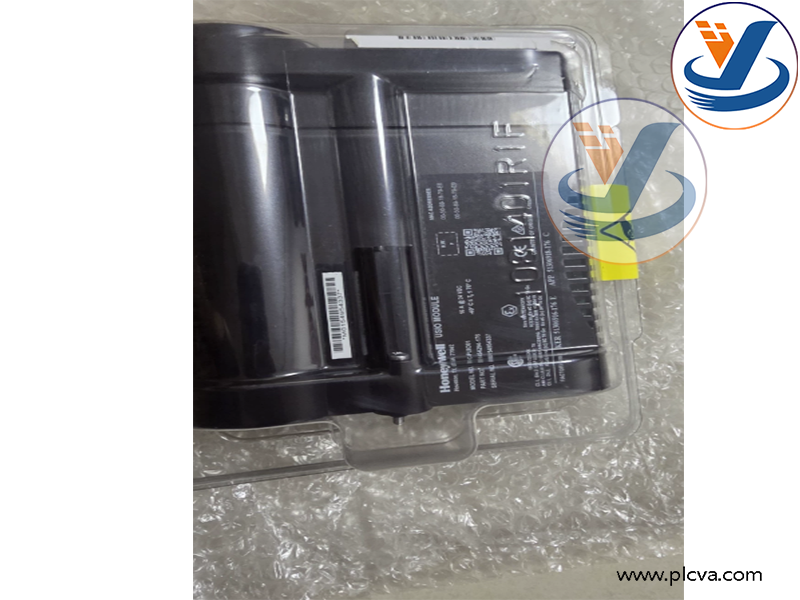

Honeywell FC-PUIO01 Safety UIO Module

2. Core Functions

1. Software-configurable Universal I/O Channels Every single channel can be independently programmed as analog input, digital input or digital output. It supports multiple signal types including 4–20mA, RTD, thermocouple, 24VDC discrete signals. One module replaces separate AI, DI, DO hardware cards and greatly reduces spare part types. www.plcva.com
2. Safety Signal Acquisition & Output Execution Collect safety-related field signals from safety transmitters, emergency stop switches, flame detectors and gas sensors. Execute safety output commands to drive solenoid valves, trip relays and shutdown actuators for safety instrumented functions (SIF).
3. Comprehensive Self-diagnostics & Fault Detection Continuous on-board diagnostics for channel circuit, signal wiring, open/short circuit and module hardware health. It reports fault status to the Safety Manager controller and triggers alarms automatically. Fault information is logged for maintenance troubleshooting.
4. Galvanic Isolation & High Safety Integrity Each channel provides galvanic isolation between field side and system backplane, prevents ground loop interference and transient voltage damage. This module complies with SIL3 certification, supporting redundant safety loop architecture for high-risk industrial plants.
5. Rack Backplane Communication Communicate with Safety Manager controller via rack backplane bus, transmitting field safety measurements and receiving safety trip commands in real time. It supports hot swap for module replacement without system shutdown.
6. Status Indication Equipped with LED indicators for module power, communication status, channel working state and fault alarms, enabling fast on-site visual inspection.

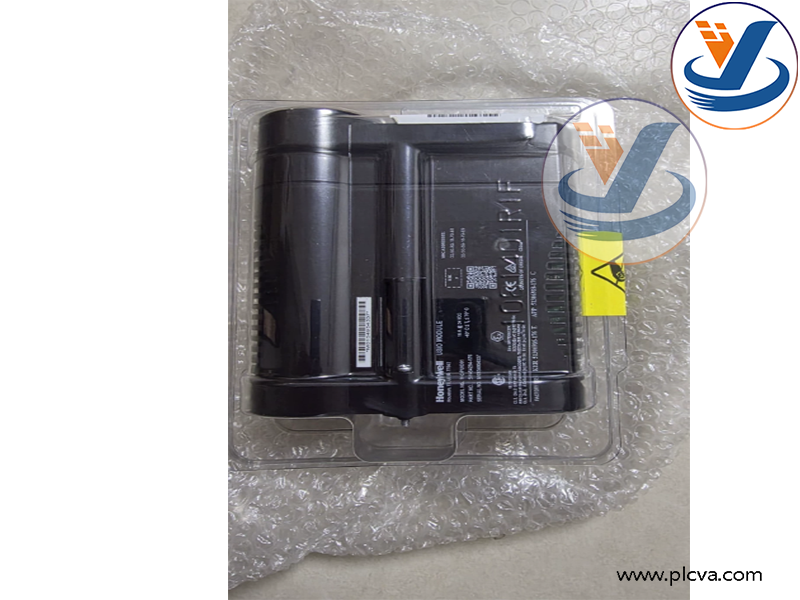

Honeywell FC-PUIO01 Safety UIO Module

3. Purpose & Applications

Purpose

FC-PUIO01 is a rack-mounted safety universal I/O module for Honeywell Safety Manager / Safety Manager SC SIS. It serves as the interface between safety controller and field safety devices, responsible for collecting safety process signals and executing safety trip actions. It builds SIL3 certified safety instrumented loops to prevent major hazardous incidents in process plants. www.plcva.com

Typical Application Scenarios

• Emergency Shutdown System (ESD) for petrochemical, refinery and oil & gas plants
• Fire & Gas (F&G) detection and protection systems
• Burner Management System (BMS) for boilers and furnaces in thermal power plants
• High Integrity Pressure Protection System (HIPS)
• Critical safety interlock control for chemical, fertilizer and offshore facilities
• Used as OEM component for new SIS cabinet integration, or MRO replacement spare for plant outage maintenance and system retrofit.

Honeywell FC-PUIO01 Safety UIO Module
