1. Product Background

IGCT technology was developed by ABB as a major upgrade of GTO (Gate Turn‑Off Thyristor). Traditional GTO thyristors require large‑volume, high‑loss snubber circuits to achieve turn‑off, which increases cabinet volume and system stray inductance, limiting reliability at high‑power scenarios.

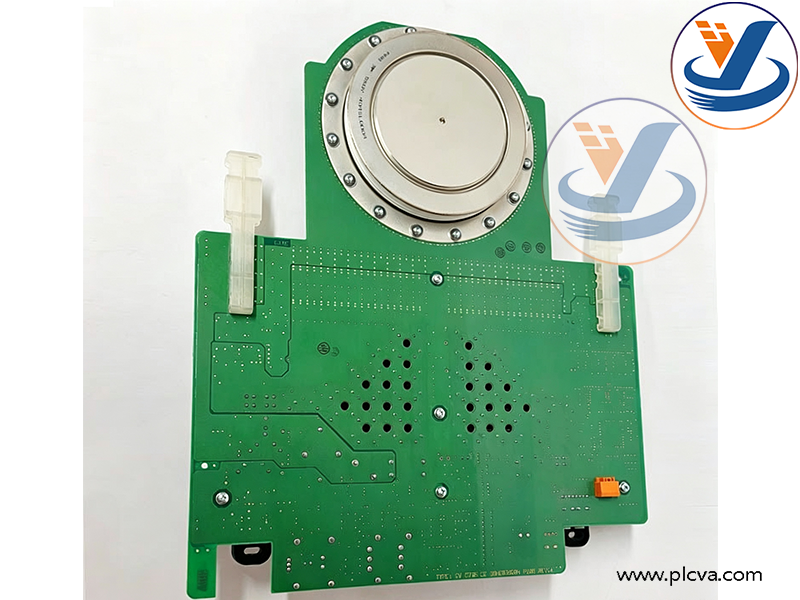

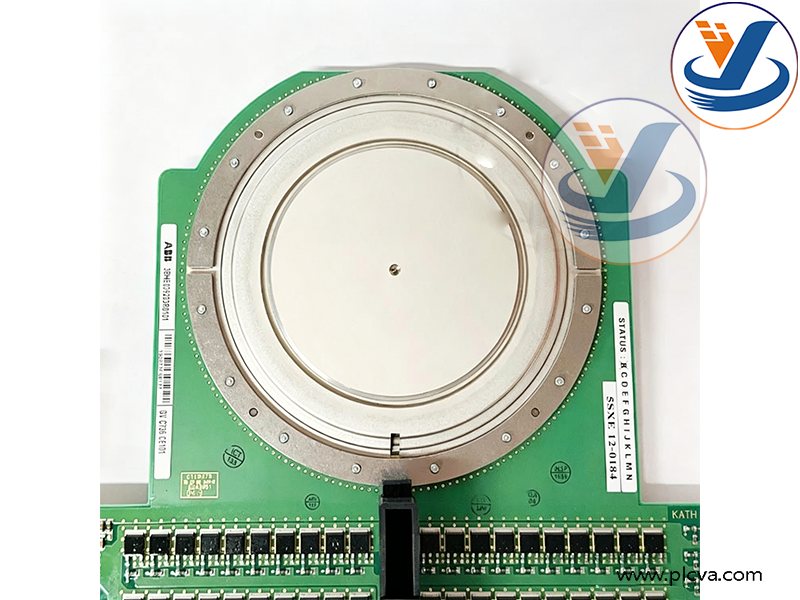

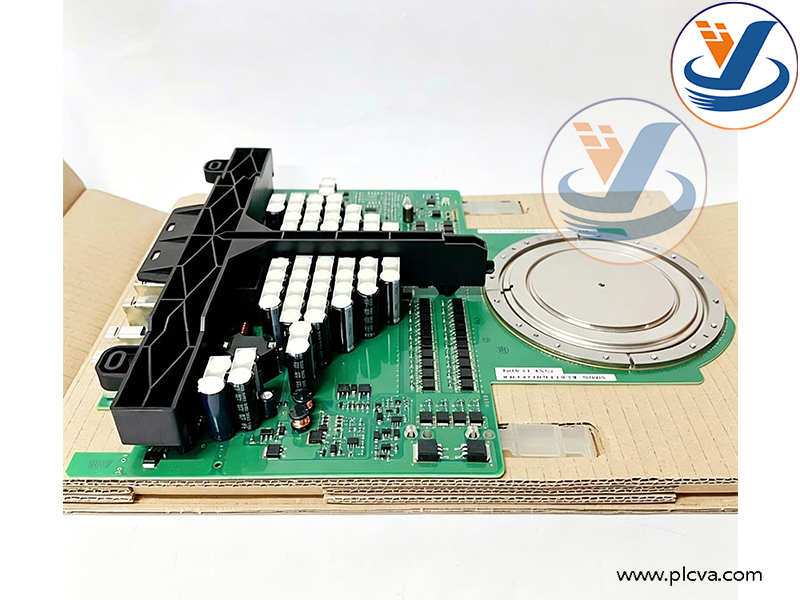

ABB 5SHY4045L0004 Asymmetric IGCT Module

This 5SHY4045L0004 is a high‑voltage asymmetric IGCT product in ABB’s mature power‑semiconductor portfolio. It adopts press‑pack (hockey‑puck) ceramic metal sealed package. The matched assembly 3BHB021400R0002 integrates hard gate‑commutation drive circuit, optical‑fiber signal transceiver and fault detection function. It eliminates bulky external snubber circuits, supports series‑connection for high‑voltage stacks, and is widely adopted inside ABB ACS6000 medium‑voltage converter platform and other third‑party high‑power converter equipment.

Press‑pack package supports failure‑to‑short mode, which is critical safety feature for series‑connected semiconductor stacks in power‑grid‑grade equipment. Mainly water‑cooled for continuous heavy‑load industrial operation.

ABB 5SHY4045L0004 Asymmetric IGCT Module

2. Core Functions

1. Snubber‑less high‑power switching: Realizes controlled turn‑ON and forced active turn‑OFF for medium‑voltage high‑current circuits via optical‑fiber trigger signals; no large‑size snubber circuit is required, reducing system volume and power loss.More products: www.plcva.com
2. AC‑DC / DC‑AC power conversion: Acts as core power switch inside rectifiers and inverters, converting AC power to DC power or DC power to variable‑frequency adjustable‑voltage AC output. Asymmetric structure focuses on forward high‑voltage blocking for converter stack application.
3. Precise power & frequency regulation: Controls output power magnitude and phase by adjusting trigger timing; supports switching frequency up to several kHz; features low on‑state voltage drop for high‑efficiency large‑current operation.
4. Built‑in monitoring & protection: Gate‑drive unit (3BHB021400R0002) monitors gate status, overcurrent and abnormal operation, outputs fault signal via optical fiber for system interlock protection. Press‑pack structure realizes excellent thermal cycling performance for long‑term stable running.

ABB 5SHY4045L0004 Asymmetric IGCT Module

Key typical electrical baseline parameters:

• Repetitive peak off‑state voltage: 4500 V
• Continuous on‑state current: 4000 A class (water‑cooled condition)
• Surge current capacity: 16 kA /10 ms
• Control interface: Optical fiber trigger, high noise immunity
• Cooling requirement: Primary liquid water‑cooling
• Junction operating temperature: −40 ℃ ~ +125 ℃

3. Main Applications & Usages

This IGCT assembled unit targets megawatt‑level medium‑voltage power‑electronic systems, typical application scenarios:

1. Medium‑voltage variable‑frequency drives (MVD): Core power device for ABB ACS6000 series converters. Used for large‑capacity MV motor drives in metallurgy rolling mills, mine hoists, large fans & pumps, cement main motors, heavy‑industry compressors.
2. STATCOM / SVC power‑grid compensation: Static synchronous compensator for power substations and heavy‑load industrial plants, performing reactive‑power compensation, grid‑voltage stabilization and harmonic suppression.
3. HVDC and power‑grid energy conversion: Power‑conversion stacks for high‑voltage direct‑current transmission and large‑scale grid‑connected energy‑storage converters.
4. Metallurgical heavy‑duty power supplies: High‑power rectifier/inverter for electrolysis, smelting and DC heavy‑current power‑supply equipment.
5. Large‑scale renewable energy conversion: Grid‑tied converters for large wind farms and solar power stations.

ABB 5SHY4045L0004 Asymmetric IGCT Module
