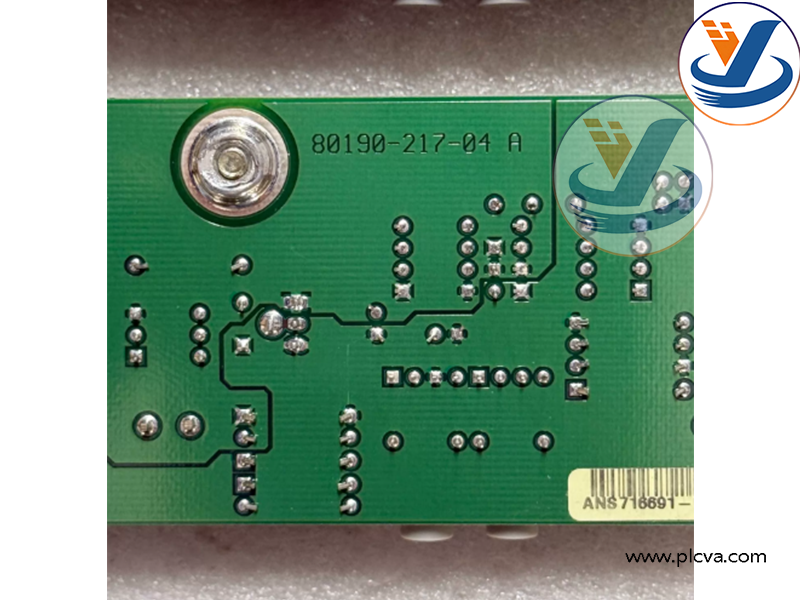

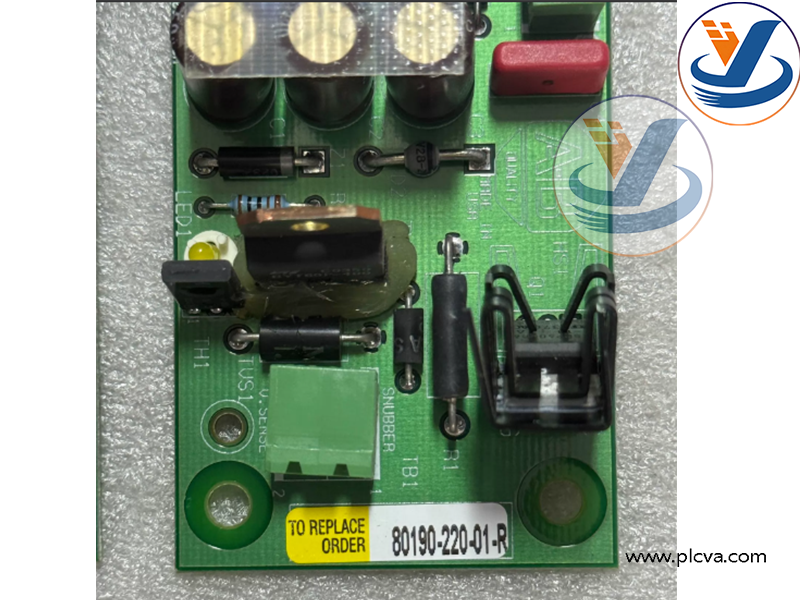

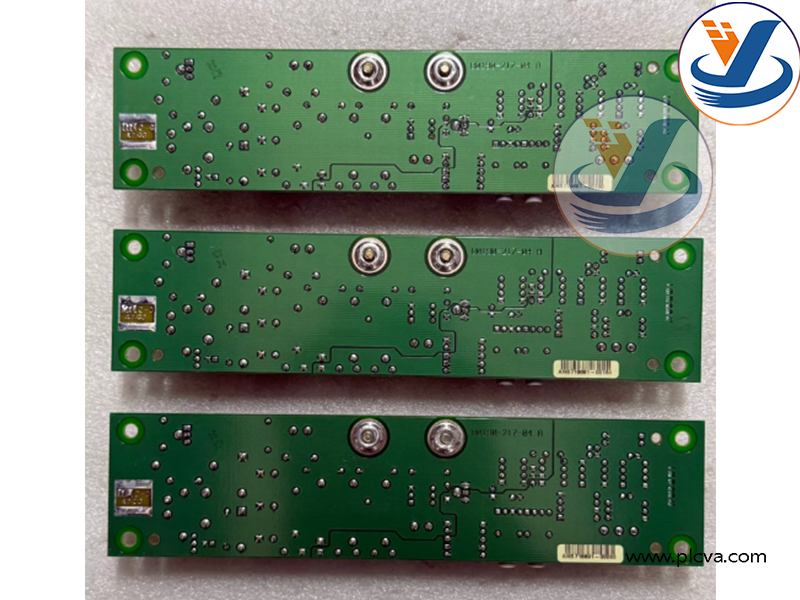

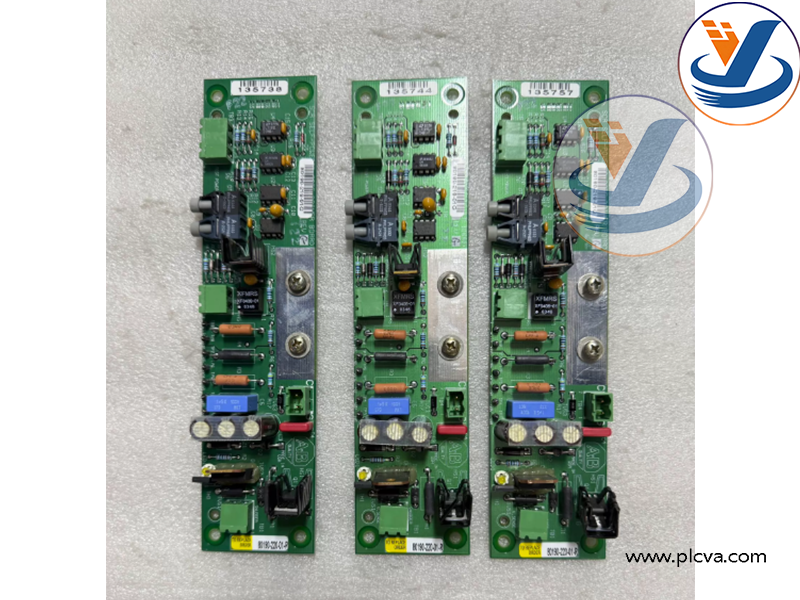

Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Product Background
80190‑220‑01‑R is a dedicated gate‑drive control circuit board for Allen‑Bradley PowerFlex 7000 medium‑voltage high‑voltage inverters (2.3kV‑11kV). It is a critical internal component mounted inside the high‑voltage drive cabinet, interfacing between the main drive controller and the SCR/IGCT power semiconductor modules. The original manufacturer has marked this part as Discontinued (EOL). Only original surplus stock, refurbished units or aftermarket compatible spares are available on the industrial spare‑parts market. It is not a standalone device; it must be installed inside PowerFlex 7000 drive chassis to work.
Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
Main Functions
- SCR/IGCT Gate‑drive pulse generation Generates accurate firing trigger pulses for power thyristor / IGCT devices, controls turn‑on and turn‑off timing of high‑voltage power semiconductors.
- Pulse signal isolation & power conditioning Provides electrical isolation between low‑voltage control logic and high‑power main circuit; conditions drive pulses to guarantee reliable switching of power devices.More products: www.plcva.com
- Hardware fault monitoring & protection logic Detects gate‑drive faults, pulse‑loss, over‑current and abnormal status of power semiconductors. Sends fault alarm signals to main system controller to trigger drive shutdown protection when anomalies occur.
- Feedback signal collection Receives status feedback signals from power‑semiconductor modules, feeds real‑time operating status back to the main control unit of the VFD.
- Self‑diagnosis function Continuous internal circuit health check; reports hardware‑level failures to the drive system for fault‑code diagnosis and maintenance.
- On‑board auxiliary power conversion Integrates local auxiliary power conversion for the gate‑drive circuit, supplying working power for the pulse‑drive circuits.
Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
Applications & Usage
This board is exclusively used inside Allen‑Bradley PowerFlex 7000 medium‑voltage high‑voltage variable‑frequency drives. Typical end‑user industries & equipment:
- Power‑plant auxiliary large fans, boiler feed‑water pumps
- Petrochemical, metallurgy, mining, water‑treatment heavy‑duty large‑motor systems
- Large‑capacity medium‑voltage motor speed‑regulation applications (2.3‑11kV)
Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
Allen‑Bradley 80190‑220‑01‑R Gate‑Driver Control Board
