A-B Allen-Bradley

Product Background

80190‑220‑01‑R is a dedicated self‑powered SCR gate‑driver circuit board for Allen‑Bradley PowerFlex 7000 medium‑voltage variable‑frequency drives (2.3 kV‑6.6 kV). It belongs to the SPGDB (Self‑Powered Gate‑Driver Board) family, installed inside the medium‑voltage drive power‑cage cabinet, directly connected to high‑power SCR thyristor power devicesManualsLib. This board adopts self‑powered topology: it harvests operating power directly from the main‑circuit SCR voltage, without relying on external low‑voltage auxiliary power supply. Rockwell Automation has marked this part as Discontinued (EOL). Only original surplus stock, refurbished units or aftermarket compatible spares are available on the industrial spare‑parts market. It is not a standalone device; it must be mounted inside PowerFlex 7000 drive chassis to operate, paired with SCR power thyristors and fiber‑optic communication links to the main drive controllerManualsLib.More products: www.plcva.com

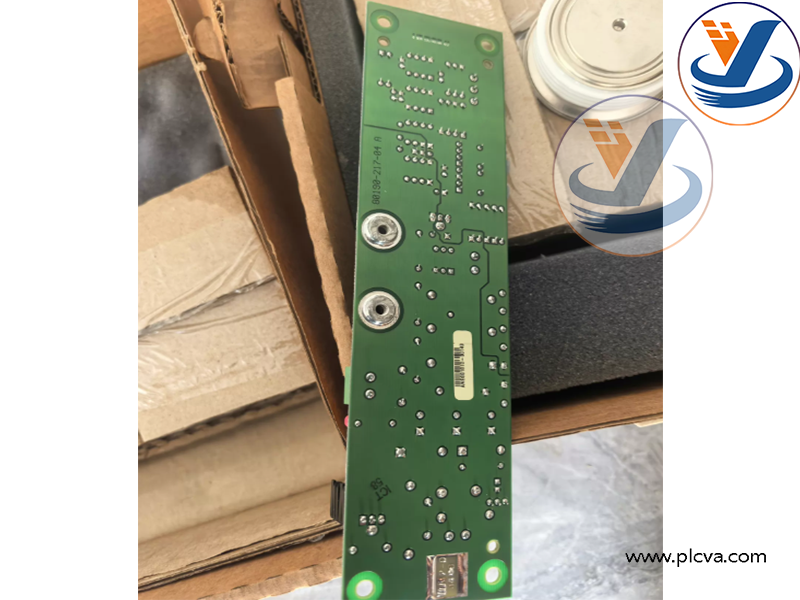

Allen‑Bradley 80190‑220‑01‑R

Main Functions

1. Self‑powered SCR firing pulse generation Generates accurate gate‑trigger pulses to turn on/off high‑power SCR thyristors. It draws working power directly from the SCR main‑circuit voltage, maintaining normal drive operation even under grid voltage sags, avoiding drive failure caused by auxiliary‑power loss.
2. Fiber‑optic signal interface Receives digital control commands from the main drive controller via fiber‑optic cables; transmits real‑time SCR status and fault diagnostic signals back to the control system through optical‑fiber communication, achieving complete electrical isolation between low‑voltage control logic and high‑voltage power circuit, suppressing strong electromagnetic interferenceManualsLib.
3. Hardware fault detection & protection logic Monitors SCR gate‑drive status, pulse‑loss, over‑current, abnormal device conditions. When faults are detected, it sends fault‑alarm signals to the main controller, triggering drive shutdown protection to prevent SCR device breakdown and bridge‑arm short‑circuit catastrophic damage.
4. On‑board status self‑diagnosis Continuous internal circuit health check; detects hardware failure of the gate‑driver board itself, and uploads fault codes for maintenance diagnosis.
5. Gate‑cathode drive output Provides dedicated gate‑cathode drive output terminals to connect directly to the SCR thyristor power module, delivering reliable trigger drive to power semiconductors.

Allen‑Bradley 80190‑220‑01‑R

Applications & Usage

This board is exclusively applied inside Allen‑Bradley PowerFlex 7000 medium‑voltage VFDs (2.3‑6.6 kV), as a core spare part for SCR‑based power‑conversion units. Typical end‑user industries and equipment:

• Power‑plant auxiliary equipment: large induced‑draft fans, boiler feed‑water pumps
• Petrochemical, metallurgy, mining, cement, water‑treatment heavy‑duty medium‑voltage motor speed‑regulation systems
• Large‑capacity industrial process with 2.3‑6.6 kV medium‑voltage AC motor variable‑speed control
