SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Product Background
DOP11A‑40 is a member of the DOP11A series Drive Operator Panels, SEW‑EURODRIVE’s legacy industrial HMI platform, designed specifically for SEW drive systems and general industrial automation control cabinets.More products: www.plcva.com
It is a keypad‑based color graphic operator terminal, programmed via HMI‑Builder software. It supports simultaneous communication with SEW inverters and third‑party PLCs through dual serial ports, plus optional expansion field‑bus cards (Ethernet, Profibus etc.) via two expansion slotseero.
This model is Discontinued (EOL) by SEW‑EURODRIVE; only surplus original stock, refurbished or aftermarket spare units are available in industrial spare‑parts market. Its successor is the modern DOP11C series operator panelsSEW-EURODR…. It is a panel‑mount standalone HMI device; it needs to be programmed before field use.
SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
Main Functions
- Graphic visualization & operator control 5.7‑inch 256‑color backlit LCD screen; membrane keypad with navigation keys, numeric keypad and 16 function keys; 16 dual‑color status LEDs. Operators can view machine status, set parameters, and issue control commands directly on‑siteManualsLib.
- Dual‑channel simultaneous communication Dual serial interfaces RS‑232 / RS‑422, can communicate concurrently with SEW frequency inverters and external PLC controllers. Two expansion slots for optional field‑bus modules (Ethernet, Profibus‑DP) for plant‑level network connectionManualsLib.
- Alarm & event management Real‑time alarm display, fault message logging, historical alarm record storage, for equipment fault diagnosis and maintenance.
- Recipe management Store multiple production recipe sets, support quick switching of process parameters for different production batches.
SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
- Multi‑level user password security Multi‑level authority management, restrict parameter modification and operation rights to prevent unauthorized operation.
- Data logging & process monitoring Display real‑time process values, trend curves; record operational data for production monitoring.
- Programmable project configuration Configured by HMI‑Builder software; supports custom screens, buttons, indicators and logic for machine‑specific application projects; 400 kB Flash‑EEPROM for storing user application projects.

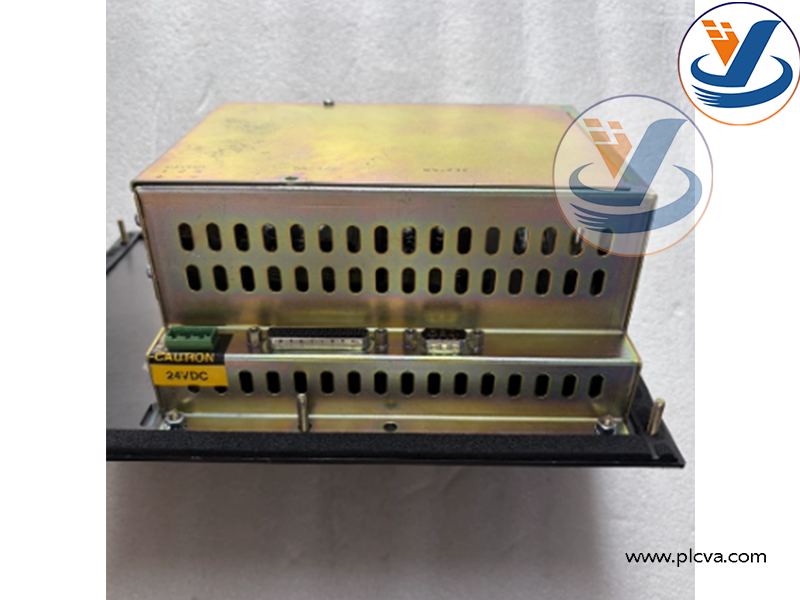

- Robust industrial environmental performance Front face IP65 / NEMA4X, rear IP20; wide operating temperature range 0‑50 °C; 24 VDC power supply, suitable for industrial cabinet installation.
SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
Applications & Usage
DOP11A‑40 is an industrial operator panel mainly used for monitoring and controlling SEW‑EURODRIVE drive systems and general automation machinery.
Typical end‑user industries and scenarios:
- Conveyor systems, material‑handling equipment
- Packaging machinery, textile machinery
- Printing, food‑processing production lines
- Metal processing, hoisting & lifting equipment
- General industrial automation cabinets with SEW inverters and PLC control
It is used for new‑project installation, and also as replacement spare for existing DOP11A‑40 panels in legacy automation systems.
SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
SEW‑EURODRIVE DOP11A‑40 Drive Operator Panel
