Product Background

E124.1S5 U1 belongs to Braun’s classic E124 series speed‑direction monitoring platform, also known as “Braun‑Card” for rotating‑machinery safety protection. It is designed for safety‑critical speed measurement and overspeed protection for turbines, generators, large rotating machinery. It receives pulse signals from Braun A5S‑series Hall‑effect speed sensors, calculates rotational speed and rotation direction, and outputs alarm/trip relay signals for machine safety interlock.More products: www.plcva.com

This is a legacy industrial safety module. Original Braun production is Discontinued (EOL). Only original surplus stock, refurbished or aftermarket spare units are available in industrial spare‑parts market. It is DIN‑rail mounted, standalone monitoring unit, works with external speed sensors, not a controller itself.

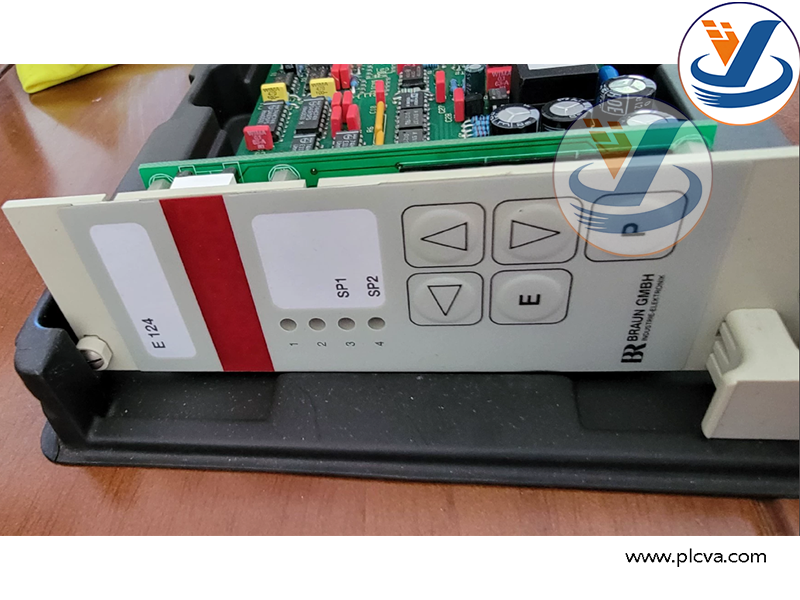

BRAUN GMBH E124.1S5 U1 (D‑71334)

Main Functions

1. Speed and rotation‑direction measurement Accept pulse input from Braun A5S‑series speed sensors; accurately measure rotational speed (RPM) and detect forward/reverse rotation direction. High‑precision frequency‑to‑speed conversion, supports wide speed‑range measurement.
2. Configurable overspeed & underspeed alarm/trip thresholds User‑programmable setpoints for overspeed and underspeed limits. When speed exceeds or falls below thresholds, triggers relay output for alarm or emergency trip shutdown.
3. Relay output for safety interlock Built‑in safety relay contacts for overspeed, underspeed, direction‑fault and sensor‑fault signals. Hard‑wired output to machine control system for safety shutdown protection of rotating equipment.
4. Sensor fault diagnosis Continuous monitoring of speed‑sensor signal health; detects sensor open‑circuit, short‑circuit, signal loss, and reports fault via relay output, preventing false speed readings.
5. Isolated analog output (4‑20 mA) Isolated 4‑20 mA analog output proportional to measured rotational speed, sends real‑time speed value to DCS/PLC system for remote monitoring and data logging.
6. 24 VDC sensor supply output (U1 version) Provides 24 VDC power to feed connected Braun speed sensors, simplifies field‑wiring.
7. Hardware self‑diagnosis Continuous internal circuit self‑check; detects hardware failure and forces safety‑relay output to safe state to avoid unsafe‑fault conditions.
8. Industrial‑grade environmental design DIN‑rail mounting, wide operating temperature range, robust against vibration and electromagnetic interference in power‑plant and heavy‑industry environments.

BRAUN GMBH E124.1S5 U1 (D‑71334)

Applications & Usage

E124.1S5 U1 is a safety‑critical speed‑direction monitor for rotating machinery. Typical end‑user industries and scenarios:

• Power generation: steam turbines, gas turbines, turbo‑generators
• Oil & gas: gas compressors, turbine‑driven pumps
• Petrochemical, cement, mining heavy‑duty rotating equipment
• Large‑size industrial turbines and generator sets

It is used for overspeed protection, speed monitoring and rotation‑direction detection. It is widely applied as replacement spare for legacy Braun speed‑monitoring systems.
