Product Background

DOP‑B10S615 is a representative model of Delta’s DOP‑B series industrial HMI, launched for general‑purpose industrial automation applications. It is a 10.1‑inch widescreen touch‑panel operator terminal, designed for local machine monitoring and parameter operation. It can communicate with Delta PLC, inverters, servo drives, as well as many third‑party controllers via serial ports. Delta has officially discontinued the DOP‑B series in June 2019; the recommended successor is DOP‑108ISDelta. Only original surplus stock, refurbished or aftermarket spare units are available in the industrial spare‑parts market. It is a panel‑mount standalone HMI device; user projects must be downloaded via DOPSoft before field operationDelta.

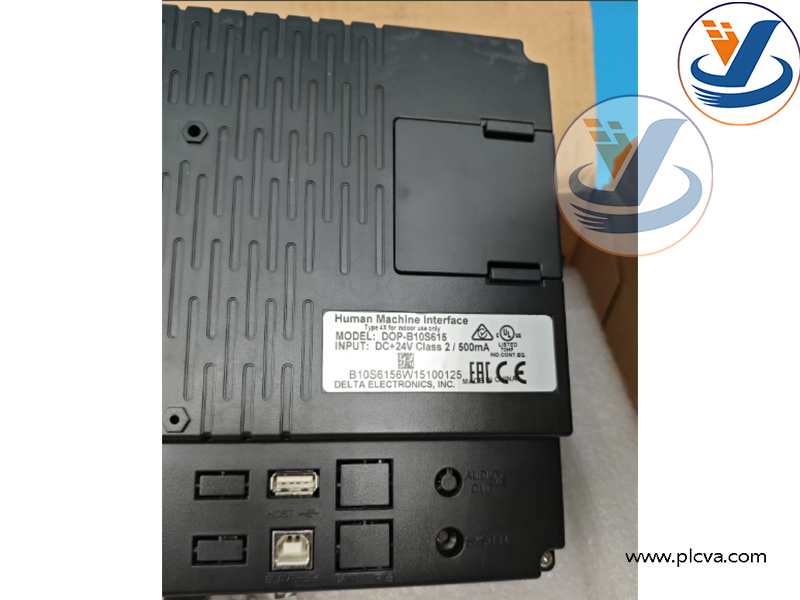

DOP‑B10S615 10.1‑inch Widescreen TFT Touch‑Panel HMI

Main Functions

1. Graphic touch‑screen operation & visualization 10.1‑inch resistive touch screen; supports custom‑built screens, buttons, bar graphs, trend curves and alarm pop‑ups. Operators can view real‑time process data and issue control commands by touching the screen.
2. Multi‑port serial communication Three COM ports: COM1(RS‑232), COM2/COM3 (RS‑232/422/485). It can connect to Delta PLC, inverters, servo systems and third‑party controllers, reading and writing process variables and device status.More products: www.plcva.com
3. Alarm & event logging Real‑time alarm display, historical fault record storage, supports alarm output and fault trace for equipment maintenance.
4. Recipe management Store multiple sets of production recipe parameters, support one‑click switching for different production batches.
5. Peripheral expansion capability USB Host port supports external USB flash drive, printer, mouse and keyboard; SD‑card slot for project backup, data logging and firmware update.
6. Multi‑level password authority management Multi‑level user permission settings, restrict parameter modification and operation access to prevent mis‑operation.
7. Data logging & trend display Collect and display real‑time process variables, draw trend curves for production condition monitoring.
8. Industrial‑grade environmental performance Front‑face IP65 protection rating; wide‑temperature operation; panel‑mount installation; supports horizontal and vertical screen rotationDelta.

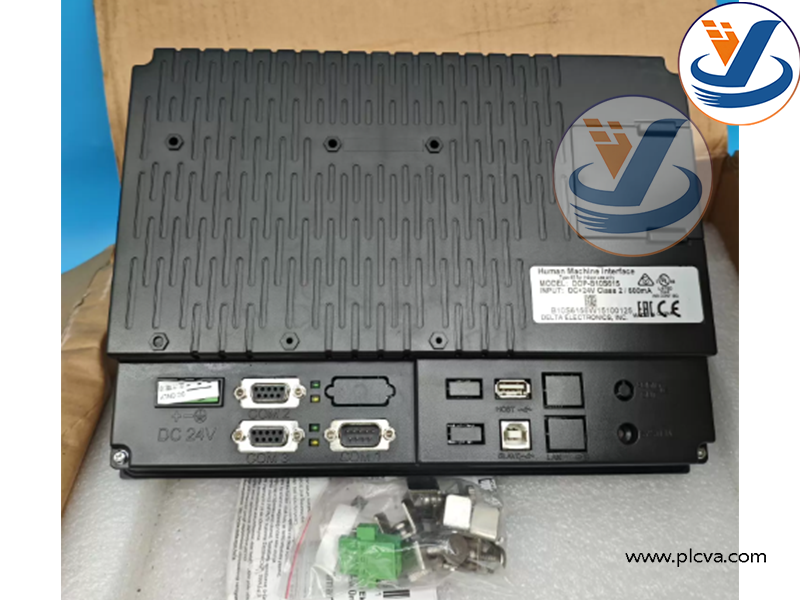

DOP‑B10S615 10.1‑inch Widescreen TFT Touch‑Panel HMI

Applications & Usage

DOP‑B10S615 is a general‑purpose industrial touch‑screen HMI for local monitoring and operation of automation equipment. Typical end‑user industries and scenarios:

• Packaging machinery, textile equipment
• Conveying systems, material‑handling machinery
• Food & beverage processing lines
• Injection molding machines, printing machinery
• Water‑treatment equipment, small‑and‑medium‑size factory automation control cabinets

It is used for new‑project installation, and also as replacement spare for legacy DOP‑B10S615 panels in existing automation systems.

DOP‑B10S615 10.1‑inch Widescreen TFT Touch‑Panel HMI
