1.Function

This is a multi-point signal interface module for DCS system.

Serve as the signal bridge between field instruments and DCS controller, receive and transmit analog / digital process signals.www.plcva.com
Realize signal isolation, filtering, signal conditioning and A/D or D/A conversion for field I/O signals.
Collect field measurement signals including 4-20mA current, DC voltage, thermocouple and RTD resistance signals.
Transmit control output signals from DCS controller to field actuators.
Support rack bus communication, exchange data with DCS CPU module via backplane bus.
Built-in circuit diagnosis function, detect channel fault, wiring break and module abnormality, feed fault status back to DCS HMI for alarm display.
Adopt hot-swappable rack installation, allow replacement without system shutdown for online maintenance.
High anti-interference design, suppress industrial EMI noise to guarantee stable signal acquisition in harsh plant environment.

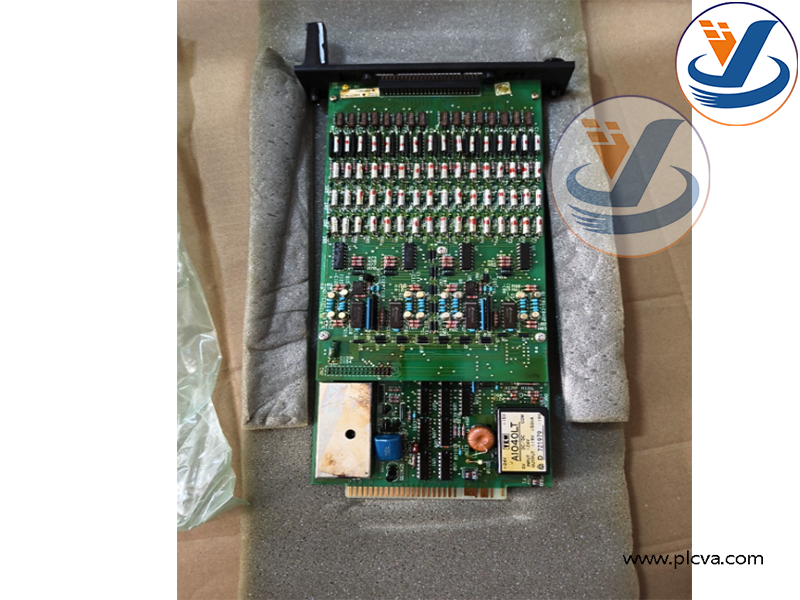

Yokogawa MX6A DCS Interface Card Physical photo

Yokogawa MX6A DCS Interface Card Physical photo

Deployed in Yokogawa CENTUM DCS control racks of continuous process industries:

Process signal acquisition: Collect real-time field parameters such as temperature, pressure, flow, liquid level from transmitters and sensors.www.plcva.com
Control signal output: Send calculated control commands from DCS controller to valves and other field actuators.
Signal isolation & protection: Isolate field loop and DCS internal circuit, prevent surge and overvoltage from damaging main control unit.
System fault monitoring: Detect I/O channel failure, upload fault information to operator station for maintenance reminder.
Closed-loop process control: Provide reliable I/O interface to realize continuous closed-loop regulation for production process.
Data visualization: Transmit measured process variables to HMI for real-time display, historical trend recording and report generation.
