ABB Sweden developed the SYNPOL‑D automation platform targeting marine power‑generation and industrial generator control in the 1990s. CMA120 is the dedicated basic operator control panel for this platform, designed to bridge simple manual starters and full‑scale PLC systems for generator‑set supervision.More products: www.plcva.com

Hardware highlights:

• Integrated membrane keypad, multi‑digit digital display and status LEDs; built‑in embedded control logic processor
• Power supply: 24 VDC, rugged vibration‑resistant housing, complies with major marine classification society requirements (DNV, ABS, LR) for ship‑board harsh environments
• Equipped with multi‑channel I/O and serial communication ports; panel‑mount installation, front‑panel operator access
• Operating temperature:‑20 °C ~ +60 °C, heavy‑duty anti‑vibration and anti‑humidity design for shipboard use

Current Status This hardware is End‑of‑Life (EOL), discontinued by ABB. No brand‑new original production. The market mainly supplies refurbished, repaired or used spare units for maintenance and replacement of existing marine and industrial SYNPOL‑D generator control systems.

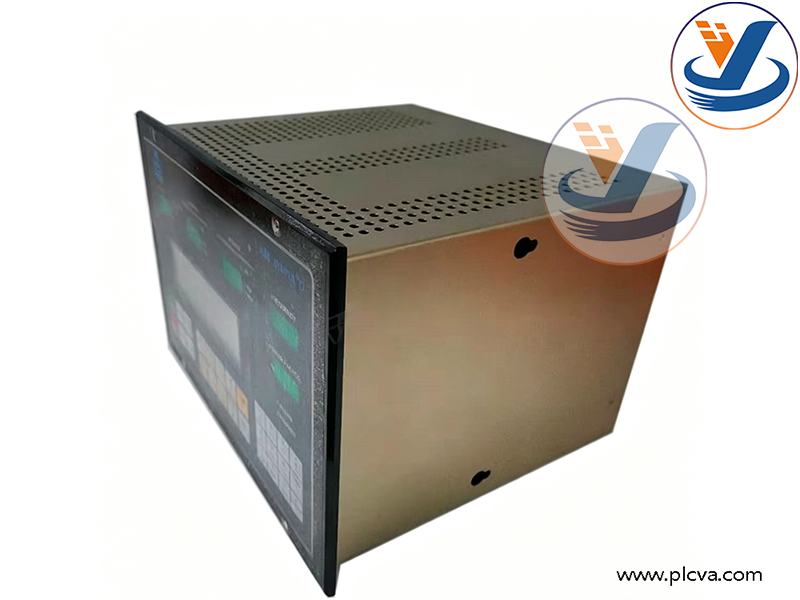

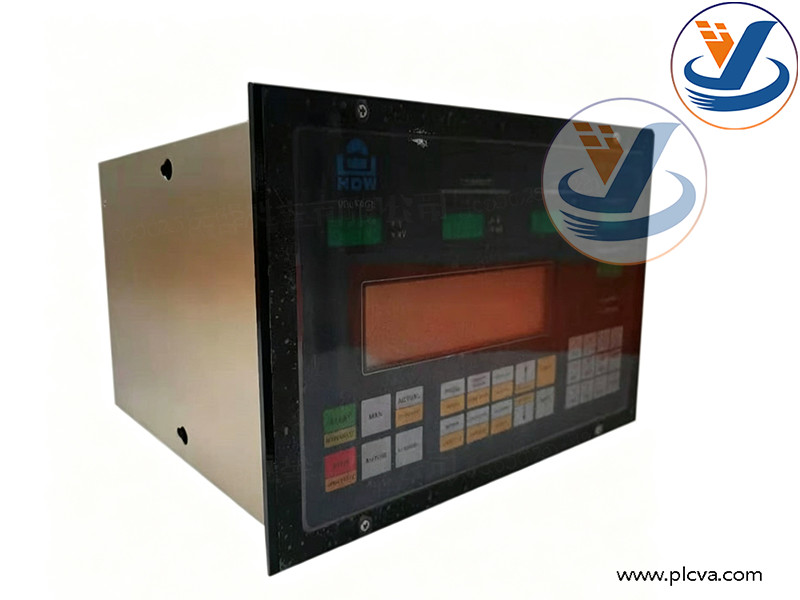

ABB SYNPOL‑D CMA120 Basic Controller Panel Unit, Order‑No. 3DDE300400

Core Functions

Note: This is an integrated controller‑HMI panel. It is not a DCS CPU board, not a power‑supply card, not a drive main‑control board. It provides local operator‑level generator monitoring and basic control logic.

1. Local generator monitoring & parameter display Real‑time display of generator key parameters: voltage, current, power, frequency, power‑factor, alarm and fault status. Visual digital readouts and status indicator LEDs for on‑site operator observation.
2. Basic generator control & sequence logic Embedded control logic supports local start/stop, reset, parameter setting and simple sequencing for generator sets. It serves as local operator interface for generator‑set management, without requiring external PLC for basic operation.
3. Signal acquisition & I/O processing Processes digital and analog field signals from generator auxiliary circuits; handles digital inputs, relay outputs for alarm and interlock signals. Performs signal conditioning for generator status feedback.
4. Alarm & fault management Detects generator abnormal conditions, triggers local visual and audible alarms, stores fault event information. Sends fault signals to higher‑level monitoring system via communication port.
5. System communication Equipped with RS‑485 serial communication port for data exchange with other SYNPOL‑D modules, DCS or ship‑monitoring systems. Supports Modbus‑RTU for plant‑level data upload.
6. Operator‑friendly local operation Membrane keypad for on‑site manual operation, configuration and parameter adjustment; panel‑mount installation for control‑cabinet front‑face operation.

ABB SYNPOL‑D CMA120 Basic Controller Panel Unit, Order‑No. 3DDE300400

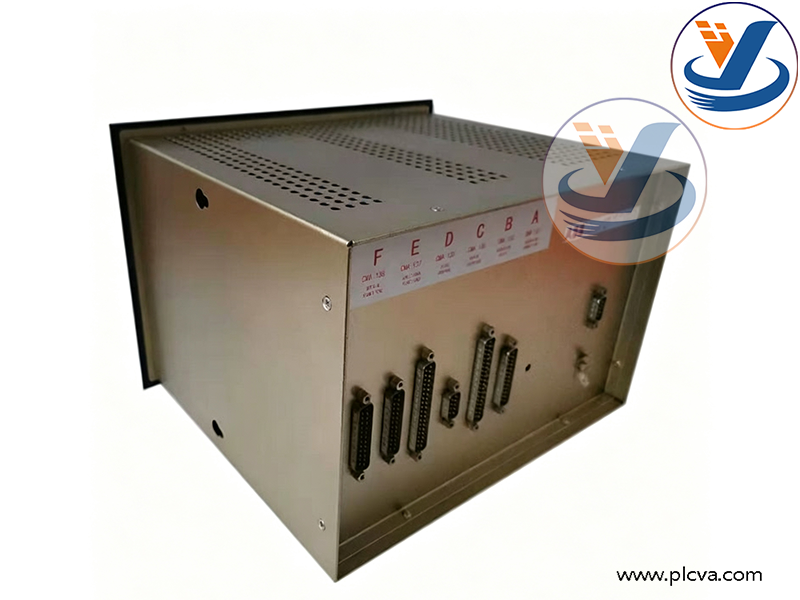

Hardware Interfaces

• 24 VDC power‑supply input terminals
• Multi‑channel digital input / relay output terminals for generator‑set field signals
• RS‑485 serial communication port for system‑bus connection
• Front‑panel membrane keypad, digital display and status indicator LEDs
• Panel‑mount mechanical fixing for control‑cabinet installation

ABB SYNPOL‑D CMA120 Basic Controller Panel Unit, Order‑No. 3DDE300400

Main Applications & Deployment Sites

Core Application: Local operator control and monitoring panel for ABB SYNPOL‑D generator‑set automation, mainly for marine and industrial generator supervision.

1. Marine vessels (Ship‑board power systems) The most typical application. Used for marine diesel generator sets on cargo ships, offshore vessels, cruise ships. Realizes local monitoring, start‑stop control and fault alarm for ship‑board main and auxiliary generators, meets marine classification‑society certification requirements.
2. Industrial captive power plants & CHP On‑site control for factory‑owned diesel / gas generator sets, local operator interface for small‑to‑medium generator units.
3. Land‑based power‑generation auxiliary control Small‑scale power‑station generator‑set local control panels, for simple generator‑monitoring scenarios.
4. Offshore platform power systems Offshore oil‑gas platform auxiliary generator‑set local control and monitoring.

ABB SYNPOL‑D CMA120 Basic Controller Panel Unit, Order‑No. 3DDE300400

Key distinction summary for reference:

• CMA120: SYNPOL‑D integrated marine basic controller‑HMI panel, generator local operation & monitoring.
• CMA121: SYNPOL‑D rack power‑supply card, provides 24 VDC for system subrack.
• 216VC62a: Generator relay‑protection CPU board, fault‑protection logic.
• UNITROL 1020: Generator excitation AVR, voltage and excitation regulation.
• DSAI130A: DCS analog‑input I/O board, field‑signal acquisition.
• UFC911B101: Medium‑voltage‑drive main‑control CPU board.
• KU C720 AE01: ACS1000 drive EPS power‑supply PCB board.
