Core Functions

REF610 is dedicated for medium‑voltage feeder circuit protection, it receives signals from CT/VT current‑voltage transformers, implements fault detection, trips breakers and provides measurement & supervision for distribution linesabb-drive…..

1. Comprehensive over‑current & earth‑fault protection

• Three‑stage phase over‑current protection: instantaneous, definite‑time, IDMT inverse‑time characteristic, for short‑circuit and overload faults.
• Two‑stage non‑directional earth‑fault (ground‑fault) protection, for cable and overhead line ground fault detectionabb-drive…..
• Cable thermal overload protection, phase‑discontinuity protection for broken‑conductor condition.

2. Voltage & frequency supervision Over‑voltage / under‑voltage protection, over‑frequency / under‑frequency monitoring for distribution network abnormal voltage and frequency conditions.
3. Optional auxiliary functions

• Optional arc‑flash protection: detects internal switchgear arc faults, fast tripping to limit equipment damage and protect personnel safetyabb-drive…..
• Automatic reclosing function for overhead line transient faults, to restore power supply automatically after temporary fault clearanceabb-drive…..

4. Circuit‑breaker control & interlock Local and remote breaker trip/close control; programmable digital inputs and relay outputs for switchgear interlock logic; breaker status monitoringManualsLib.
5. Measurement, event recording & fault recording Real‑time measurement of phase current, voltage, power, frequency; stores event logs and fault disturbance records for fault analysis. Front‑panel LCD display and LED indicators for local status and fault indication.
6. Multi‑protocol communication Supports IEC 61850, Modbus‑RTU, DNP3, IEC 60870‑5‑103; connects to substation SCADA, DCS and plant control systems for remote monitoring and setting modification.

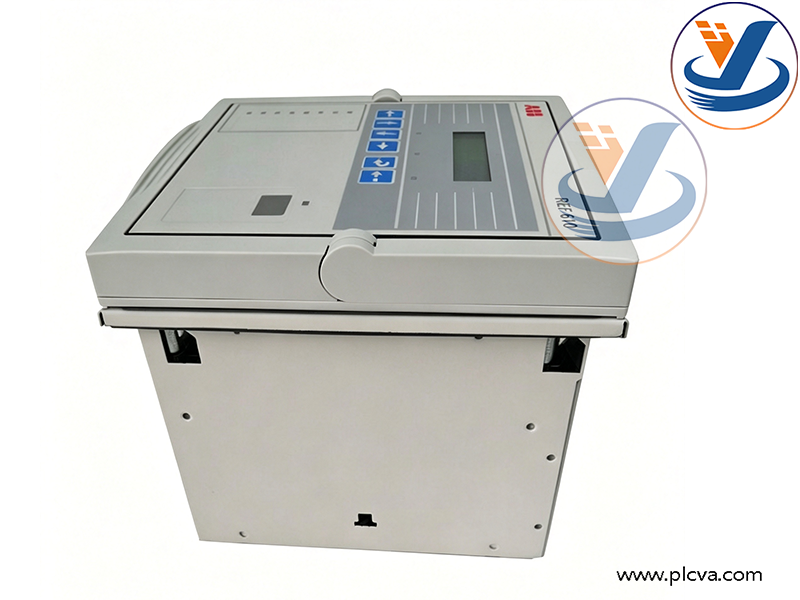

ABB Relion 610‑series REF610 Numerical Feeder Protection & Control IED

Hardware Interfaces

• CT/VT current‑voltage transformer input terminals
• Digital input / relay output terminals for breaker control and interlock signals
• Communication ports for substation automation
• Front‑panel LCD display, operation keypad and status LEDs
• Withdrawable plug‑in base for medium‑voltage switchgear cabinet installationManualsLib

Main Applications & Deployment Sites

Core Application: Protection, control, measurement and supervision for medium‑voltage distribution feeders (incoming and outgoing lines) in utility and industrial power distribution systems; also works as backup protection for motors, transformers and generatorseero.More products: www.plcva.com

1. Utility distribution substations Protection for 10 kV / 35 kV medium‑voltage feeders, overhead lines and cable outgoing circuits, distribution substation bay control.
2. Industrial power plants (thermal / hydro power stations) Auxiliary medium‑voltage distribution feeders, power‑plant internal distribution network protection, backup protection for auxiliary motors and transformers.
3. Oil‑gas, petrochemical, refineries Medium‑voltage power distribution feeders for process plants, protection for plant‑internal power supply lines.
4. Mining, cement, pulp‑paper, metallurgy heavy‑industry Factory‑internal medium‑voltage distribution system, feeder protection for plant power supply.
5. Marine & offshore platforms Marine‑qualified version for ship and offshore‑platform medium‑voltage distribution feeders, meets marine classification society requirementseero.
6. Water‑treatment & large‑scale industrial factories Medium‑voltage power‑distribution feeder protection for water‑supply plants and large‑scale manufacturing facilities.

ABB Relion 610‑series REF610 Numerical Feeder Protection & Control IED

Key distinction summary for reference:

• REF610: Medium‑voltage feeder protection IED, for distribution line short‑circuit / ground‑fault protection.
• REM620: Motor‑protection relay for medium‑large motor fault protection.
• PM‑series (AC800M): DCS main CPU controller for process control.
• 216VC62a: Generator relay‑protection CPU board for generator‑set fault protection.
• UNITROL 1020: Generator excitation AVR regulator.
• DSAI130A: DCS analog‑input I/O board for field‑signal acquisition.
• UFC911B101: Medium‑voltage‑drive main‑control CPU board.
