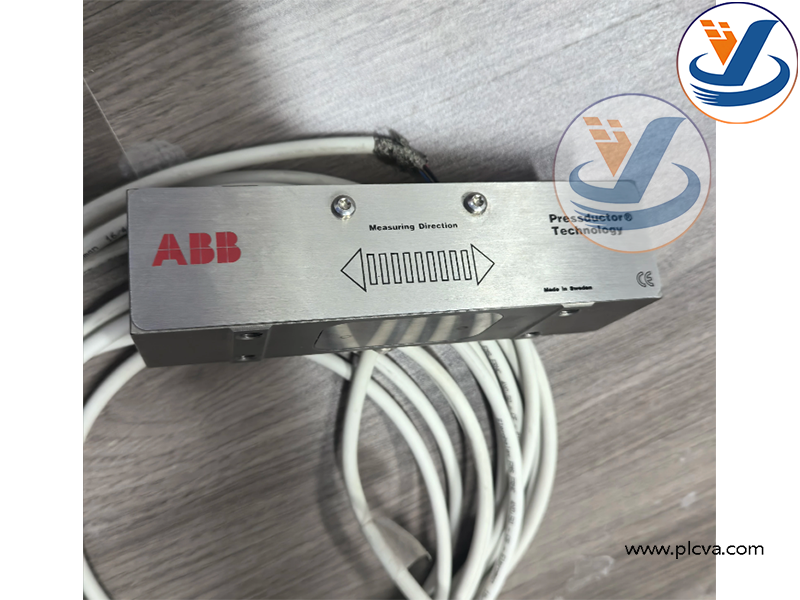

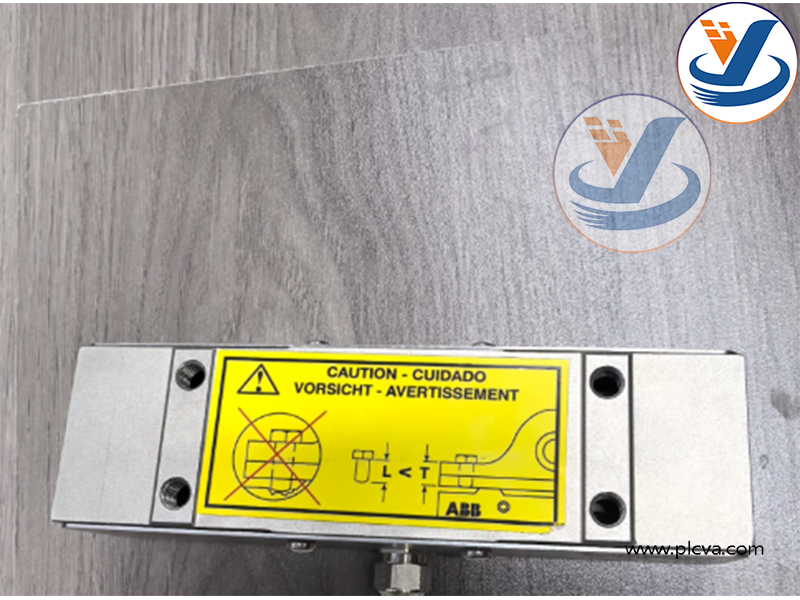

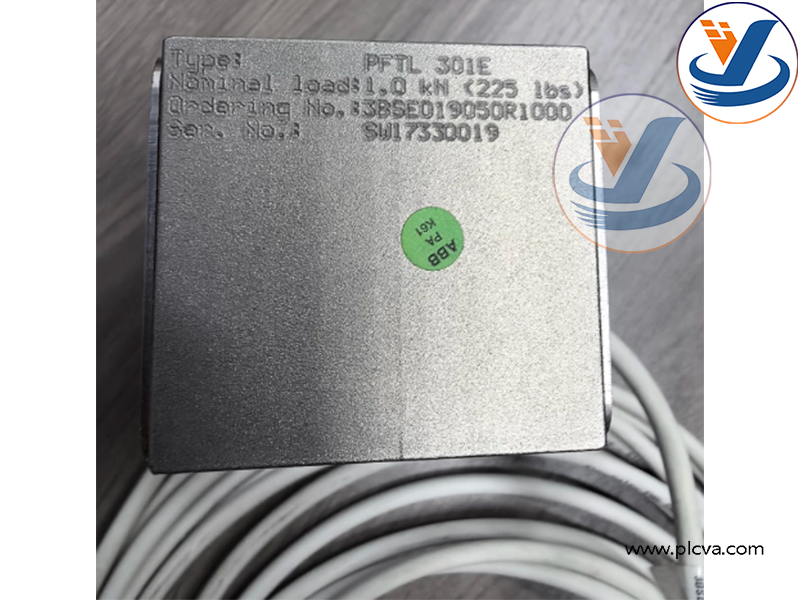

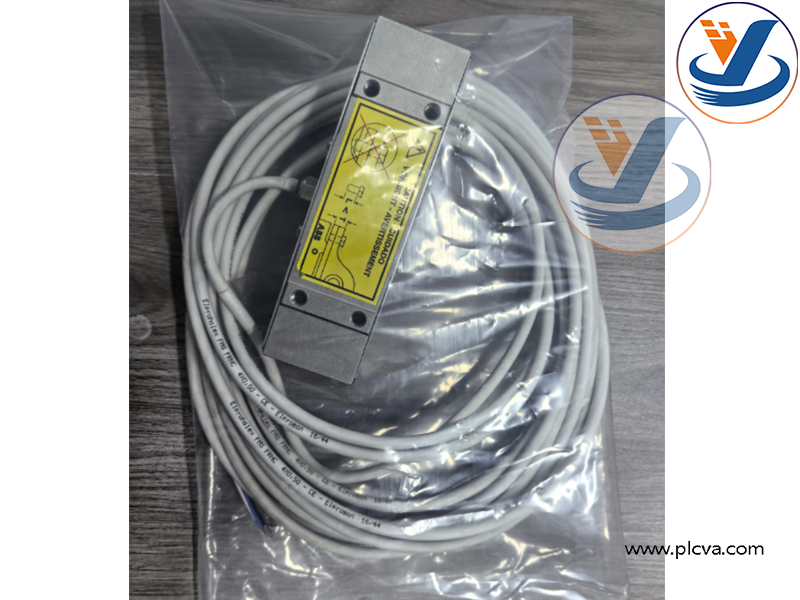

ABB PFTL301E Pressductor® PillowBlock Horizontal‑Force Web Tension Load Cell

Horizontal web‑tension measurement: Detects horizontal force exerted by running web material on the measuring roller, converts mechanical tension into proportional millivolt‑level sensor signal for external tension amplifier (e.g. PFEA111‑112).
High‑stable force sensing: Magneto‑elastic principle, minimal deflection (<0.13 mm), low drift, free from frequent recalibration, excellent repeatability (<±0.1 % FS).
Strong overload resistance: 300 % nominal‑load overload capacity on measuring direction; tolerates large transverse side‑force from misaligned web materialABB Group.
Harsh industrial environment adaptability: Rugged metal housing, IP65 protection grade, wide operating temperature range (−20 °C ~ +80 °C), anti‑vibration for continuous production line operation.
Standard pillow‑block mounting: Interchangeable installation dimension with conventional pillow‑block bearings; directly fitted at both ends of measuring roller shaft, easy mechanical retrofitting for existing machines.plcva.com
Signal output to upper‑level system: Sends raw tension signal to ABB tension amplifier, further converted to 4‑20 mA analog signal for PLC, DCS or closed‑loop tension controller.
Fault‑resistant performance: Insensitive to dust, moisture and mechanical wear; long service life for 24‑7 continuous production.plcva.com

ABB PFTL301E Pressductor® PillowBlock Horizontal‑Force Web Tension Load Cell

Paper & pulp industry: Paper machine, rewinder, slitter‑rewinder; monitor web tension to avoid paper breakage, wrinkling and uneven paper thickness.
Flexible film & foil processing: Plastic film, BOPP, PET, aluminum foil production lines for casting, stretching, slitting and winding processes.

ABB PFTL301E Pressductor® PillowBlock Horizontal‑Force Web Tension Load Cell

Printing & coating industry: Rotogravure printing, flexo printing, coating and laminating machines; maintain stable tension for printing registration and coating uniformity.
Textile & non‑woven machinery: Fabric, non‑woven fabric winding‑unwinding production lines, control web tension to prevent material stretching or creasing.plcva.com
Web‑converting general machinery: Slitting machine, rewinding machine, calendaring equipment; applied wherever continuous web material needs closed‑loop tension control.
System‑level role: Provide real‑time tension feedback for closed‑loop tension control system; reduce web break‑off, improve finished‑product quality, lower unplanned downtime.
