Main Functions

Connects to industrial host PC via standard PCI bus, serves as signal conversion gateway between PC controller and field‑side sensors and actuators. It implements multi‑channel signal acquisition and output for industrial measurement tasks.
Performs analog‑to‑digital (A/D) conversion for incoming analog sensor signals, and digital‑to‑analog (D/A) conversion for control output set‑points. It collects voltage signals from pressure, temperature, displacement and other analog transducers.
Provides multi‑channel digital input / output interfaces for TTL‑level logic signals. Reads status of limit switches, proximity sensors and trigger signals; outputs digital control signals to drive relays, indicator lights and interlock circuits.

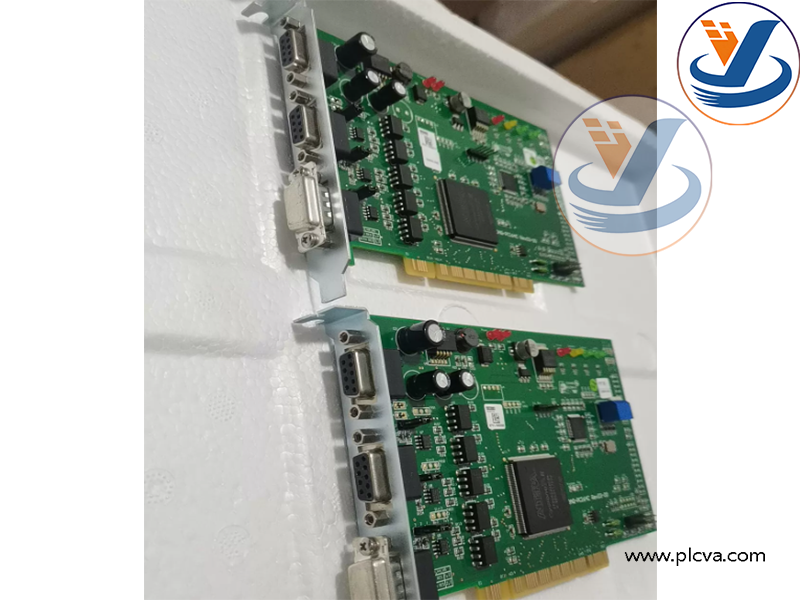

DAQ‑PCI64C Rev03‑00 Data Acquisition Board

On‑board signal conditioning circuit filters raw field signals to suppress electromagnetic interference generated by industrial equipment. It supports hardware trigger mode for synchronized sampling and event capture.More products: www.plcva.com
Transmits sampled measurement data to host memory through PCI bus. Supports user‑level driver APIs for application software to realize data logging, real‑time monitoring and closed‑loop control logic.
Rev03‑00 is one hardware iteration of DAQ‑PCI64C PCB; it fixes known hardware defects from earlier revisions and maintains full backward compatibility with software drivers.

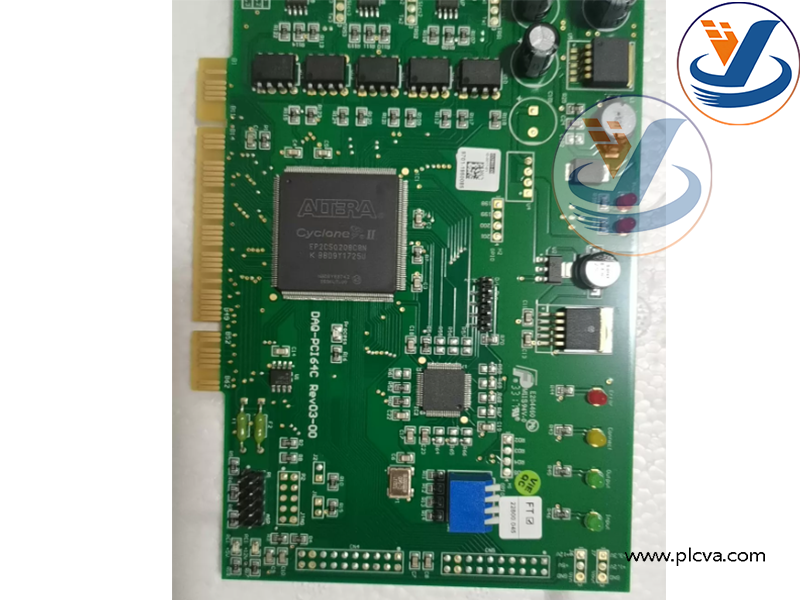

DAQ‑PCI64C Rev03‑00 Data Acquisition Board

Installed inside industrial PC PCI slot, applied in industrial automation test benches, equipment condition monitoring, manufacturing production‑line measurement and custom test systems.
Collects multi‑parameter analog physical quantities and digital switching signals from field equipment; executes output control commands according to upper‑layer application logic.
Widely used for equipment debugging, product functional testing, process‑data recording, auxiliary interlock logic for semiconductor and general industrial machinery.
DAQ‑PCI64C series is an end‑of‑life legacy hardware. The unit Rev03‑00 is used as OEM replacement spare part for aging automation equipment. It restores data acquisition and I‑O control functions to minimize production downtime when original board fails.
