Main Functions

1. High‑precision optical imaging projection Multi‑group optical glass lens assembly projects target object onto CMOS / CCD image sensor plane. Optimized optical aberration correction, controls geometric distortion, chromatic aberration and edge vignetting, delivers sharp, uniform image across the whole field of view. Matches high‑pixel industrial image sensors for clear object feature reproduction.More products: www.plcva.com
2. Adjustable aperture and focus locking mechanism Equipped with mechanical iris diaphragm for adjustable F‑number. Operators can tune aperture to balance light intake, depth‑of‑field and resolution. Lockable focus ring and iris ring prevent parameter drift caused by equipment vibration on production lines, maintaining stable imaging performance in continuous‑run automation environments.

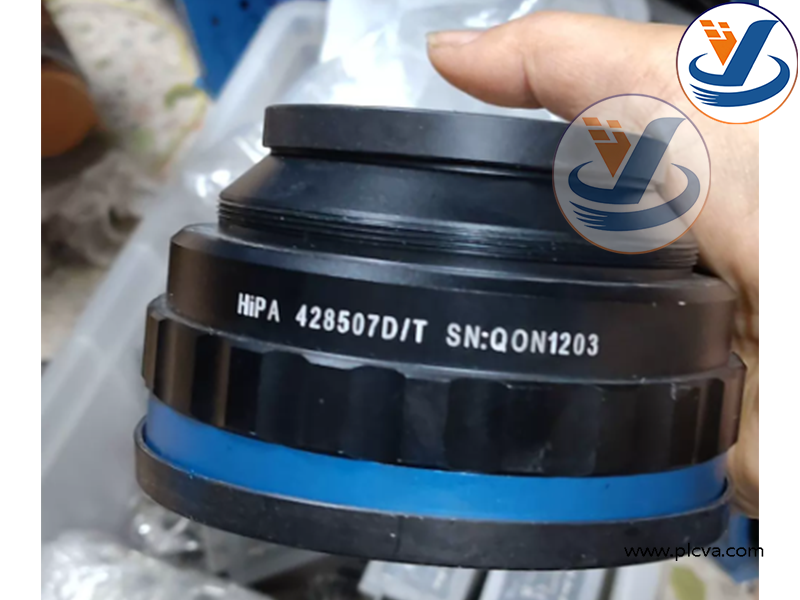

HiPA 428507DT Machine‑Vision Industrial Lens

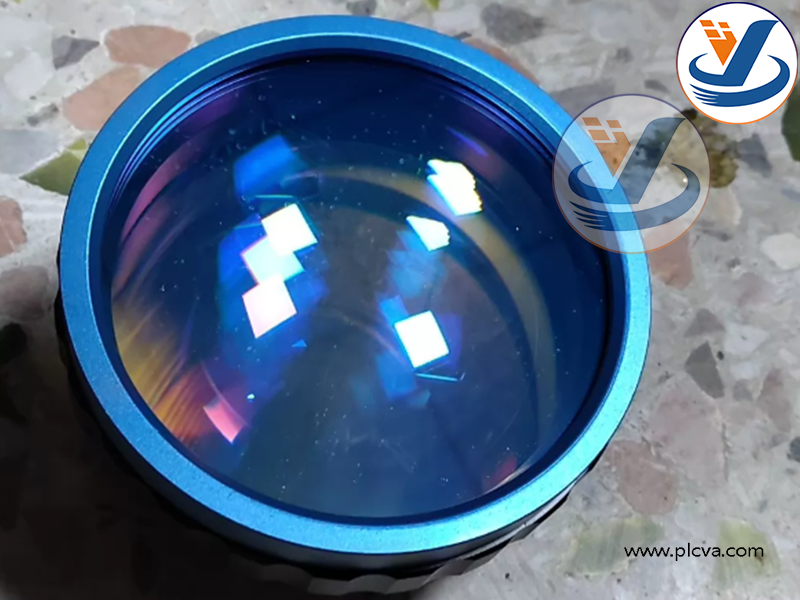

1. Broad‑band anti‑reflection optical coating Multi‑layer AR coating covers optical surfaces. Reduces light reflection loss, suppresses ghost image and flare interference. Supports visible‑light spectrum (400‑700 nm); partial versions support near‑infrared response for NIR‑assisted inspection scenarios.
2. Rugged industrial mechanical construction Compact metal housing with C‑Mount threaded interface. High mechanical stability against shock and vibration. Designed for cabinet‑mount or direct mounting on industrial camera in factory workshop conditions. Thread‑lock rings secure lens setting after commissioning.plcva.com

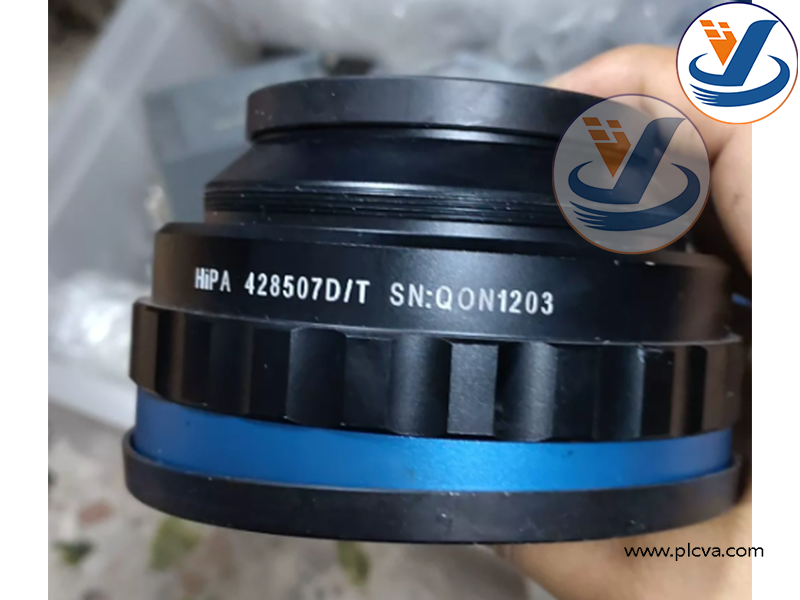

HiPA 428507DT Machine‑Vision Industrial Lens

1. Image‑circle matching for industrial sensors Designed for specific maximum sensor format. Ensures full illumination for sensor active area, no corner darkening when matched with compatible industrial cameras. Realizes consistent imaging quality from image center to image edge.
2. Environmental adaptability for factory automation Wide working‑temperature tolerance. Resists minor dust and moisture impact inside automation equipment. Supports long‑time continuous operation in industrial inspection stations.

HiPA 428507DT Machine‑Vision Industrial Lens

3. Applications & Purpose

HiPA 428507DT is a fixed‑focus industrial machine‑vision lens, widely integrated into automated visual‑inspection equipment across multiple manufacturing sectors.plcva.com

Typical deployment scenarios:

• Production‑line visual defect inspection stations
• Parts dimension measurement, position detection and positioning guidance
• Surface defect detection for electronic components, metal parts, plastic workpieces
• Packaging quality checking, label character OCR reading
• Automation equipment for 3C, automotive‑parts, food‑and‑pharmaceutical, logistics‑sorting industries
• Retrofit and spare‑part replacement for existing HiPA‑based vision systems

HiPA 428507DT Machine‑Vision Industrial Lens

Core operational purposes:

• Collect high‑quality optical image signals for industrial cameras, convert physical object features into digital image data
• Provide stable optical performance for machine‑vision algorithms to complete defect detection, dimension gauging, part positioning and character recognition
• Lock aperture and focus parameters to avoid image offset caused by on‑site vibration, guarantee repeatable inspection accuracy on continuous production lines
• Realize object‑to‑sensor optical projection, serve as key front‑end optical hardware of whole machine‑vision solution
• Used for new‑equipment assembly and spare‑part replacement of existing automated visual‑inspection machinery.
