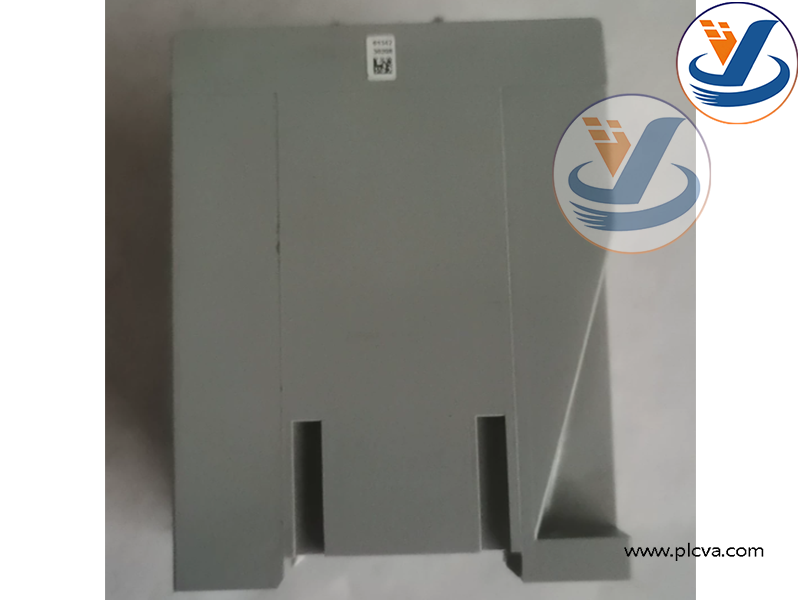

Honeywell 10310/3/1CC Earth Leakage Detector

3. Applications & Purpose

10310/3/1CC is a safety‑grade earth‑leakage detector for floating 24 VDC safety loops, mainly deployed within Honeywell Safety Manager safety instrumented systems.More products: plcva.com

Typical deployment scenarios:

• ESD (Emergency Shutdown) safety loops in petrochemical, oil‑gas processing plants
• Safety‑related 24 VDC control circuits of power‑generation facilities
• Fire‑and‑gas detection and interlock control panels
• Safety instrumented system (SIS) cabinets for heavy‑process industries
• Spare‑part replacement and maintenance for existing Honeywell SMS installations

Core operational purposes:

• Real‑time monitor insulation health of floating 24 VDC safety control loops, detect earth leakage and ground short‑circuit faults
• Prevent safety‑circuit malfunction, false tripping or failure‑to‑act caused by hidden ground faults in field cables
• Provide fault‑location function to reduce downtime during safety‑system maintenance
• Send ground‑fault alarm signals to safety logic solver and remote monitoring system for operator awareness
• Protect critical safety loops, improve overall reliability of ESD and process safety systems; avoid safety hazards triggered by wiring insulation deterioration
• Serve as original spare component for overhaul and retrofit of legacy Honeywell Safety‑Manager‑based safety systems.
