Core Functions

1. Manual Robot Jogging & Motion Control Equipped with an ergonomic 6D mouse and 8 jog keys. Operators can manually jog robot axes, adjust robot position and orientation in 6‑degree‑of‑freedom space; it supports control for up to 8 axes including external auxiliary axes. The enabling dead‑man switch ensures safe manual jogging: robot moves only when the operator keeps pressing the enable button.
2. On‑site Robot Programming & Editing Users create, modify, debug and test KUKA robot programs directly on‑site. It supports inline form programming, motion instruction editing, variable configuration, logic‑block editing and program simulation. The context‑sensitive graphical UI only displays operation‑relevant options, lowering programming difficulty for both novice and experienced technicians.More products: www.plcva.com
3. Safety‑related Hardware Features Built‑in hardwired emergency‑stop push‑button, mode‑selection key switch (T1/T2/AUT mode switch). It implements safety interlock: robot movement will be cut off immediately upon emergency‑stop trigger. The replaceable connecting cable simplifies field maintenance compared with the first‑generation smartPAD.
4. Data Storage & Transfer Two front‑side USB 2.0 ports support program backup‑restore, configuration file import‑export, and connection of external USB storage devices. Multi‑language user interface supports localized operation; system alarms, error logs and event history can be reviewed and exported locally.
5. Hot‑swap & Multi‑robot Support This teach pendant supports hot‑plug‑and‑play. Operators can plug/unplug the unit from the controller without powering down the robot cabinet. One smartPAD‑2 can be shared among multiple KR C4 / KR C5 robot controllers for flexible workshop usage.
6. Industrial‑grade hardware performance 8.4‑inch high‑brightness capacitive scratch‑resistant touch display; IP54 protection rating, anti‑drop design for harsh factory floor environments. Optimized dual‑grip ergonomic handles fit both left‑handed and right‑handed operators; it can be handheld or laid flat as desktop console with shoulder‑strap accessory for long‑time operation.

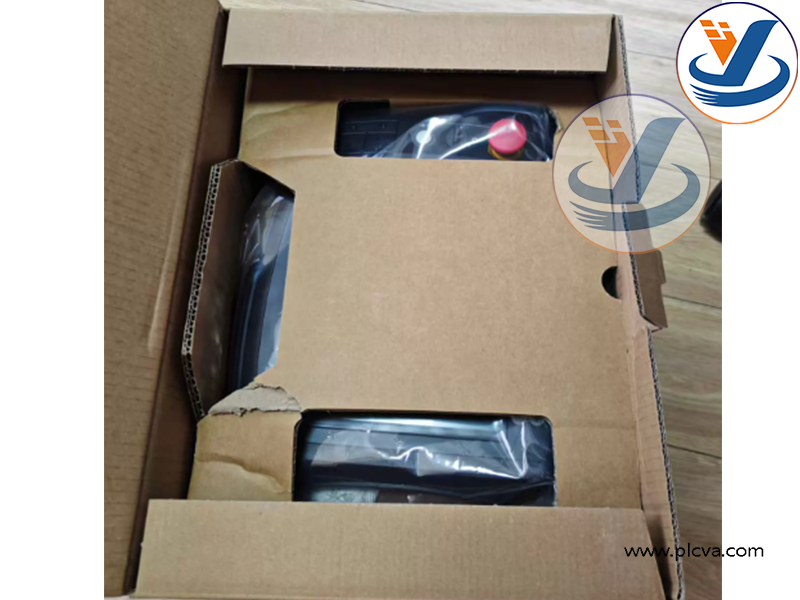

KUKA smartPAD‑2 Teach Pendant

Applications & Purposes

smartPAD‑2 is the primary on‑site human‑machine interface for KUKA industrial robot systems. It serves as handheld programming & operation terminal for robot commissioning, teaching‑in, troubleshooting and maintenance.plcva.com

Typical Industries & Application Scenarios ‑ Automotive manufacturing: robot welding, handling, painting, assembly‑line robot commissioning ‑ General‑industry automation: material handling, palletizing, packaging, machine‑tending ‑ Metal processing: arc welding, laser cutting, grinding & deburring robot setup ‑ Logistics & warehouse automation: sorting‑robot programming and parameter tuning ‑ Educational & robot‑training laboratories

KUKA smartPAD‑2 Teach Pendant

Main Purposes

1. Perform robot teaching‑in: manually guide robot to record target positions for robot motion programs.
2. Develop, edit, debug and validate robot application programs on‑site before formal production.
3. Switch operation modes, monitor robot status, read fault codes, diagnose robot failures and conduct maintenance work.
4. Back up robot programs and system configurations via USB interface.
5. Real‑time observation of robot axis status, I/O signal status, alarm messages and production‑related data during operation.
