Core Functions

1. Fiber‑optic Real‑time Servo Motion Data Transmission This board serves as high‑speed optical‑fiber communication interface between robot main CPU and servo drive units. It converts electrical motion‑control commands into optical signals, transmitting joint position instructions, trajectory setpoints, encoder feedback data and servo status information via fiber cables. Optical transmission effectively eliminates electromagnetic interference in heavy‑interference industrial cabinet environment, ensuring real‑time deterministic data exchange for multi‑axis robot motion.
2. Multi‑axis Motion Control Signal Processing Process closed‑loop motion‑control data for robot joints. It forwards motion trajectory commands from robot main controller to servo amplifiers, meanwhile receiving encoder position feedback, servo fault codes, current‑voltage status returned from each drive axis. It implements high‑speed synchronization of multiple robot axes to guarantee robot path accuracy and motion repeatability.More products: www.plcva.com
3. Hardware‑level Fault Diagnosis & Status Monitoring On‑board hardware logic monitors fiber‑link health status, signal loss, communication timeout and servo‑chain abnormal signals. It generates system alarm codes and feeds back fault information to robot host controller. LED indicators display board power status, optical link status and communication errors for on‑site troubleshooting.
4. Galvanic Isolation via Optical Media Fiber‑optic physical isolation cuts off ground‑loop interference and surge‑voltage crosstalk between main control unit and servo drives. It improves system anti‑interference performance inside robot control cabinet, avoiding signal distortion caused by motor‑drive electromagnetic noise.
5. Internal Plug‑in Modular Hardware Design Standard internal slot‑mount PCB board installed inside Stäubli robot controller cabinet. Works cooperatively with robot mainboard, power‑supply unit and servo drive modules. Supports hot‑swap‑replacement for spare‑part maintenance; after replacement, no extra hardware modification is required, only robot system configuration validation is needed.
6. System‑level Motion‑control Link Integration It is the critical intermediate link of robot motion‑control chain. It undertakes bidirectional data interaction: downlink motion‑control commands to servo drives; uplink real‑time axis operating data back to robot main CPU for trajectory calculation, interpolation and closed‑loop adjustment.plcva.com

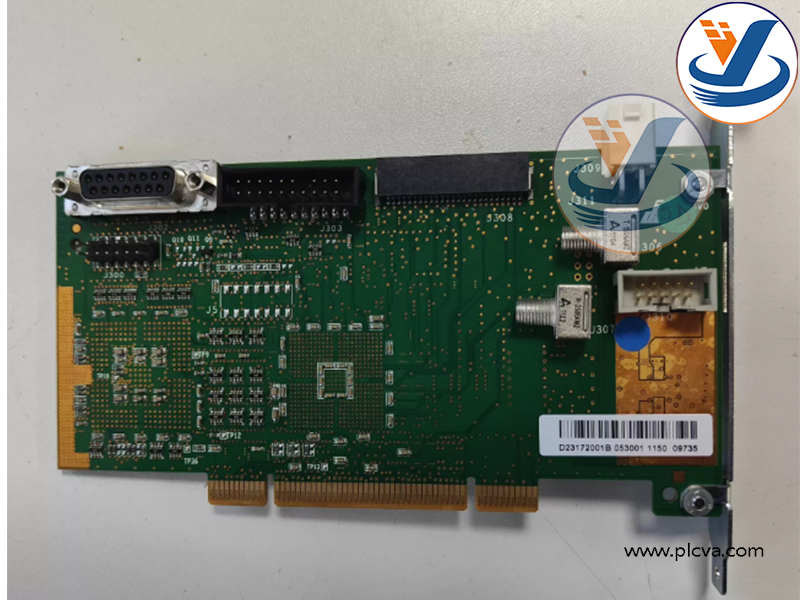

Stäubli Fiber‑Optic Communication & Motion Control Card D23172001B

Applications & Purposes

D23172001B is original internal spare‑part board for Stäubli TX‑series industrial robot controllers, exclusively deployed inside robot electrical cabinet.

Typical Application Industries ‑ Automotive manufacturing: robot welding, handling, assembly stations ‑ Metalworking: robot laser processing, arc welding, grinding & deburring ‑ Packaging & logistics: robotic palletizing, material handling ‑ Precision‑automation, pharmaceutical and electronics assembly robot cells ‑ Robot‑maintenance & spare‑part replacement for existing Stäubli robot installations

Stäubli Fiber‑Optic Communication & Motion Control Card D23172001B

Main Purposes

1. Establish high‑reliability fiber‑optic real‑time communication channel between robot main controller and servo drives.
2. Transmit multi‑axis motion‑control commands and encoder feedback signals to realize robot joint closed‑loop motion control.
3. Suppress electromagnetic interference inside control cabinet, guarantee high‑precision, stable robot trajectory performance under harsh industrial‑site conditions.
4. Detect communication‑link failures and servo‑chain abnormalities, output alarm information for robot fault diagnosis.
5. Serve as replacement spare‑part for aged or faulty original board; restore robot normal operation after communication‑related hardware failure.
