Core Functions

1. Safety‑grade 4‑20 mA Analog Signal Acquisition It provides 8 single‑ended analog input channels for 4‑20 mA field transmitter signals. 16‑bit high‑resolution sampling, 25 ms base scan rate, converts field analog process signals into digital data for safety logic solver processing. It supports 2‑wire, 3‑wire and 4‑wire transmitters, with non‑incendive field‑circuit design for hazardous‑area wiring.
2. HART Protocol Pass‑through & Transmitter Diagnostics Built‑in HART pass‑through function. It transparently transmits HART digital superimposed signals over 4‑20 mA loops. Operators can remotely read transmitter status, diagnostic codes, configure and calibrate smart HART field instruments without breaking safety‑loop integrity.More products: www.plcva.com

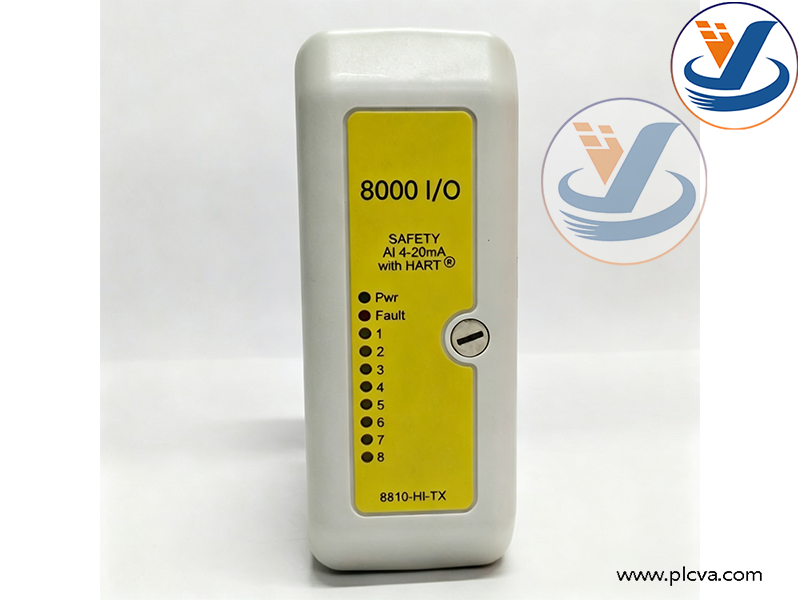

GE 8810‑HI‑TX‑01, 8000 IO SAFETY Module

1. Comprehensive Channel‑level Safety Diagnostics Detects sensor burnout, open‑circuit, short‑circuit, over‑range and under‑range faults on each input channel. Performs internal hardware self‑test, memory parity check and watchdog monitoring. When dangerous failures are detected, the module enters pre‑defined failsafe state and reports fault alarms to the safety controller, complying with IEC 61508 functional‑safety requirements (SIL 2 certified).
2. Backplane Bus Data Interaction Mounted on PAC8000 DIN‑rail carrier base. It exchanges safety‑validated process data, channel status and diagnostic logs with FB‑8800 safety logic solver via proprietary SafetyNet backplane Railbus. LED indicators show power status, channel activity and fault information for on‑site troubleshooting.
3. Modular Hot‑swap & Mechanical Anti‑mismatch Design Supports hot‑swap replacement under system running status. Unique mechanical keying prevents wrong‑module installation. Detachable field‑termination units simplify wiring maintenance; field terminals can be replaced without removing the main I/O module.plcva.com
4. Harsh‑environment Industrial Hardware Performance Wide operating temperature range ‑40 ℃ ~ +70 ℃, anti‑vibration and anti‑shock capability, suitable for Class 1 Div 2 hazardous locations. Complies with CE, TÜV‑Rheinland safety certification standards.

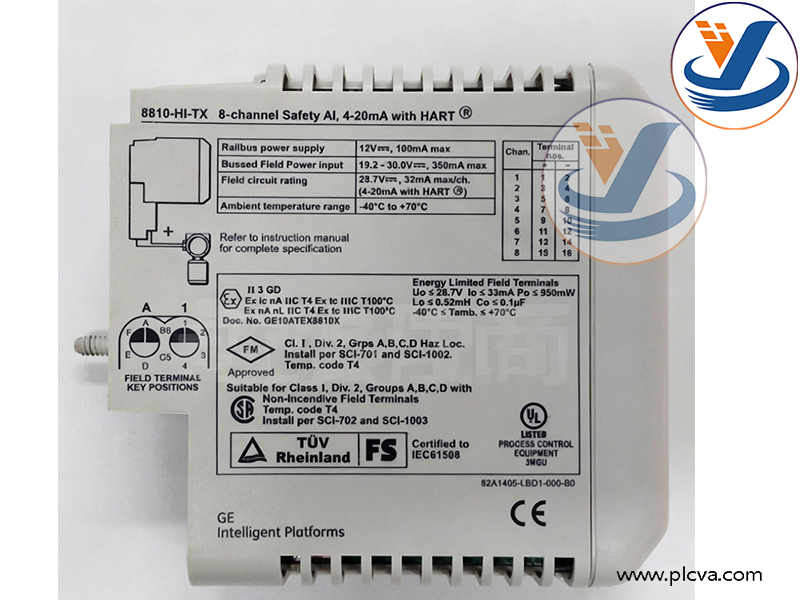

GE 8810‑HI‑TX‑01, 8000 IO SAFETY Module

Applications & Purposes

8810‑HI‑TX‑01 is safety‑instrument‑system dedicated analog‑input I/O module, deployed inside safety cabinet for safety‑critical process monitoring.

Typical Industries ‑ Oil & gas, petrochemical plants ‑ Power generation, boiler & turbine safety monitoring ‑ Chemical processing, fine‑chemical production ‑ Refineries, pipeline safety‑monitoring stations ‑ Hazardous‑process pharmaceutical manufacturing

GE 8810‑HI‑TX‑01, 8000 IO SAFETY Module

Main Purposes

1. Collect safety‑relevant process variables including pressure, temperature, flow, liquid‑level from safety‑loop transmitters for SIS / ESD emergency‑shutdown systems.
2. Deliver validated analog measurement data to safety logic solver for safety interlock, over‑limit protection and emergency‑trip judgment.
3. Realize HART smart‑transmitter remote diagnosis, parameter reading and calibration, reduce field‑maintenance workload.
4. Detect field‑loop wiring faults and sensor failures, trigger safety‑system alarm and failsafe response to avoid hazardous‑plant conditions.
5. Serve as spare‑part replacement for existing PAC8000 SafetyNet system, restore safety‑I/O channel function after hardware failure.
