Core Functions

1. Multi‑rail Regulated Control‑level Power Generation Accepts AC input 38‑115 VAC from control transformer. It generates multiple stabilized DC power rails: +5 V, ±15 V, ±24 VDC for rack logic circuits, CPU boards and signal‑processing modules. It also supplies 115 VAC output for cabinet cooling fans inside drive/turbine control cabinet. Integrated fuses provide short‑circuit and overload protection for each power‑output channel. Test‑points on PCB allow field‑service technicians to verify voltage levels directly.More products: www.plcva.com
2. SCR Gate Pulse Driver Circuit It delivers firing‑pulse drive signals for SCR power‑semiconductor stacks. It handles gate‑trigger signals for armature‑side SCR modules, supporting high‑power rectifier and excitation‑unit operation for large motors or generator‑excitation loops.
3. AC & DC Analog Signal Sensing & Feedback Acquisition On‑board measurement circuits sample critical power‑stage variables: armature voltage, armature current, field‑winding current, AC‑line voltage and AC‑line current. Converts high‑power‑side analog signals into low‑level feedback signals for main controller closed‑loop regulation. Real‑time electrical‑parameter feedback enables drive‑system current‑loop and voltage‑loop control.

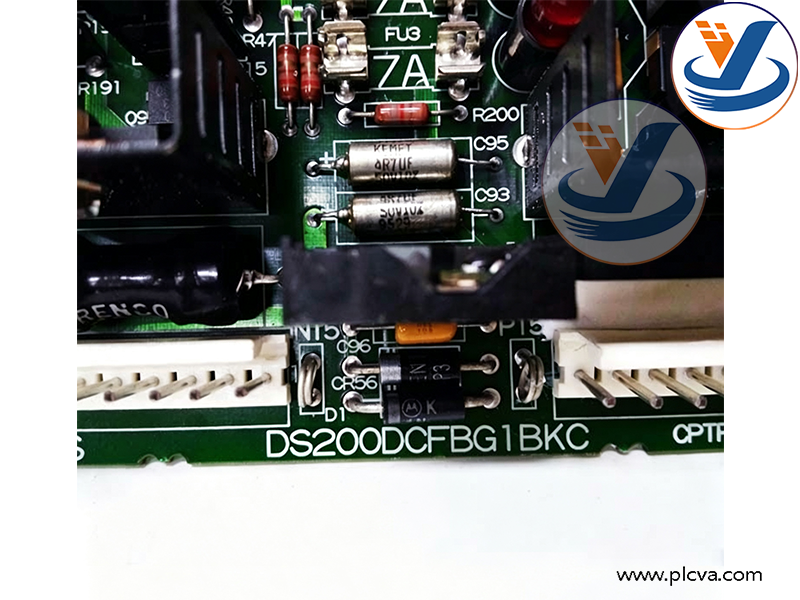

GE DS200DCFBG1BKC, Mark V Series Power Supply Board

1. Hardware‑based Fault Monitoring & Indication Detects power‑supply faults, blown‑fuse status and abnormal power‑stage feedback signals. LED status indicators visualize power‑on state and fault conditions. Fault‑related status signals are transmitted to main Mark V controller for alarm logging and protection‑interlock triggering.
2. Rack‑backplane Signal Interaction & Configuration Installed as plug‑in PCB inside Mark V control cabinet. Communicates with main‑controller via rack‑backplane bus. Configurable via on‑board DIP‑switches and jumpers for adapting to different drive‑mode setups. Conformal‑coated PCB for anti‑corrosion and anti‑humidity in harsh power‑plant environments.
3. Galvanic‑isolation between high‑power section and low‑voltage logic Provides electrical isolation between high‑voltage power‑circuit and sensitive low‑voltage control‑circuit, suppressing EMI noise and ground‑loop interference generated by SCR power‑switching actions, improving system stability for heavy‑duty power‑conversion equipment.

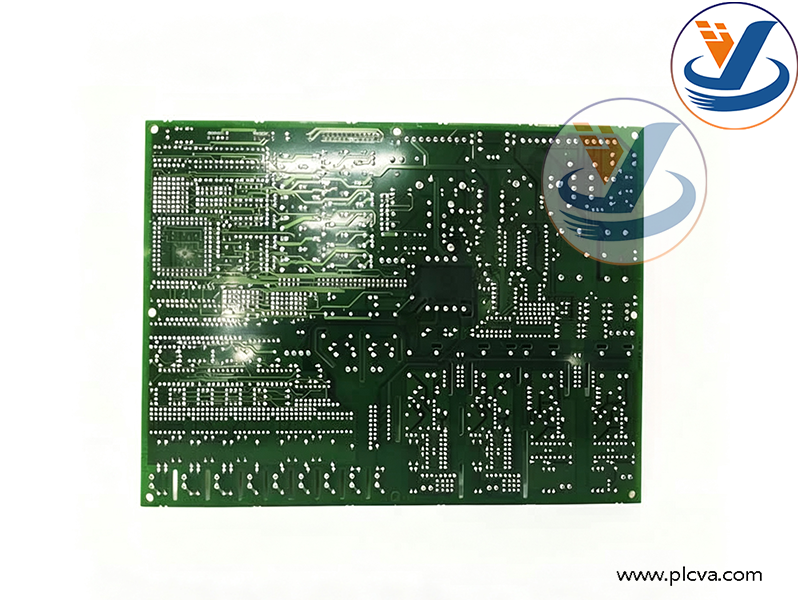

GE DS200DCFBG1BKC, Mark V Series Power Supply Board

Applications & Purposes

DS200DCFBG1BKC is a dedicated legacy rack‑mount internal board for GE Mark V Speedtronic turbine‑control and large‑size drive‑systems. It cannot run independently and must work with matching Mark V hardware and firmware.plcva.com

Typical Industries ‑ Thermal power plants: gas‑turbine and steam‑turbine control systems ‑ Petrochemical & refinery large‑compressor drive packages ‑ Metallurgy: large DC‑motor rolling‑mill drives ‑ Mining, cement heavy‑duty variable‑speed drives ‑ Power‑generation auxiliary excitation‑control systems

Main Purposes

1. Supply multi‑channel stabilized control‑power for Mark V rack‑internal logic boards, ensuring reliable power for turbine‑control or drive‑control hardware.
2. Trigger SCR power‑semiconductors and acquire power‑stage electrical feedback signals to realize closed‑loop current‑voltage regulation for large‑power motors or generator‑excitation units.
3. Provide 115 VAC power supply for cabinet cooling fans to maintain proper cabinet operating temperature.plcva.com
4. Monitor power‑supply health and power‑circuit abnormal status, feed fault information to main controller for protection‑interlock.
5. Serve as OEM replacement spare‑part for aged Mark V racks; restore power‑supply and drive‑feedback functions after original‑board failure for existing power‑plant and heavy‑industry installations.

GE DS200DCFBG1BKC, Mark V Series Power Supply Board
