AMAT

Core Functions

1. Multi‑channel DeviceNet Field‑bus Master Communication: Operates as DeviceNet master node with four independent isolated channels. Connect host industrial PC to multiple DeviceNet slave field devices simultaneously, supporting multi‑network parallel operation.
2. PCI‑to‑DeviceNet protocol translation: Translates PCI bus signals from host computer into DeviceNet protocol frames. Each channel owns dedicated on‑board microprocessor and local memory, off‑loads real‑time protocol processing burden from host CPU to guarantee deterministic communication performance.More products: www.plcva.com

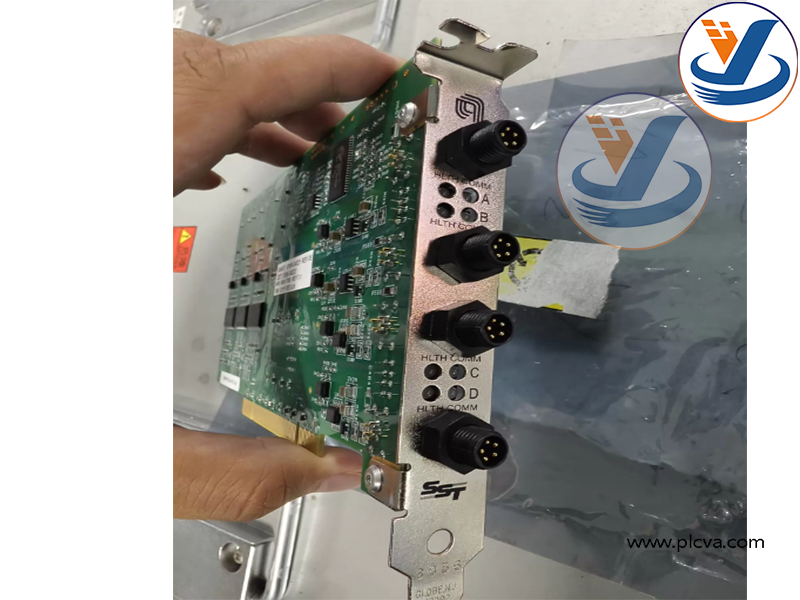

AMAT Applied Materials 0190‑34521 SST DNP‑PCI‑4 DeviceNet Communication Card

1. Galvanic isolation for each channel: Opto‑electrical isolation on every DeviceNet port. Eliminates ground‑loop noise and electrical surge damage, adapting to high‑EMI plasma chamber environment inside semiconductor fabrication equipment.
2. Bidirectional real‑time data transmission: Transmits process setpoints (gas flow, pressure parameters) from tool host PC to field slave devices; feeds back measured values, device status, fault codes and alarm information back to the main control software.
3. Network diagnosis & status indication: Each channel is equipped with bi‑color LED status indicators for network health monitoring. Supports node configuration, baud‑rate setting, communication fault detection and error reporting for DeviceNet networks.www.plcva.com
4. AMAT customized firmware: Pre‑loaded special firmware for Applied Materials process platforms, optimized for MKS DeviceNet components including mass flow controllers, pressure transducers and valve actuators.

AMAT Applied Materials 0190‑34521 SST DNP‑PCI‑4 DeviceNet Communication Card

Applications & Use Cases

This is OEM proprietary spare part exclusively for Applied Materials semiconductor wafer manufacturing equipment, mainly deployed on Endura, Centura, Producer and AKT PVD process platforms.

1. Multi‑segment DeviceNet field‑bus gateway: Links host industrial PC to MKS MFCs, Baratron pressure sensors, vacuum valves and other DeviceNet‑capable hardware distributed on process chambers. Four independent channels support separate DeviceNet subnetworks for different chamber subsystems.
2. Semiconductor process recipe execution: Delivers recipe parameters of deposition and etching processes to field hardware; collects real‑time process data for wafer‑processing loop control and production log recording.
3. Equipment fault monitoring & safety interlock: Reports device failures, communication drop‑out and hardware alarm events to tool host software, triggers equipment interlock protection to avoid wafer scrap and hardware damage.
4. Reduction of field‑wiring complexity: Adopts digital DeviceNet bus architecture instead of traditional point‑to‑point analog wiring, lowers wiring workload and reduces analog signal drift risk to improve process repeatability.
5. Fab maintenance & spare‑part replacement: Used for field replacement of defective communication cards on legacy AMAT production tools. Extends service life of existing fabrication systems without redesigning the whole control architecture.
