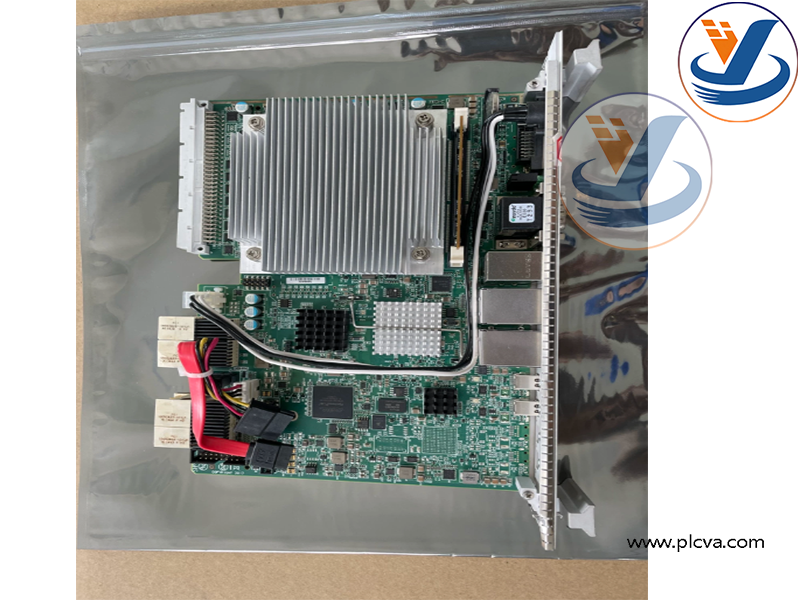

KNS (Kulicke & Soffa) 08991‑4010 Main CPU Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Core Functions

Central host computation for packaging equipment: Acts as the main system CPU, executes core machine control logic, bonding recipe parsing, motion sequence scheduling for KNS wire‑bonding or die‑bonding equipment. It processes overall equipment workflow and coordinates all subordinate functional boards.
Multi‑board backplane communication hub: Communicates with vision processing card, servo drive boards, I/O interface boards and EFO spark module via internal backplane bus. Distributes motion commands, receives sensor feedback data and vision alignment results from peripheral sub‑modules.
Recipe management & production data handling: Stores bonding parameter recipes, production count data and equipment configuration on onboard non‑volatile memory. Supports recipe loading, parameter modification, production log recording and process‑data traceability for semiconductor packaging production.
External host & HMI communication: Interfaces with equipment touch‑screen HMI and fab host computer. Receives operator commands; uploads machine status, production statistics and process alarm information to human‑machine interface and factory MES system.
Equipment fault monitoring & interlock management: Monitors hardware status of sub‑modules. Collects error signals from sensors, actuators and bonding head. Triggers safety interlock actions when abnormal conditions occur, records fault codes for maintenance troubleshooting.
System self‑diagnosis & watchdog protection: Equipped with hardware watchdog timer. Automatically resets the system upon software crash. On‑board LED indicators display power‑on status, running status and fault conditions for quick on‑site diagnosis.

KNS (Kulicke & Soffa) 08991‑4010 Main CPU Board

Applications & Use Cases

08991‑4010 is an OEM proprietary spare part exclusively for KNS semiconductor packaging wire‑bonder / die‑bonder production machines.More products: www.plcva.com

Core machine controller for IC packaging equipment: Serves as the brain of KNS wire bonding equipment. Governs the full bonding workflow: wafer alignment, wire loop forming, ball bonding, and material handling for semiconductor chip packaging.
Multi‑module coordination control: Coordinates vision alignment system, servo motion system, EFO discharge unit, material transport mechanism and safety interlock circuits to ensure high‑speed, high‑precision bonding performance.
Semiconductor packaging factory mass production: Applied in backend packaging fabs for IC chips, discrete devices and LED chips. Executes mass‑production bonding recipes and guarantees bonding quality consistency.
Process traceability for manufacturing: Collects production‑related data, uploads data to fab MES system, to realize production‑process traceability for finished chips.
Equipment maintenance & spare‑part replacement: Used for field replacement of defective main CPU boards on existing KNS bonders. Extends service life of legacy packaging equipment without complete machine‑control‑system redesign.
