ore Functions

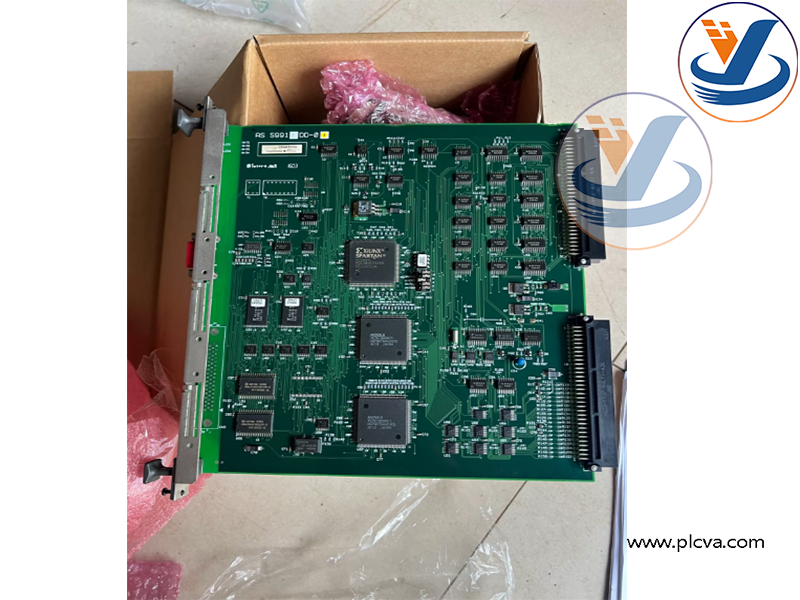

RS5911‑DC‑1 Main Board

1. Process‑bus communication & logic processing: Executes internal rack‑bus protocol processing, realizes data exchange between DCS controller CPU and field I/O modules. Transmits set‑point commands from controller to field hardware, and uploads field measurement values, status and fault codes back to main control unit.
2. Signal conditioning & galvanic isolation: Processes analog and digital signals, provides electrical isolation to suppress EMI interference from plant field devices, prevents ground‑loop damage to core controller hardware.
3. Hardware fault diagnosis & status reporting: Monitors communication link quality, power supply and circuit health. Sends fault alarms to DCS operator station upon signal dropout, short‑circuit or board failure.More products: www.plcva.com
4. Backplane interconnection: Works cooperatively with S97780E‑82 daughter‑board and S9353‑DB‑2B backplane interface board to complete signal routing inside DCS rack.

Yokogawa RS5911‑DC‑1 / S97780E‑82 / S9353‑DB‑2B DCS PCB Assemblies

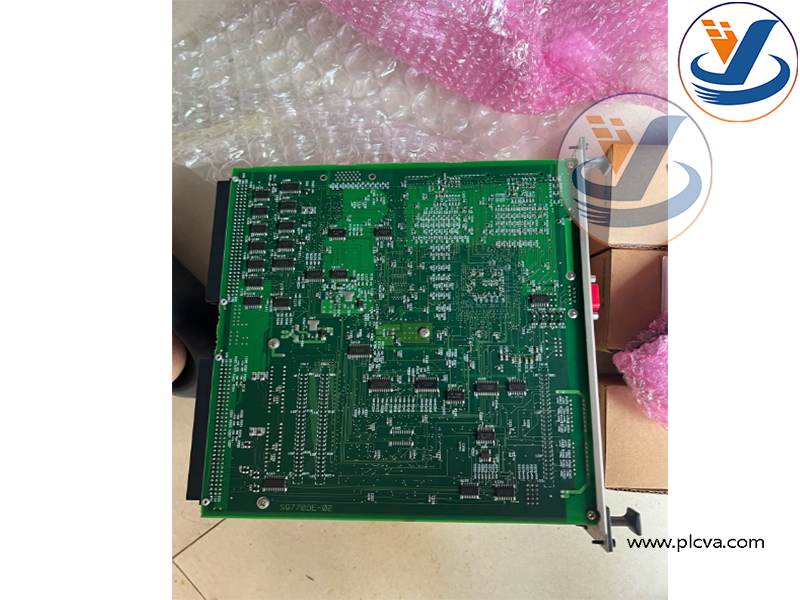

S97780E‑82 Daughter‑board Assembly

1. Auxiliary signal expansion sub‑circuit: Serves as daughter‑board for RS5911‑DC‑1, expands signal channels, adds filter circuits and auxiliary conversion circuitry.
2. Signal filtering and surge suppression: Further filters noise for incoming/outgoing signals, absorbs transient surge to protect main RS5911‑DC‑1 board.
3. Connector interface transition: Provides compact connector conversion, realizes reliable wiring connection between main board and S9353‑DB‑2B backplane board.

S9353‑DB‑2B Backplane Interface Board

1. Rack‑level signal distribution hub: Acts as physical interface bridge between RS5911‑DC‑1 assembly and DCS rack backplane bus. Routes power supply, data bus and alarm signals across the rack.
2. Power distribution and over‑current protection: Distributes regulated rack DC power to RS5911‑DC‑1 and S97780E‑82, carries onboard fuse protection to avoid fault spread to other DCS modules.
3. Mechanical & wiring interface: Provides external field‑wiring terminals, simplifies field instrument cable connection to DCS rack.

Yokogawa RS5911‑DC‑1 / S97780E‑82 / S9353‑DB‑2B DCS PCB Assemblies

Applications & Use Cases

This three‑piece board set is dedicated OEM spare components for Yokogawa CENTUM CS / CENTUM‑VP DCS distributed control systems, widely deployed in process industries plcva.com.

Yokogawa RS5911‑DC‑1 / S97780E‑82 / S9353‑DB‑2B DCS PCB Assemblies

1. Process plant DCS control rack hardware: Installed inside FCS field control station rack, supporting closed‑loop process control for chemical, petrochemical, power‑plant, oil‑gas, water‑treatment production facilities.
2. Field instrument signal interface: Realizes bidirectional data interaction between DCS controller and field transmitters, valves, actuators; supports analog‑4‑20mA, digital bus signals for process loop regulation, interlock and monitoring.
3. System fault containment: Multi‑stage isolation and protection design limits field‑side electrical faults from damaging high‑value DCS controller CPU cards, improving whole‑system availability.
4. Legacy DCS system maintenance & spare‑part replacement: Used for field swap of defective board assemblies on running Yokogawa CENTUM‑series DCS installations. Extends service life of existing process‑control systems without full‑system retrofitting.

Yokogawa RS5911‑DC‑1 / S97780E‑82 / S9353‑DB‑2B DCS PCB Assemblies

Yokogawa RS5911‑DC‑1 / S97780E‑82 / S9353‑DB‑2B DCS PCB Assemblies
