MVC16 Multi‑Axis Motion & Logic Control Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

1.Main Functions

Multi‑axis motion control: Executes position, speed and acceleration closed‑loop control for multiple servo or stepper axes; supports positioning, interpolation, synchronous motion and gantry‑mode linkage.More products: www.plcva.com
Multi‑channel digital I/O processing: Collects limit switch, home signal, sensor status; outputs switching control signals to relays, contactors, solenoid valves and indicator lamps.
Analog signal acquisition & output: Receives analog feedback signals from encoders, displacement and pressure transducers; outputs analog command signals to servo drives.
On‑board real‑time logic operation: Runs motion sequences and interlock logic locally; completes trajectory calculation, position comparison and safety‑limit judgment without heavy dependence on upper‑level host CPU.
Communication interface: Supports serial port, Ethernet or field‑bus; exchanges motion parameters, alarm status and real‑time position data with host computer, HMI or upper monitoring system.
Hardware safety protection: Built‑in over‑travel, over‑speed and emergency‑stop logic; triggers axis quick‑stop once abnormal signals are detected to protect machinery and operators.
Fault diagnosis & status feedback: Monitors board hardware, axis driver communication and I/O channel status; generates fault codes for rapid on‑site troubleshooting.plcva.com
Secondary development support: Provides SDK / function library for user program development, allowing custom motion sequences and process logic.plcva.com

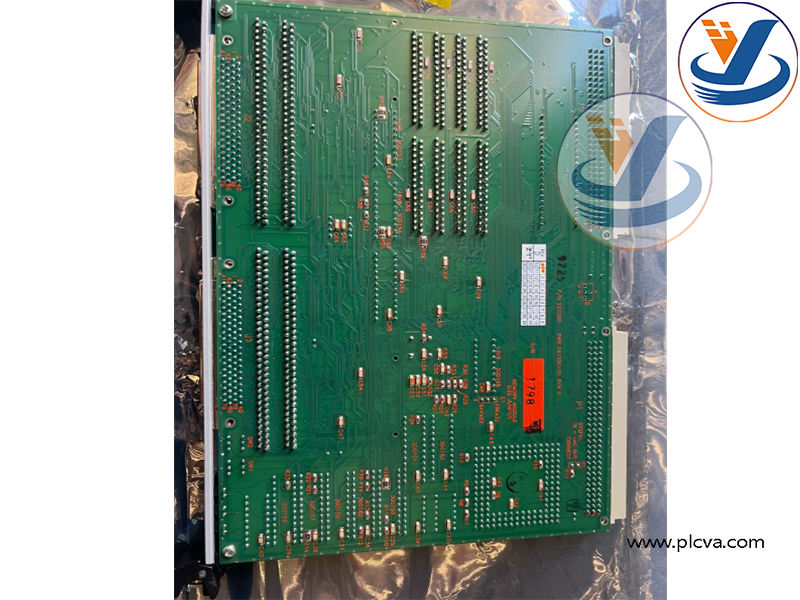

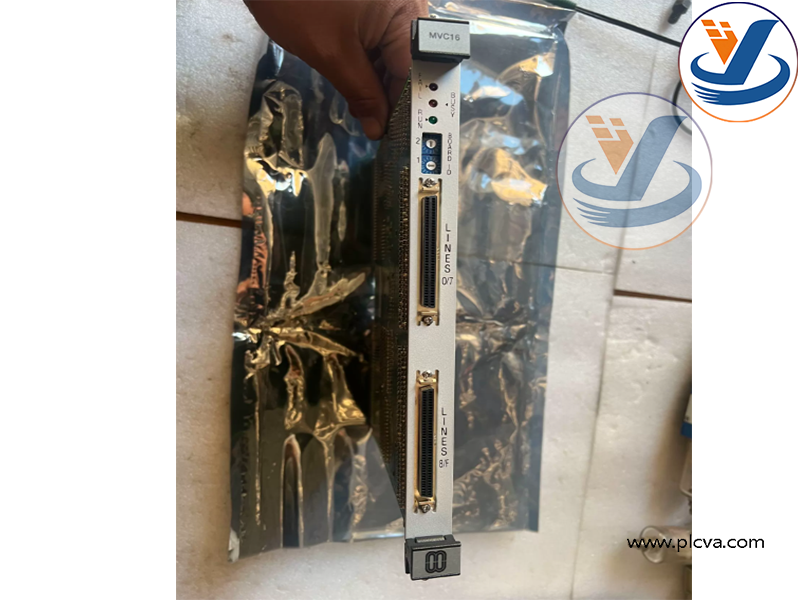

MVC16 Multi‑Axis Motion & Logic Control Board

MVC16 Multi‑Axis Motion & Logic Control Board

2. Applications / Purposes

Automated machinery equipment: Core motion control unit for CNC equipment, automatic assembly machines, packaging machinery, cutting and processing equipment, realizing multi‑axis coordinated movement.
Industrial test‑bench system: Controls test‑bench actuators, collects sensor data, completes cyclic test actions and data recording.
Special‑purpose automated production lines: Used for handling, positioning and sorting stations to implement complex motion workflow and equipment interlock logic.
Equipment OEM integration: Embedded inside complete machinery as native control hardware, matches servo drivers, sensors and human‑machine interfaces.plcva.com
Legacy‑equipment maintenance & retrofit: Serves as spare replacement part for existing machinery equipped with MVC16 control board; restores motion‑control capability for aging production equipment.
