Main Functions

SCR gate‑drive pulse generation and amplification Converts low‑level logic control commands from the main turbine controller into high‑current trigger pulses for thyristor (SCR) power bridges of generator excitation system. Accurately adjusts firing angle to regulate generator field current.
High‑speed pulse timing and signal conditioning On‑board programmable logic implements precise firing‑time synchronization for multi‑phase thyristor bridges. Performs signal filtering, noise suppression and pulse shaping under heavy electromagnetic interference in power‑plant environments.More products: www.plcva.com

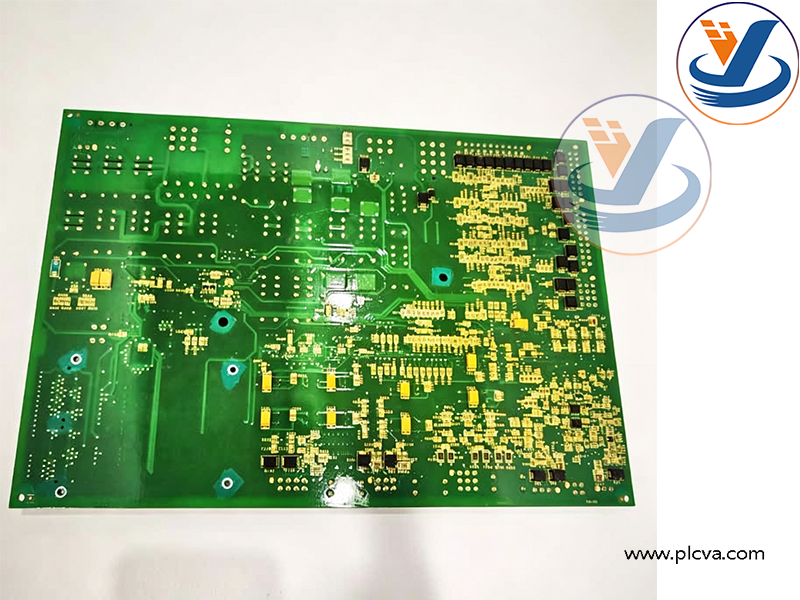

GE IS200AEPAH1AHD Mark VIe IO Module Circuit Board

Galvanic isolation between control circuit and power circuit Provides electrical isolation between low‑voltage control logic and high‑power excitation power stage, prevents high‑voltage surge damage to main controller hardware.
On‑board protection and real‑time monitoring Monitors pulse integrity, over‑current, short‑circuit and over‑temperature conditions of excitation loops. Triggers local protective interlock and sends fault flags to upper‑level Mark VIe controller for alarm logging.
Backplane bus data exchange Communicates with rack main controller via VME internal backplane bus. Receives excitation set‑point values, feeds back field‑loop status, diagnostic data and fault event information.
Conformal‑coated industrial hardware operation Conformal coating protects PCB components against dust, humidity and chemical fog; supports hot‑swap maintenance within Mark VI / Mark VIe rack architecture.

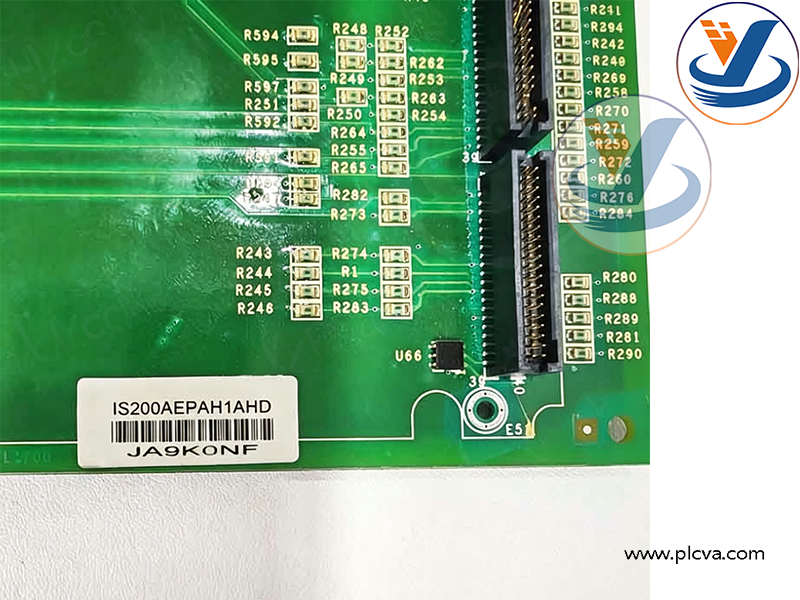

GE IS200AEPAH1AHD Mark VIe IO Module Circuit Board

Generator excitation control for turbine‑generator sets Core hardware component for GE EX2100 / EX2100e generator excitation systems, matched with Speedtronic Mark VI / Mark VIe turbine control platform. Realizes generator output‑voltage and reactive‑power regulation during unit startup, load fluctuation and grid disturbance.
Thermal power & combined‑cycle power plants Deployed on gas‑turbine, steam‑turbine generator units in coal‑fired power stations, combined‑cycle plants and co‑generation facilities. Handles critical excitation closed‑loop control loops.
Oil‑gas and heavy‑industry power generation assets Applied for industrial turbine‑generator packages, offshore power generation units and large‑size synchronous generator excitation control.
Spare‑part replacement and system retrofit projects OEM discontinued legacy spare part, used for maintenance, board replacement and hardware retrofit of existing running Mark VI / Mark VIe sites. Supports hybrid‑migration from Mark VI to Mark VIe system architecture.
Critical power‑plant interlock and protection coordination Works cooperatively with turbine main‑controller to implement generator‑related protection logic, avoids excitation‑system failure leading to generator abnormal operation.
