Main Functions

Signal Acquisition & Conditioning Receive analog and digital feedback signals from on‑site sensors, transducers and limit switches; filter, amplify and convert raw field signals into processable digital signals for internal logic calculation.
Logic Operation & On‑site Control Execution Run preset embedded control logic. Output driving signals to relays, solenoid valves, contactors and actuators to realize equipment sequence operation, interlock protection and local closed‑loop regulation.

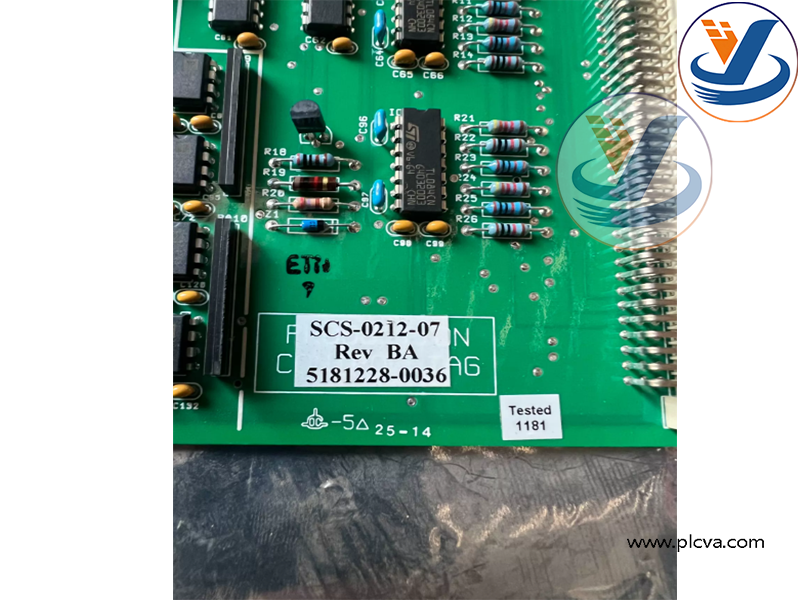

SCS‑0212‑07 Industrial System Control Board

Communication Data Interaction Support industrial serial bus communication. Exchange operating parameters, set‑points and fault information with upper‑level controller, PLC or HMI; realize remote parameter configuration and status uploading.
Fault Monitoring & Self‑diagnosis Continuously monitor board power supply, I/O channel status and peripheral device feedback. Detect abnormal working conditions, trigger protection interlock, store fault codes and alarm signals for equipment troubleshooting.
Power‑supply & Circuit Protection Integrate on‑board power conversion, over‑voltage, over‑current and reverse‑connection protection circuits. Stabilize power for on‑board chips and external connected sensors, improve anti‑interference performance under industrial harsh environment.

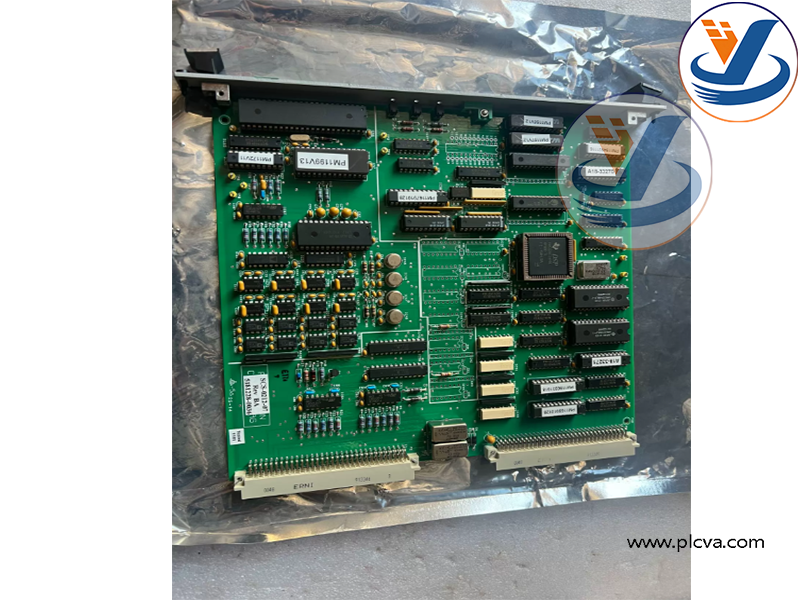

SCS‑0212‑07 Industrial System Control Board

Primary Application: Industrial automation equipment, special‑purpose machinery, test rigs and process control systems. It acts as local slave control hardware cooperating with main control system.
System Position: Field‑level replaceable control assembly. Undertakes on‑site signal collection and direct actuator driving, reducing computing load of upper‑level main controller.
Operational Purpose: Realize local sequence control, signal acquisition, interlock safety protection and data communication for automated machinery. Ensure stable field‑device execution; support on‑site debugging and fault diagnosis.More products: www.plcva.com
Spare‑part Property: Normally supplied as maintenance spare component for original equipment. Used for replacement when original control board fails, to restore full equipment functionality.
