TRACO Power TSL 240‑124, 240 W DIN‑rail‑mounted AC‑DC switching mode industrial power supply

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Functions

AC‑DC Power Conversion & Stabilized Voltage Output Accepts universal AC input 93‑132 VAC / 187‑264 VAC, 50‑60 Hz. Converts alternating mains power into regulated 24 VDC DC power, rated output 10 A / 240 W. Output voltage is adjustable via front‑panel potentiometer, typical efficiency up to 90 %, low ripple‑noise (50 mV peak‑to‑peak) for sensitive industrial loads.More products: www.plcva.com
Multiple‑layer Hardware Protection Mechanism Built‑in comprehensive protection functions including overload protection, short‑circuit protection, over‑voltage and over‑temperature protection. Automatically triggers protective shutdown under abnormal conditions to safeguard the power supply and downstream field devices. Supports parallel connection for power capacity expansion or redundant power supply configuration.
Industrial‑grade EMC Performance Complies with EN50082‑2 EMC immunity standard. Resists surge disturbance and electromagnetic interference from industrial cabinet environment, guarantees stable power output under harsh factory‑site conditions.
Convenient Installation & Status Indication Supports 35 mm standard DIN‑rail snap‑on mounting inside control cabinet, adopts screw‑type wiring terminals. Equipped with DC‑ON LED indicator to show real‑time power‑supply operating status for quick on‑site inspection and troubleshooting.
Wide Operating Temperature Range Works reliably within ‑25 °C ~ +70 °C ambient temperature. Long‑term MTBF reaches 365000 hours, meets continuous‑operation requirements for industrial automation equipment.

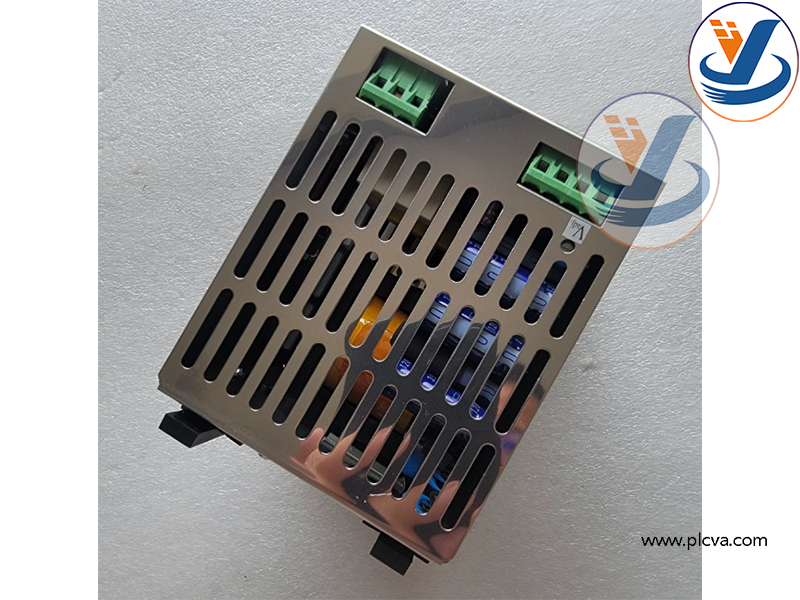

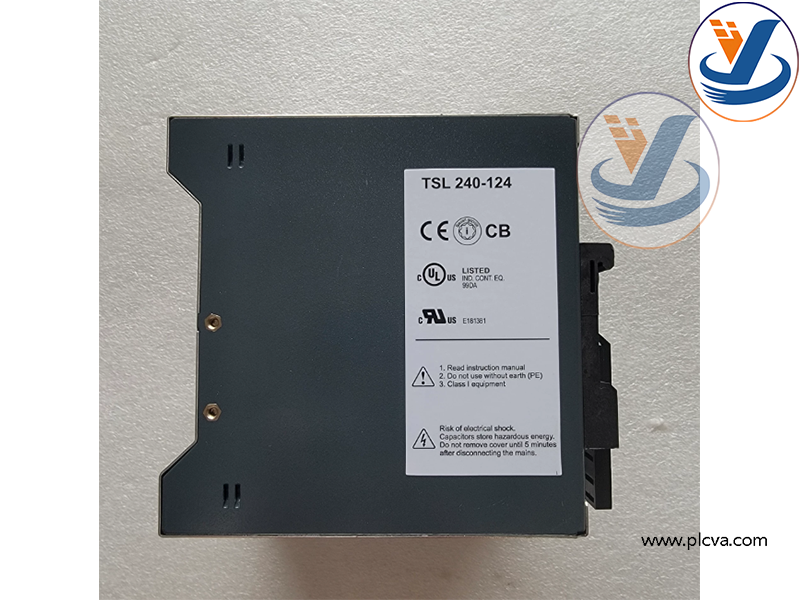

TRACO Power TSL 240‑124

Note: TSL 240‑124 is a standard enclosed industrial power supply, not a bare circuit‑board‑only module. It is widely used as spare replacement unit for automation cabinets. Some batches belong to legacy stock parts.

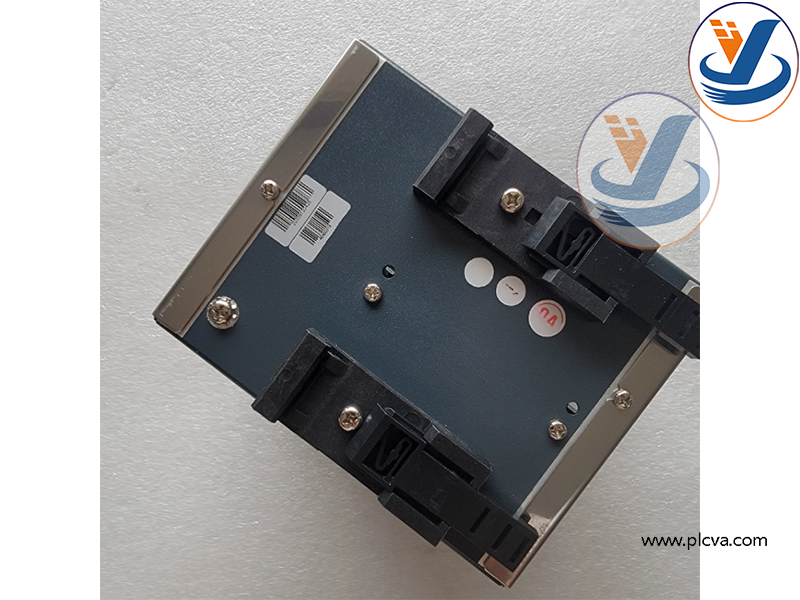

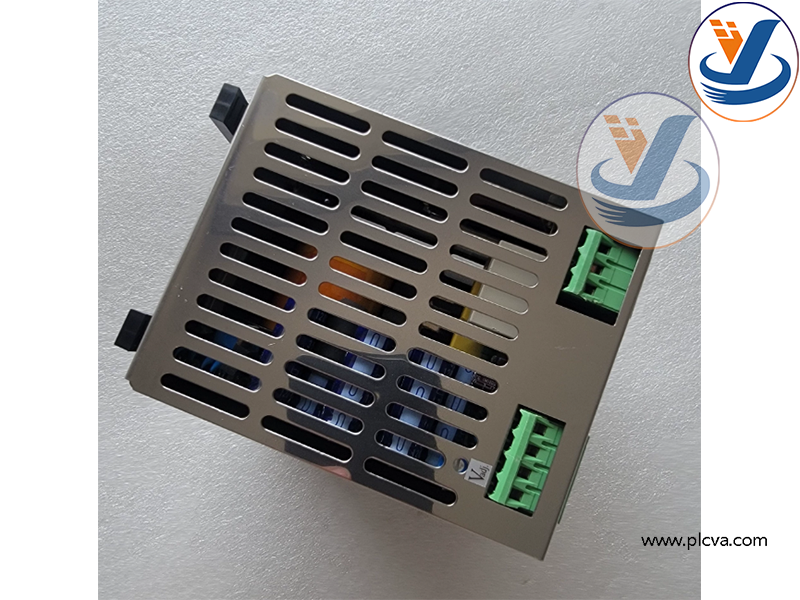

TRACO Power TSL 240‑124

Applications

This DIN‑rail power supply provides stable 24 VDC power for industrial automation control cabinets:

PLC & DCS control cabinet: Power supply for PLC CPU, I/O modules, HMI touch‑screens, sensors and fieldbus communication modules.
Machinery automation equipment: Provide 24 VDC power for packaging machines, conveying equipment, test fixtures and special‑purpose processing machinery.
Process industries: Power supply for field transmitters, solenoid valves and auxiliary instruments in water‑waste‑water, chemical and pulp‑paper plants.
Battery charging scenarios: Supports constant‑current regulation function, suitable for small‑scale battery charging applications.
Industrial maintenance & retrofit: Direct spare replacement for faulty TSL 240‑124 power supply unit in existing control cabinets, restore 24VDC system power distribution.
