Main Functions

Multi‑channel analog‑to‑digital conversion: Collect 8‑channel process analog signals including 4‑20 mA current and 0‑10 V voltage signals from field transmitters, convert analog physical‑quantity signals into digital data for DCS controller processing.plcva.com
Backplane bus data interaction: Transmit converted digital measurement values to central processing unit via TELEPERM M internal system bus; receive configuration parameters from main controller.

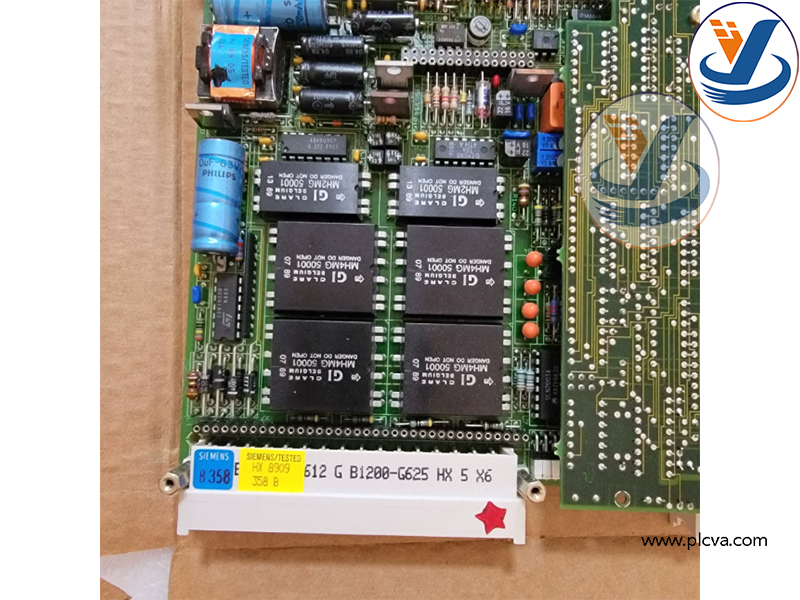

Siemens 6DS1731‑8AA Analog Input Module, TELEPERM M DCS System

Signal conditioning & filtering: Built‑in hardware filter circuits suppress high‑frequency industrial interference, reduce signal noise and guarantee stable measured values for process loops.
Module‑level hardware diagnostics: Detect channel open‑circuit, short‑circuit and module hardware failure; generate fault status flags transmitted to DCS operator station for alarm notification.
Rack‑based hot‑plug‑compatible structure: Installed inside TELEPERM M standard cabinet rack; support module replacement under specified maintenance conditions to shorten system downtime.
Parameter configurable via system software: Each channel supports software‑selectable signal type and range matching for different field sensors and transmitters.
Industrial‑grade environmental adaptability: Designed for cabinet‑installation, withstand wide‑range industrial temperature and electromagnetic interference in plant control rooms.

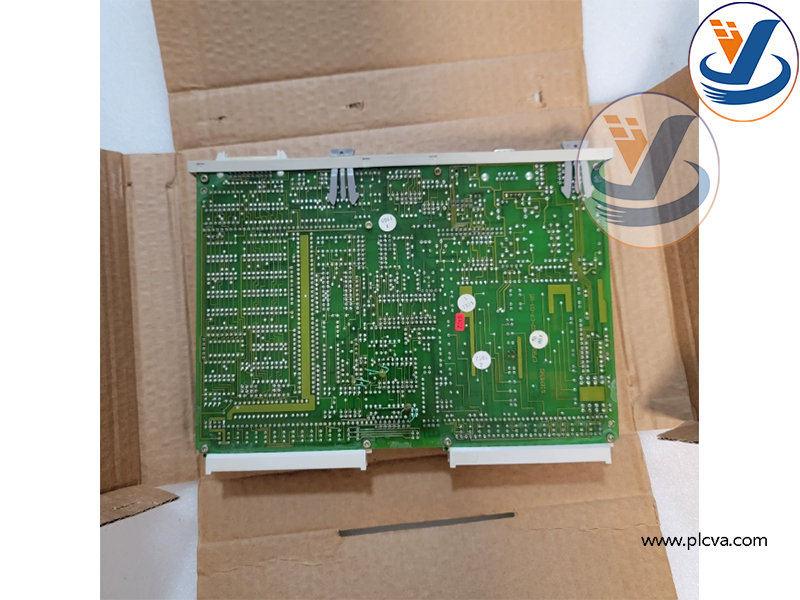

Siemens 6DS1731‑8AA Analog Input Module, TELEPERM M DCS System

Compatible control system: Siemens TELEPERM M and TELEPERM ME legacy DCS platforms.
Field connected devices: Pressure transmitters, flow transmitters, level transmitters, temperature transmitters and other 4‑20 mA / 0‑10 V process‑measurement sensors.plcva.com
Target industries: Thermal power plants, petrochemical plants, chemical processing facilities, pulp‑and‑paper mills, metallurgy and other heavy‑process‑industry sites.
Purpose: Realize continuous analog‑signal acquisition for process‑control loops; deliver field‑process data for monitoring, closed‑loop regulation and interlock logic. It serves as critical spare‑part for existing running TELEPERM M DCS installations, supporting plant‑system long‑term stable operation.
