1.Main Functions

1. Acts as the internal signal‑routing and processing backbone inside ABB ACS880 series industrial drives, bridging the drive main control processor, power unit, ZINP and ZPOW auxiliary boards.
2. Equipped with a 32‑bit embedded processor and 512 kB FRAM non‑volatile memory for real‑time drive‑parameter storage, fault log retention and signal data processing.plcva.com
3. Accepts external 24 VDC control power supply; generates stable on‑board +5 VDC /4 A power rail for other internal drive electronic components, typical power dissipation 20 W.
4. Provides 1500 V DC galvanic isolation between low‑voltage control circuits and high‑voltage power circuits, improving anti‑interference capability and equipment safety.plcva.com
5. Processes feedback signals from power‑stage hardware, transmits status and fault signals, coordinates internal high‑speed communication among sub‑modules of the frequency converter.
6. Supports drive fault diagnosis, event recording, and parameter‑holding during power‑off conditions.

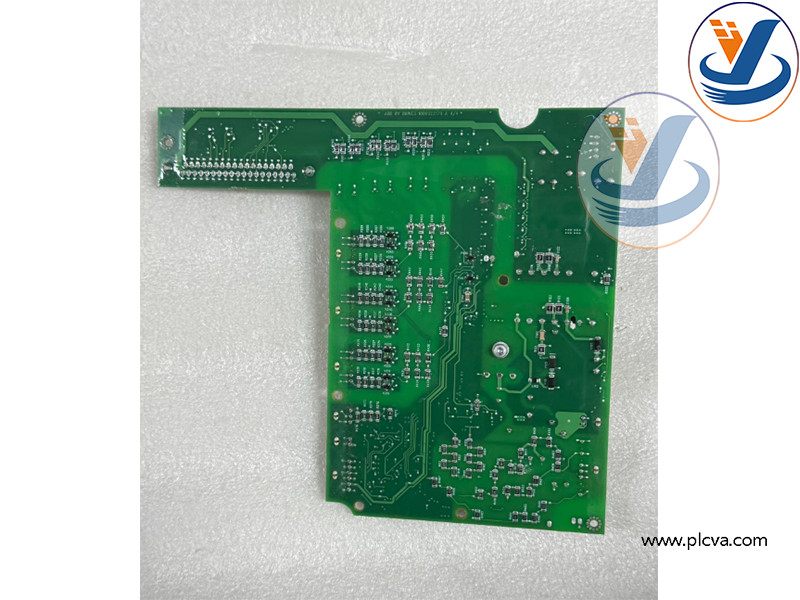

ABB ZINT‑241 Control Interface Board (3AXD50000003291)

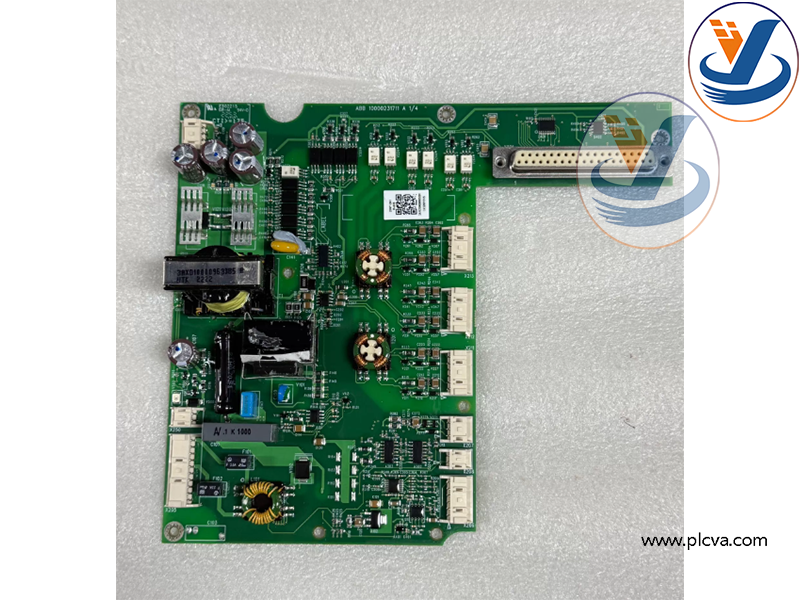

ABB ZINT‑241 Control Interface Board (3AXD50000003291)

2. Primary Applications

• Built‑in core spare board for ABB ACS880 series variable‑frequency drives, installed inside the drive cabinet as an internal hardware component.
• Industrial motor drive systems for heavy‑duty industries: metallurgy, mining, paper‑making, port machinery, cranes, material conveyors and large‑size production lines.
• Used for drive maintenance and replacement: replaces damaged original control interface board to restore normal operation of ACS880 inverters.plcva.com
• Realizes reliable signal interaction between drive control logic and power hardware for high‑performance variable‑speed motor control scenarios.

ABB ZINT‑241 Control Interface Board (3AXD50000003291)
