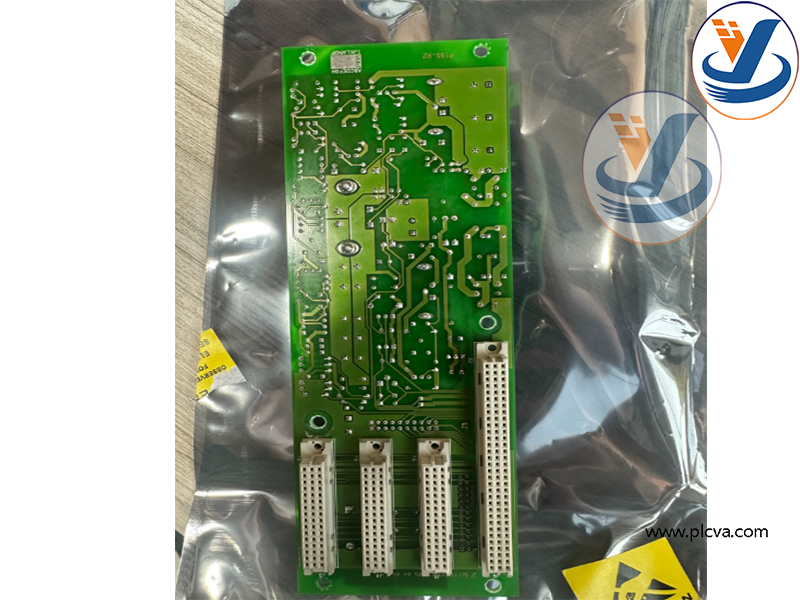

Emerson S600‑Series P155.R2 Power Plane Connector Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Functions

Backplane‑Level Power Distribution & Interconnection P155.R2 serves as the internal power‑plane motherboard inside Emerson S600 modular power system chassis. It delivers and distributes multi‑rail DC power to all plug‑in functional modules within S600 racks via high‑density backplane pin connectors. It establishes physical and electrical interconnections between MOB, MSC, NMAM sub‑boards and other slave modules of the S600 system.plcva.com
Signal Routing & Bus Interface Apart from power delivery, this PCB routes system control signals, monitoring signals and internal communication buses across different plug‑in cards. It transfers status feedback, fault signals and command signals between system control board and power‑conversion units, ensuring reliable internal data exchange inside the S600 hardware frame.
System‑wide Voltage & Current Monitoring Integrated sampling circuits on P155.R2 collect real‑time voltage, current signals from each power channel. It feeds monitoring data back to the main control logic for over‑voltage, over‑current and short‑circuit detection. It supports hardware‑level fault judgment and triggers corresponding protection actions when abnormal electrical conditions occur.
Hardware‑revision Optimized Industrial‑grade Reliability R2 stands for Revision 2 hardware iteration, with optimized PCB layout and component selection for improved signal integrity, anti‑noise performance and vibration resistance. It fits industrial cabinet installation; operating temperature covers typical industrial working range. Multi‑pin plug‑in connector design supports hot‑swap compatible module replacement within S600 rack, reducing equipment downtime during maintenance.
Mechanical Backbone for S600 Chassis Acts as the chassis‑mounted base carrier for S600 modular units. All daughter‑cards plug vertically onto P155.R2 backplane connectors, defining mechanical positioning and electrical mating for the whole S600 system architecture. No user program configuration required; it works purely as hardware‑level power‑and‑signal interface hardware.

Emerson S600‑Series P155.R2 Power Plane Connector Board

Applications / Purposes

Core internal backplane component for Emerson S600 modular power‑supply system Installed inside S600 rack cabinets, it is the essential underlying hardware for building multi‑module redundant power systems. It unifies power supply and internal signal interconnection for all functional sub‑modules of S600 power equipment.
Telecom & critical‑infrastructure power equipment Mainly deployed in telecommunication sites, data‑center power rooms and industrial uninterruptible power scenarios. It supports stable power distribution for communication equipment and critical industrial loads, realizing multi‑module parallel‑running and status monitoring functions.
Industrial automation & process‑control power‑supply cabinets Used for reliable power‑feed of DCS, remote‑terminal‑unit and field‑instrument power‑supply systems in oil‑gas, energy and utility industries. It guarantees stable power rail output and system fault detection for critical‑control hardware.
Spare‑part replacement and system maintenance for legacy S600 hardware P155.R2 is a vintage hardware component. It is widely used as replacement spare‑part for existing S600 installations, to repair aged power‑plane boards and restore normal operation of original S600 power systems.
