Main Function

1. Accepts incremental encoder differential A/B/Z phase pulse signals (RS‑422 / TTL level) from rotary pulse encoders.
2. Provides isolated encoder power supply (15 VDC / 24 VDC selectable) for external encoder hardware.
3. Conditions, filters and transfers encoder pulse feedback to ABB drive controller for closed‑loop speed and position calculation.
4. Delivers galvanic isolation between encoder field side and drive control circuits to suppress industrial electromagnetic interference.
5. Supports pulse input frequency up to 300 kHz, compatible with wide range encoder PPR resolutions.
6. Built‑in signal fault monitoring; LED status indicators for power, communication and encoder signal health diagnosis.
7. Communicates with drive unit via optical fibre link to improve noise immunity in heavy‑EMI industrial environments.

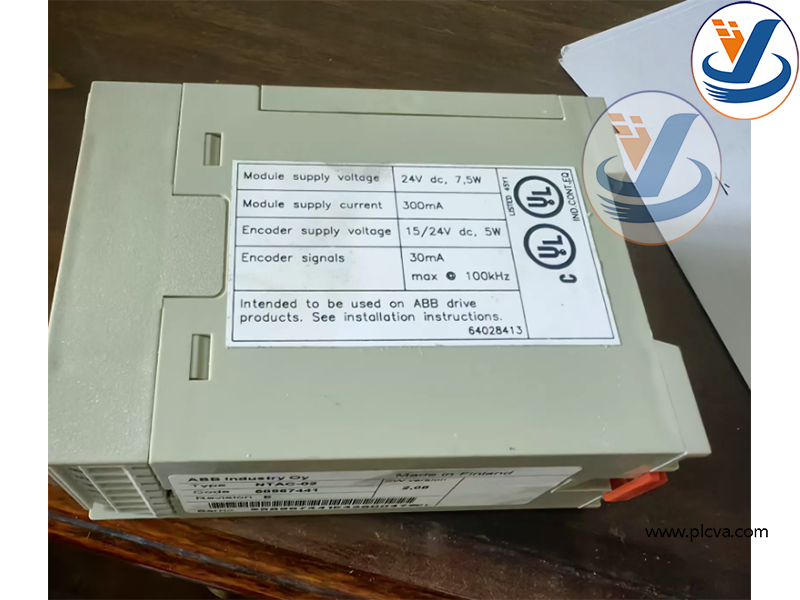

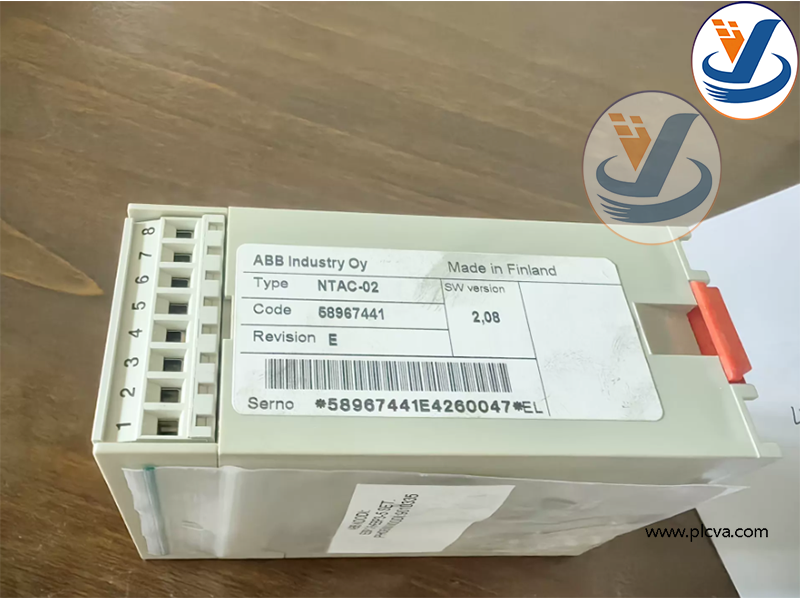

ABB NTAC‑02 (58967441) Pulse Encoder Interface Module

Application & Purpose

• Designed as feedback accessory for ABB ACS600 / ACS800 series variable frequency drives.
• Realizes high‑precision closed‑loop vector control for rotating motors, improving speed stability, torque response and positioning accuracy versus open‑loop operation.
• Typical rotating‑equipment deployment: cranes, hoists, paper machines, conveyors, extruders, metallurgical drives, printing machinery, large‑volume fan & pump high‑performance variable‑speed systems.plcva.com
• Converts physical shaft rotation (speed, rotation direction, home‑position Z‑marker signal) into drive‑readable feedback data for motor closed‑loop regulation.
• Widely used in pulp & paper, metal processing, material handling, chemical and general manufacturing industries.

ABB NTAC‑02 (58967441) Pulse Encoder Interface Module

ABB NTAC‑02 (58967441) Pulse Encoder Interface Module

Understand the lowest price, please contact via email: plcvarious@foxmail.com

More products: www.plcva.com

Many products are not yet on the shelves please contact us for more products.
