Main Function

Software‑configurable safety logic processing via PNOZmulti Configurator PC software, pre‑validated safety function blocks, no hard‑wired relay logic required.
Built‑in 20 safety digital inputs, 4 test‑pulse outputs, 4 semiconductor safety outputs, 2 relay safety outputs, 1 cascading I/O port; supports up to 8 pieces of PNOZmulti expansion modules for I/O capacity extension.

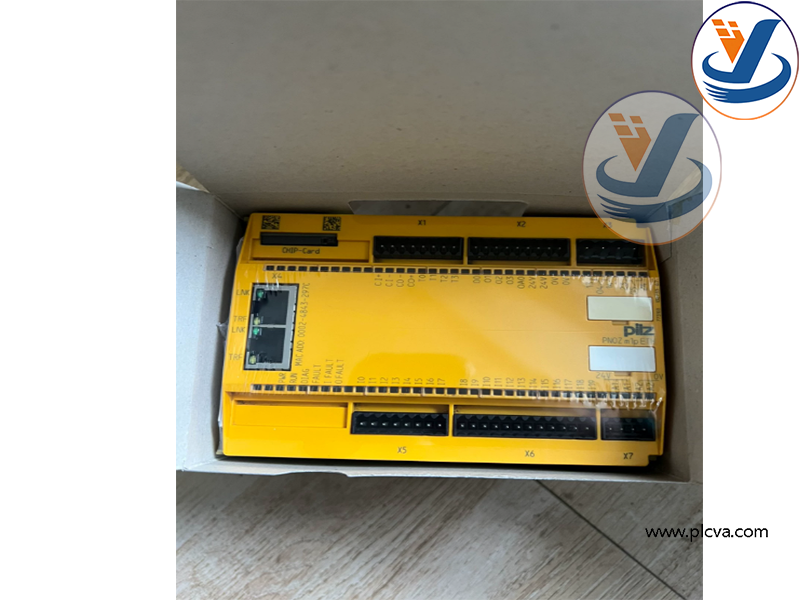

PNOZ m1p ETH (773103) Configurable Safety Controller Base Unit

Dual‑port Ethernet interface supports Modbus/TCP communication, realizes safety status data exchange, remote diagnosis and data interaction with plant PLC / DCS host systems.
Safety performance certified up to PL e (EN ISO 13849‑1), SIL CL 3 (EN IEC 62061) for machinery functional safety protection.
Monitors safety field devices: emergency‑stop buttons, safety gate switches, light curtains, two‑hand control stations, safety mats, enabling switches; executes safety‑related shutdown logic when hazardous conditions occur.
Supports safety‑bus cascading for multi‑controller safety interlock. Onboard LED indicators display power, channel status, fault and network communication status; stores configuration data on removable chip card for quick replacement without re‑programming.
24 VDC power supply, DIN‑rail mounting, short‑circuit and cross‑wire fault detection for safety input circuits.

PNOZ m1p ETH (773103) Configurable Safety Controller Base Unit

Core safety base unit for machine‑tool, packaging machinery, robot cells, conveyor lines, printing & textile equipment, press machinery, automotive production lines, general industrial automation sites.
Executes machinery safety functions: emergency stop protection, safety‑door access protection, safety light‑barrier monitoring, two‑hand operation control, safe stand‑still / speed monitoring, safety‑related equipment interlock trips.plcva.com
Separates safety control from standard PLC, avoids safety logic failure caused by main controller malfunctions. Realizes safety signal uploading to upper‑level automation network via Ethernet for plant‑wide monitoring and fault diagnosis.plcva.com
Widely adopted in mechanical manufacturing, automobile, logistics, food‑processing, rubber‑plastic industries to meet global machinery safety regulation requirements.
