1.Functions

Multi-source power switching & distribution: Accepts ship AC mains, DC power and backup battery power; distributes regulated power supply to all internal sub-boards and components inside the VR-3000 DCU.www.plcva.com
Backup battery charge management: Controls charging of the internal backup batteries. When main vessel power fails, it automatically switches to battery power to sustain continuous recording.
Power circuit monitoring & fault diagnosis: Continuously monitors AC input, DC input, battery voltage, fuse status and internal power rail health. It detects power loss, low battery, open circuit and overload faults, and sends fault signals to the main CPU and remote alarm panel (RAP).
Power status indication logic: Drives LED status signals for AC supply, DC supply, battery backup and system error, synchronizes power alarm signals to bridge remote alarm panel.
Over-current & overload protection: Integrates fuse and circuit protection functions to prevent damage to VDR mainboard from surge, short circuit and overload.www.plcva.com
Power isolation control: Controls power cut-off sequence for maintenance and battery replacement; provides safe power disconnection interface for service engineers.www.plcva.com

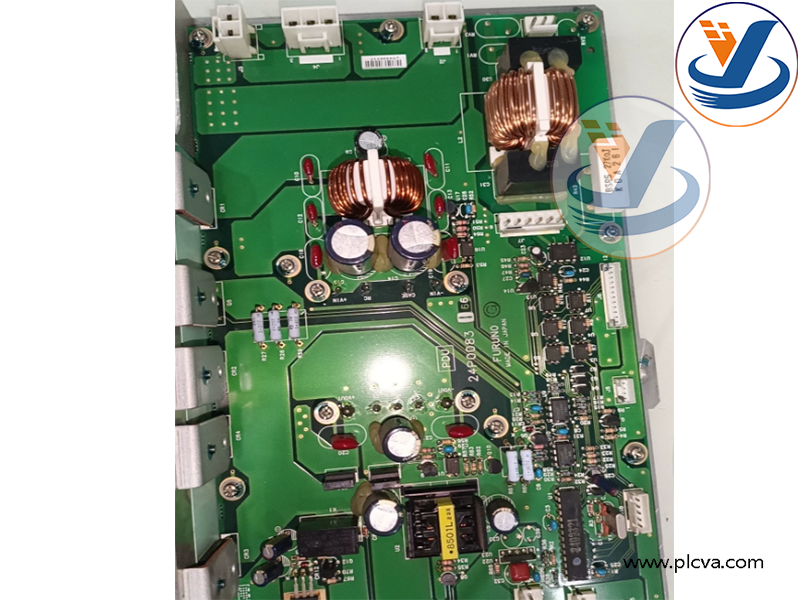

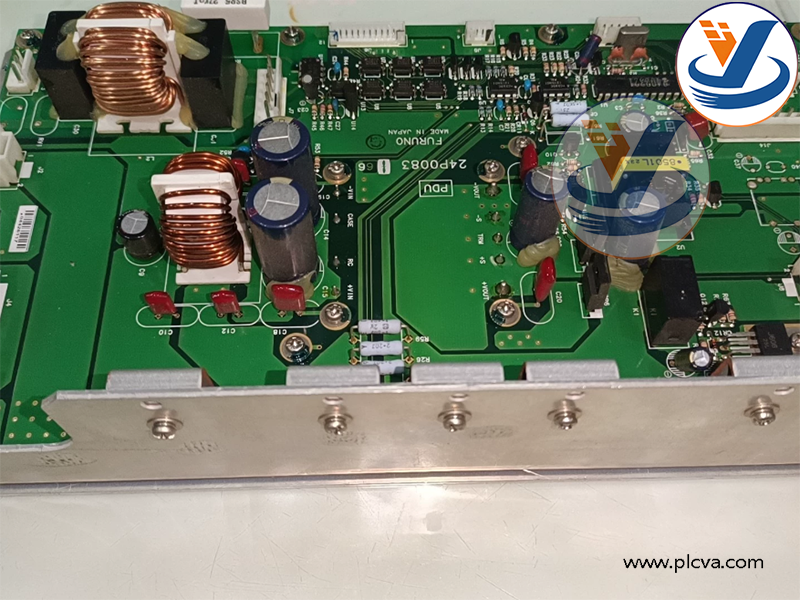

Furuno 24P0083 VR-3000 PDU Board Physical photo

Primary application: Core power control spare PCB for Furuno VR-3000 / VR-3000S Ship Voyage Data Recorder (VDR / S-VDR). Mounted inside the Data Collecting Unit .
System role: It is the power heart of VDR DCU. Without this board, the voyage data recorder cannot switch power sources, charge backup batteries or operate normally.
Marine safety objective: Guarantees uninterrupted VDR recording. In case vessel main power blackout, it switches to backup battery automatically to maintain at least 2 hours bridge audio recording, complying with IMO SOLAS VDR requirements.
Maintenance purpose: Used as replacement spare part for vessel repair, onboard service, class survey maintenance, when original PDU board fails or malfunctions.www.plcva.com
Applicable vessels: Cargo ships, tankers, passenger vessels required to install SOLAS-compliant VDR voyage data recording system.
