PNOZ mo1p 773500 Safety Semiconductor Output Expansion Module, Pilz PNOZmulti Classic Series
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Main Function
- Provides 4 safety‑rated semiconductor (solid‑state) high‑side outputs for expanding safety output capacity of PNOZmulti base controller.
- Inherits safety configuration parameters from connected base unit via internal module bus; no separate programming required. Configured by PNOZmulti Configurator PC software.
- Redundant self‑monitoring safety circuit architecture, achieves safety rating up to PL e (EN ISO 13849‑1), SIL CL 3 (EN IEC 62061).

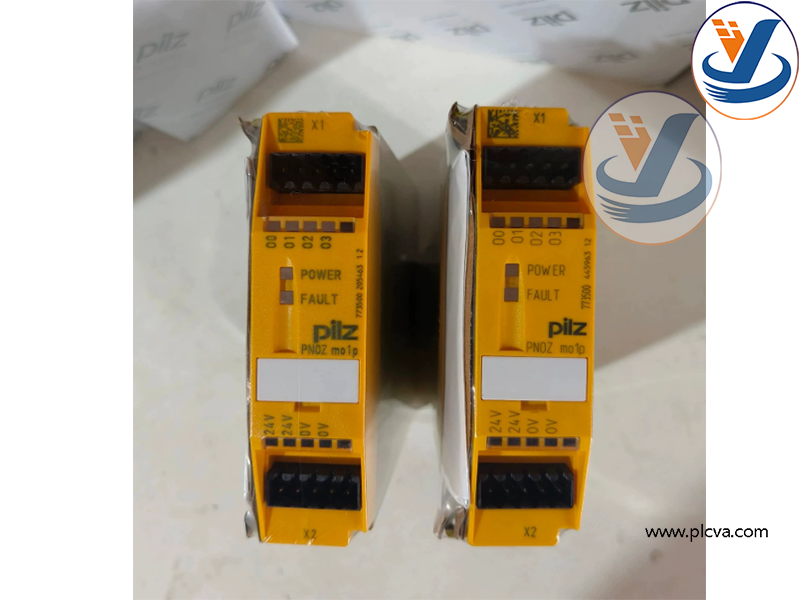

PNOZ mo1p 773500
- Supports high‑frequency switching capability for fast‑response safety actuators; each output channel carries short‑circuit and cross‑wire fault detection, fault status is fed back to base controller for diagnosis.
- DIN‑rail mounting, hot‑plug capable within PNOZmulti module stack; LED indicators display power supply and each channel working / fault status for quick‑on‑site troubleshooting.
- 24 VDC operating power supply, IP20 housing protection; connects to base unit by side‑mount internal bus connector, easy cabinet‑layout expansion.
PNOZ mo1p 773500
Application & Purpose
- Used together with PNOZmulti base safety controller to increase quantity of safety semiconductor outputs for machine safety systems.
- Drives safety‑related field actuators: safety contactor coils, safety‑valve coils, warning lamps, safety‑relevant 24VDC loads.
- Widely applied for machine‑tools, packaging machinery, robot safety cells, press equipment, automotive assembly lines, conveyor systems, printing machinery.
- Executes safety‑related shutdown logic for emergency stop, safety‑gate interlock, safety‑light‑curtain protection, two‑hand control. When safety hazard occurs, outputs cut off load circuits to bring machinery into safe state.
- Separates safety control from standard PLC system, satisfies global machinery safety regulatory requirements for factory automation sites.
PNOZ mo1p 773500
PNOZ mo1p 773500
