1.Main Functions

1. Soft‑PLC real‑time control & motion control execution Run TwinCAT 2 / TwinCAT 3 runtime environment, execute IEC 61131‑3 standard PLC programs including Structured Text, Ladder Diagram, Function Block Diagram. Support high‑performance motion control, interpolated multi‑axis positioning, NC PTP and CNC motion tasks. Realize deterministic cyclic control logic, interlock protection and sequence automation for industrial machines.
2. Flexible field‑bus and industrial communication Dual independent Gigabit Ethernet ports for EtherCAT master, Modbus‑TCP, TCP/IP. Optional add‑on interface modules support PROFINET RT, PROFIBUS‑DP, CANopen, serial RS232/RS485. Built‑in E‑bus / K‑bus interface for direct connection with Beckhoff EL‑series and KL‑series I/O terminals, automatic bus recognition. 4 × USB 2.0 for local program download and peripheral connection; DVI‑I interface supports local display and HMI outputBeckhoff.More products: www.plcva.com

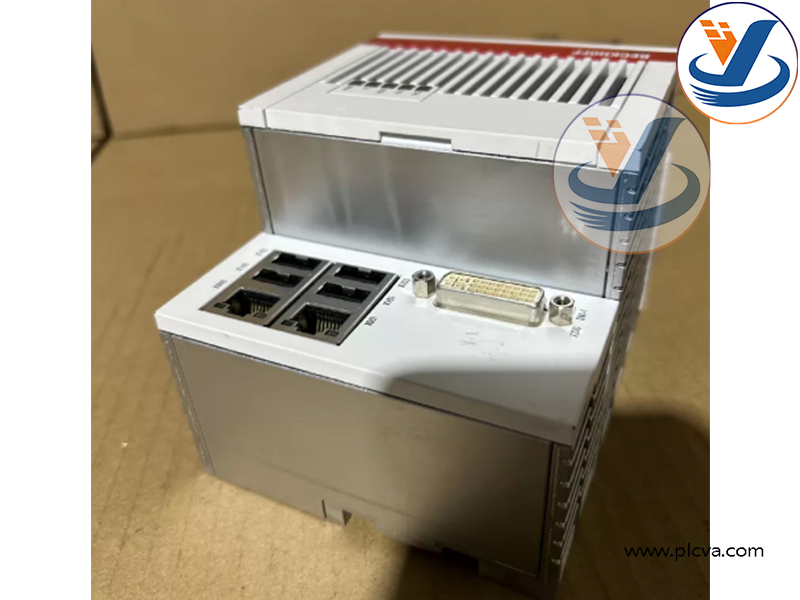

Beckhoff CX5140 Embedded Controller

1. Data storage, system configuration and real‑time clock CFast and microSD slots store operating system, TwinCAT runtime, user application, machine parameters and historical fault logs. Battery‑backed real‑time clock maintains system time after power loss. Integrated short‑term UPS protects memory data during power‑supply fluctuation.
2. Hardware diagnosis and status indication Multi‑LED status indicators display power supply, TwinCAT runtime status, flash access and field‑bus communication status. Complete system self‑diagnosis monitors CPU, memory, bus link and power‑supply health, generates alarm codes and event logs for on‑site troubleshooting.

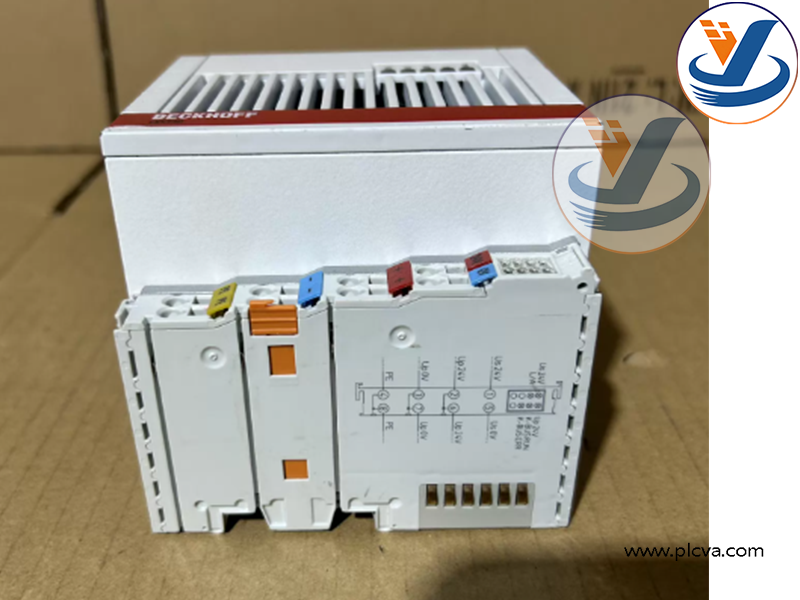

Beckhoff CX5140 Embedded Controller

1. Fan‑less rugged industrial hardware design Passive cooling without fan, zero maintenance for continuous operation. Operating temperature range:‑25 °C ~ +60 °C, anti‑vibration and anti‑shock performance complies with EN 60068‑2‑6 / EN 60068‑2‑27. High EMC immunity adapts to harsh electrical cabinet environments in factories. IP20 protection grade, compact DIN‑rail installation structure.
2. Visualization, gateway and system integration capability Support local display output via DVI‑I port. Can run HMI visualization software locally. Serve as protocol gateway for different field‑bus systems. Exchange real‑time data with SCADA, MES and upper‑level factory systems via Ethernet.

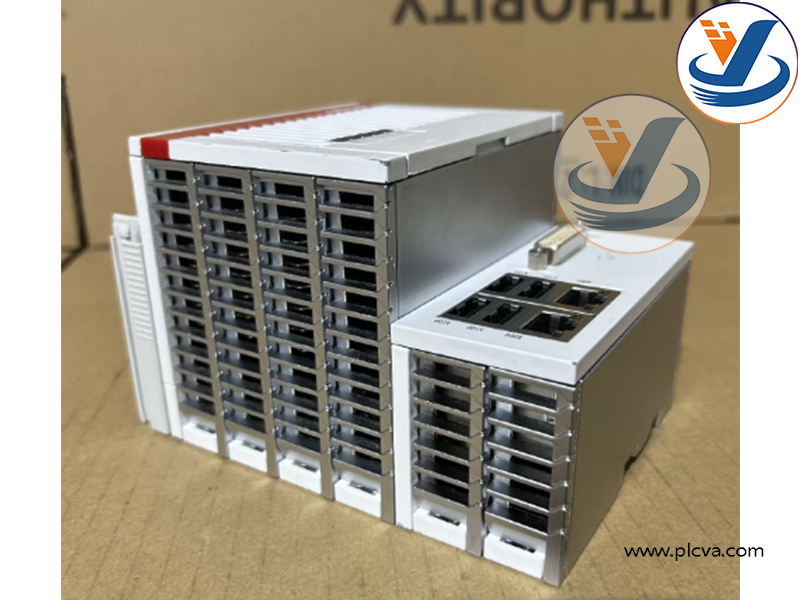

Beckhoff CX5140 Embedded Controller

2. Applications & Purpose

CX5140 is a high‑performance embedded soft‑PLC controller widely used for machine‑level automation and motion‑control applications.More products: www.plcva.com

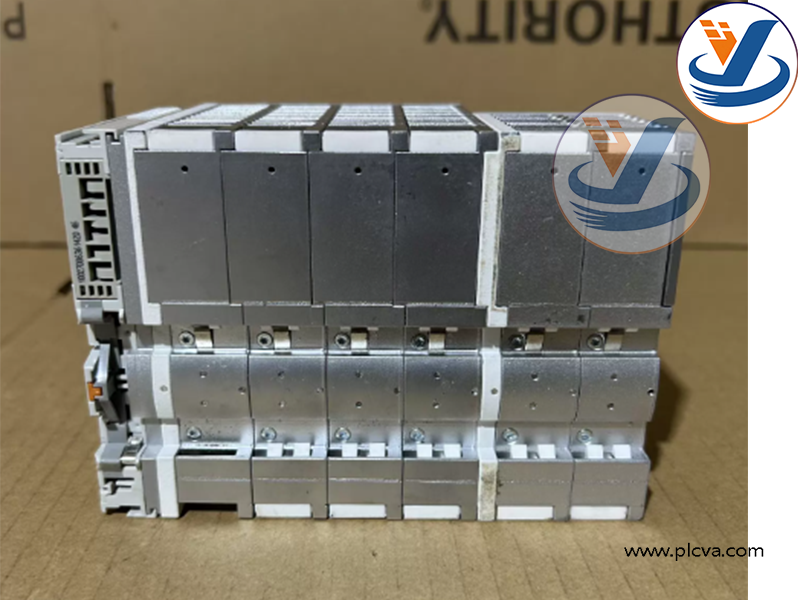

Beckhoff CX5140 Embedded Controller

Typical deployment scenarios:

• Machine tool, packaging machinery, printing equipment, plastic injection machinery
• Material handling, conveyor systems, robotic auxiliary control stations
• Water‑treatment, energy‑generation and general process‑automation skids
• Production‑line automation with multi‑axis interpolated motion requirements
• Retrofit and spare‑part replacement for existing Beckhoff CX5100‑series automation systems

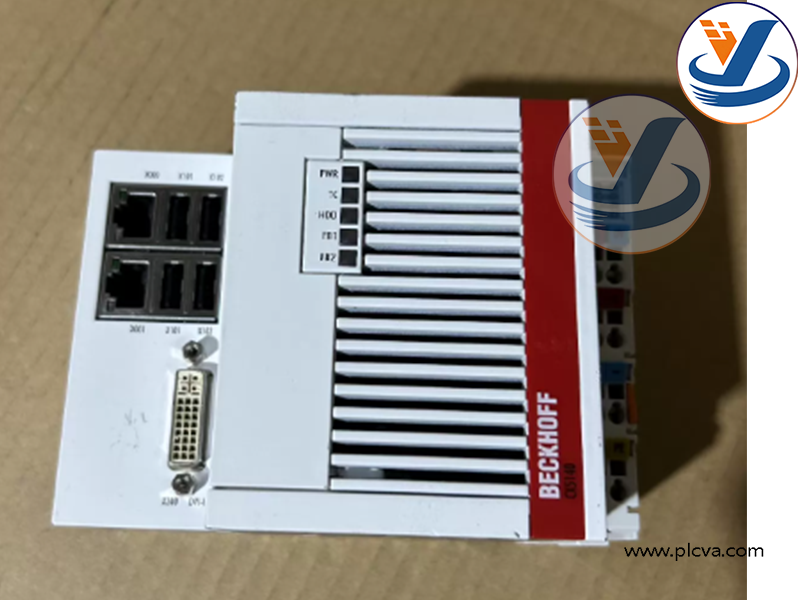

Beckhoff CX5140 Embedded Controller

Core operational purposes:

• Serve as main automation controller for complete machines, run TwinCAT soft‑PLC to implement logic control, interlock protection and closed‑loop regulation
• Collect field signals via E‑bus / K‑bus I/O terminals, output control commands to drives, actuators and sensors
• Execute high‑performance multi‑axis motion control for positioning, synchronization and interpolation
• Realize multi‑protocol communication with HMI, servo drives and upper‑level management systems
• Store machine recipes and fault records, support local display and remote monitoring
• Deliver stable fan‑less operation for industrial cabinets; replace defective unit to restore full‑system functions for existing equipment.

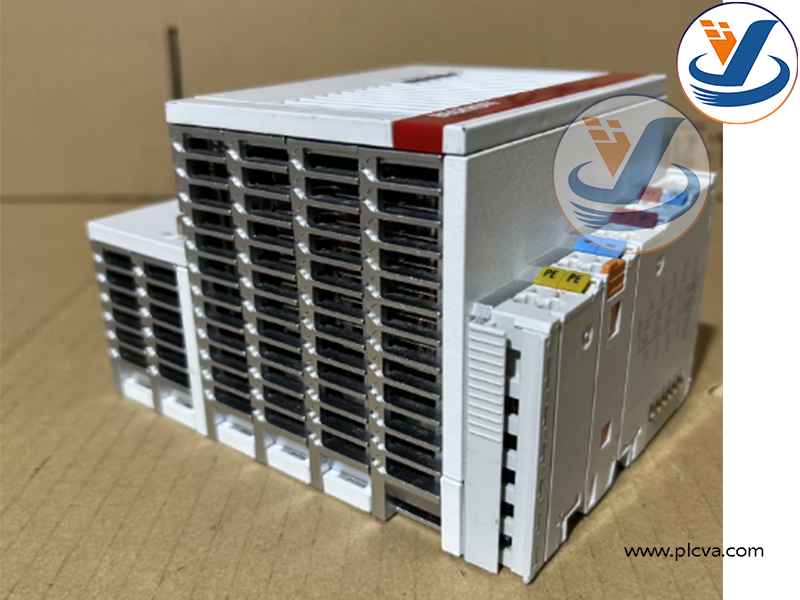

Beckhoff CX5140 Embedded Controller
