1.Core Functions

Laser real-time master control: Acts as the central processing unit of the TruDisk laser source, executes closed-loop regulation of laser output power at microsecond-level sampling intervals.
Multi-sensor data acquisition: Collects real-time signals from temperature sensors, optical power detectors, diode current sensors, cooling flow & pressure sensors inside the laser unit.
Precision time synchronization: Implements Precision Time Protocol (PTP) to time-stamp all sensor signals for consistent, synchronized measurement data.
Laser process parameter management: Stores, loads and executes laser process recipes, including pulse profile, power curve, and beam parameter settings for cutting / welding.
Fault diagnosis & condition monitoring: Continuously monitors component health status, records operating logs, triggers alarms for abnormal states, supports predictive maintenance for TRUMPF Condition Based Services.
Communication interface: Interacts with the machine CNC controller via industrial bus, exchanges laser status, setpoint commands and quality data; supports network connection for TruConnect Industry 4.0 data upload.
Safety interlock logic: Handles laser safety interlock signals, emergency stop and shutter control to ensure safe laser emission on/off logic.plcva.com

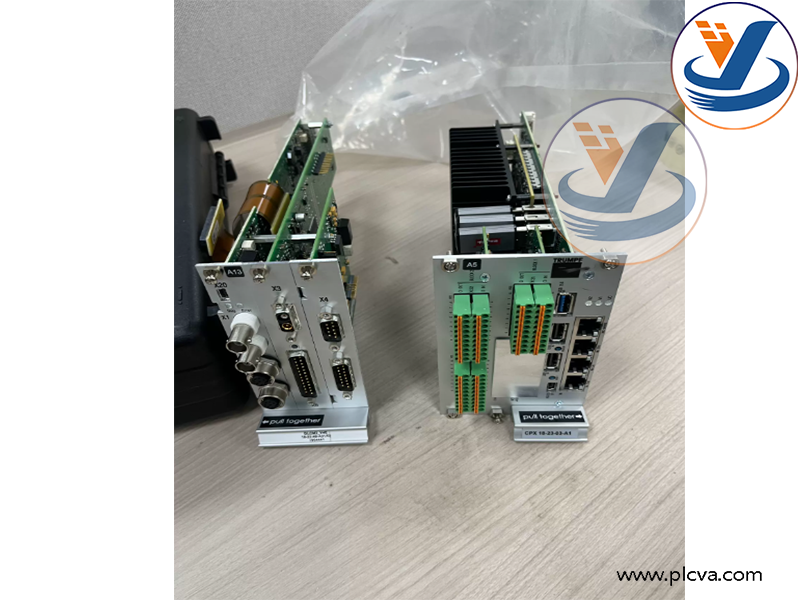

TRUMPF CPX Mainboard

TRUMPF TruDisk disk solid-state laser sources: The exclusive embedded control core for TruDisk series fiber / disk lasers.www.plcva.com
Laser metal cutting: 2D & 3D sheet / tube laser cutting systems (TruLaser series machines).
Laser welding: Automotive body welding, battery welding, metal precision welding applications.
Laser surface treatment: Laser hardening, cladding and metal additive manufacturing.
Industrial production line: Integrated into automated laser workcells, supports production quality traceability via process data logging.
