Main Functions

1. Automatic Voltage Regulation (AVR) Adopts high‑speed adaptive PID control algorithm. It dynamically adjusts excitation current applied to generator field winding, stabilizes generator terminal voltage under variable load conditions, and realizes fast voltage correction during disturbance events.

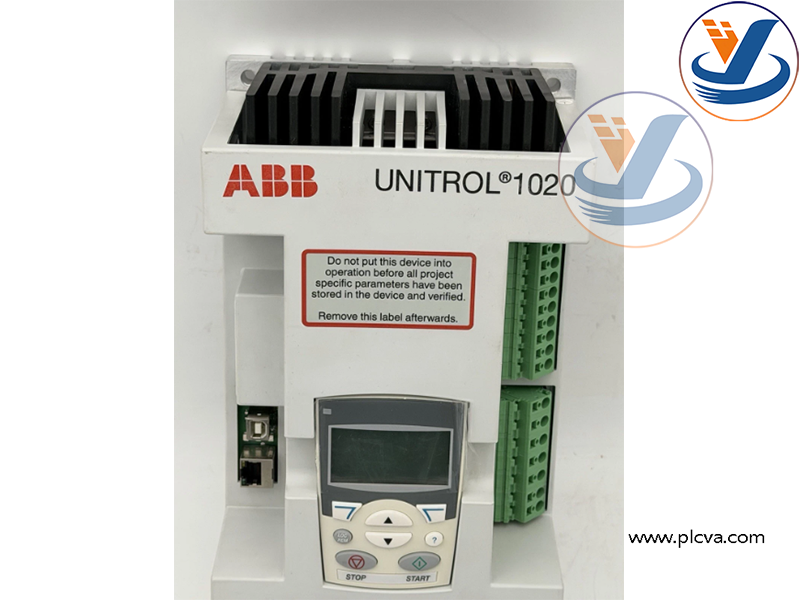

ABB UNITROL 1020‑0007 FULL+PSS

1. Power System Stabilizer (PSS) Built‑in PSS function suppresses low‑frequency power oscillation of grid‑connected synchronous units, improves power‑system damping and transient stability for parallel‑operation scenarios.
2. Power Factor & Reactive Power Control Supports constant power‑factor mode and constant reactive‑power mode. Optimizes generator reactive‑power output, avoids reactive‑power overload, and improves power‑grid quality.
3. Parallel Operation & Load Sharing Realizes reactive‑power load sharing for multiple synchronous generators running in parallel, keeps balanced reactive‑load distribution among units.
4. Generator Condition Monitoring & Protection Monitors rotating diode health status of brushless exciters. Implements multiple protection logics: excitation over‑current, loss‑of‑excitation, over‑excitation, underexcitation, loss‑of‑synchronization alarm and trip signals.
5. Grid Synchronization Assistant Provides auxiliary logic for generator‑to‑grid synchronization, reduces manual operation difficulty for unit paralleling to utility grid.
6. Digital Communication & Local HMI Equipped with local LCD HMI for parameter setup, status reading and fault diagnosis. Supports Modbus, Ethernet, USB interfaces; compatible with ABB CMT1000 configuration tool for remote monitoring, parameter modification and firmware upgrade.
7. IGBT‑based Excitation Power Output Continuous excitation output current up to 20 A, short‑time overload capacity 40 A for 10 seconds, compact panel‑mount hardware structure.

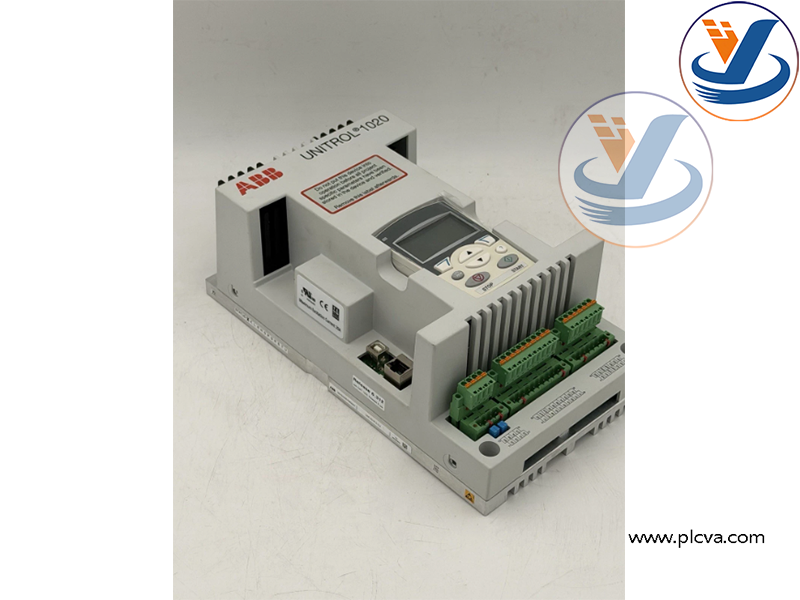

ABB UNITROL 1020‑0007 FULL+PSS

Primary Applications

• Small‑to‑medium synchronous generators (0.5‑20 MW): Hydro‑power plants, thermal power plants, diesel‑engine generator sets, gas‑engine power stations.plcva.com
• Industrial captive power plants: On‑site power generation for petrochemical, mining, heavy‑industry factories, guarantee stable self‑power supply and grid interconnection capability.
• Marine & offshore power systems: Shipboard synchronous generators, offshore platform power generation units, meets marine‑grade environmental adaptability requirements.
• Distributed power generation projects: Grid‑connected synchronous distributed generation units, complies with grid‑code requirements for excitation control and oscillation suppression.
• Retrofit & replacement: Upgrading old analog excitation systems; spare replacement for existing UNITROL1020 excitation cabinets in power plants.

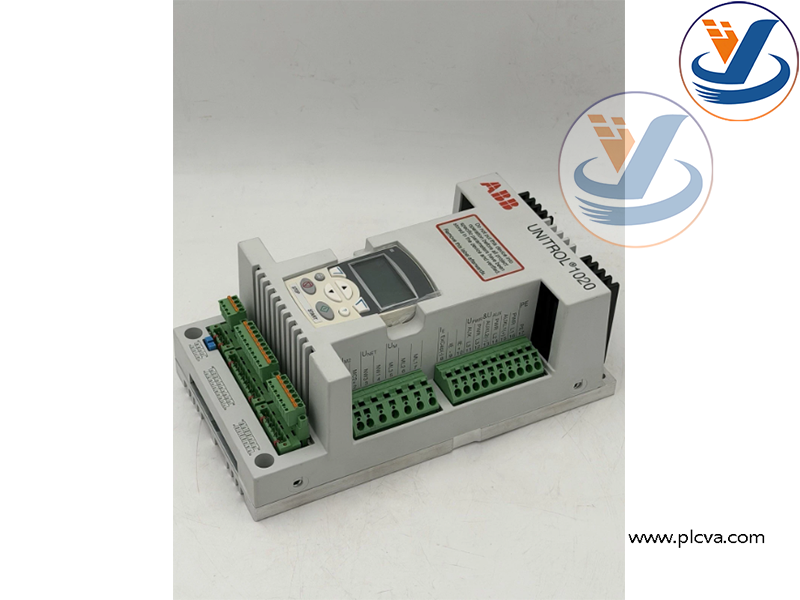

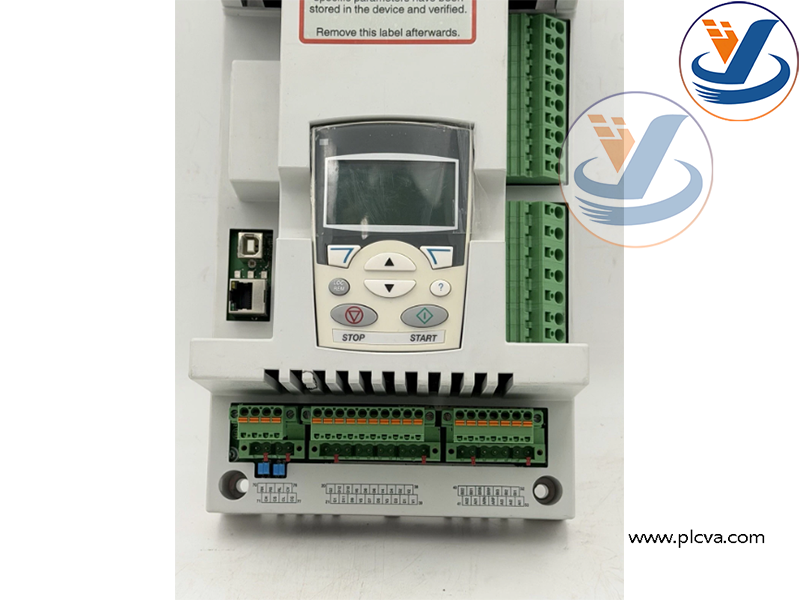

ABB UNITROL 1020‑0007 FULL+PSS

ABB UNITROL 1020‑0007 FULL+PSS

ABB UNITROL 1020‑0007 FULL+PSS
