Eiconcard S92 V2 Intelligent Multi-protocol WAN PCI Communication Adapter Part No. 033-071-02
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Main Functions
- Onboard Independent Protocol Processing The integrated Motorola 68360 RISC processor executes link-layer protocols locally instead of relying on host CPU. It handles frame encoding/decoding, error checking, retransmission and timing control, minimizing host processor load for stable long-distance communication.More products: www.plcva.com
- Dual VHSI High-speed Serial Ports 2 × VHSI ports, each supports full-duplex transmission speed up to 2 Mbps. The VHSI interface can adapt to different physical standards via external cables: X.21, V.35, V.24, EIA-530, RS-449 for leased line and synchronous serial connections.
- Multi-protocol Support Supports classic WAN communication protocols including X.25, Frame Relay, HDLC, SDLC and PPP. It can operate over dedicated leased lines or dial-up synchronous links for industrial and legacy telecom data transmission.
- WAN Routing & Data Gateway Works as a WAN gateway for LAN-to-WAN routing. It routes IP or X.25 packets between local Ethernet LAN and remote serial WAN nodes, enabling cross-site data exchange for industrial control systems and legacy server networks.
- Link Diagnostics & Status Monitoring Onboard hardware monitors line signal quality, carrier status, frame errors, CRC faults and port link up/down status. LED indicators show card power, port configuration and link activity. Fault events can be reported to host operating system for alarm and maintenance.plcva.com
- Cross-platform Driver Support Drivers available for legacy Windows NT, Windows 2000 and Linux. Configuration utility ECADMIN allows port parameter setup, protocol selection and online diagnostics.plcva.com

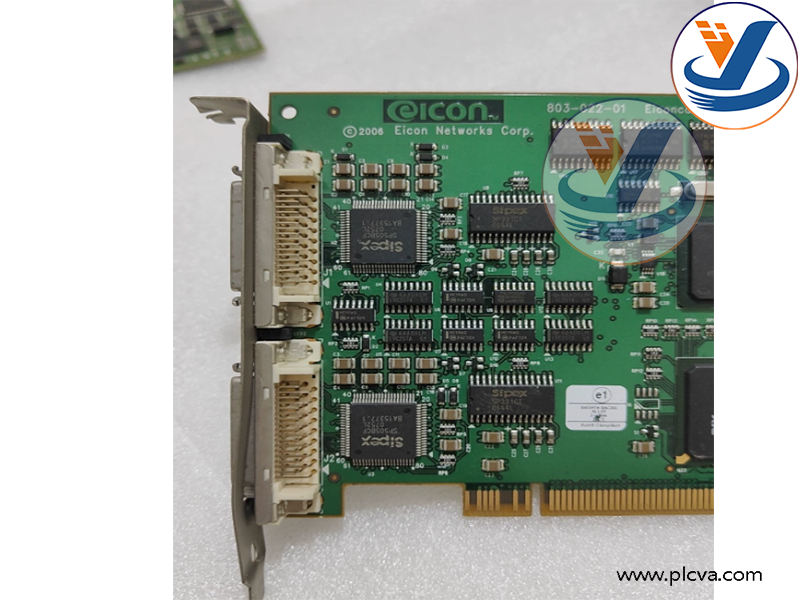

Eiconcard S92 V2 Intelligent Multi-protocol WAN PCI Communication Adapter

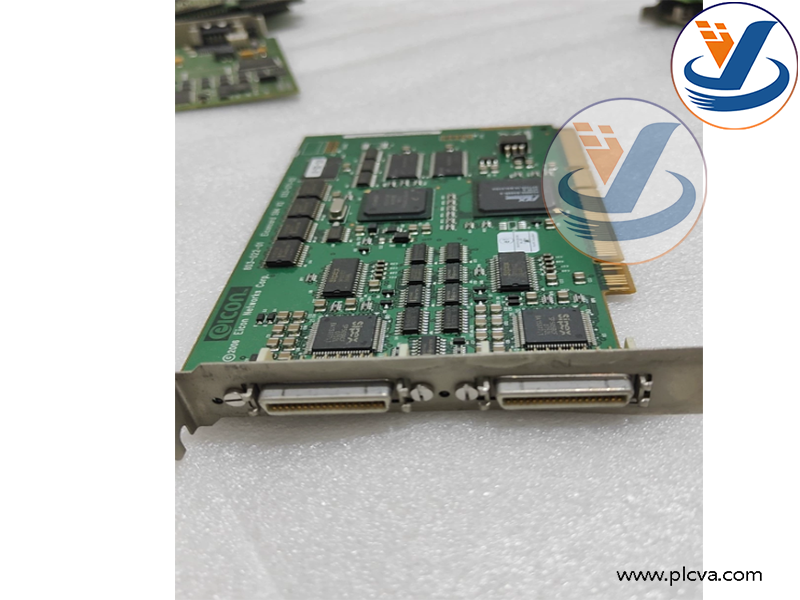

Eiconcard S92 V2 Intelligent Multi-protocol WAN PCI Communication Adapter
Applications & Purpose
This PCI communication card is deployed in industrial servers and control PCs to build legacy wide-area serial communication links. Typical applications:
- Industrial remote SCADA & telemetry systems for oil, gas and water utilities
- Legacy X.25 / Frame Relay leased-line data gateway
- Factory inter-site serial data communication for old automation control systems
- Banking, transportation and telecom legacy network server connectivity
- Serial protocol conversion and remote equipment data collection
Notes: Eicon S92 V2 is End-of-Life (EOL). Eicon Networks was acquired by Dialogic. These cards are only available as spare replacement parts for existing legacy systems. It is not an Ethernet card or fieldbus card; it is a synchronous serial WAN adapter.
Eiconcard S92 V2 Intelligent Multi-protocol WAN PCI Communication Adapter
