Keysight 82350C High Performance PCI-GPIB (IEEE-488) Interface Card
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
Main Functions
- PCI to GPIB Protocol Conversion It acts as a hardware bridge between the PC PCI bus and the IEEE-488 GPIB instrument bus. The onboard XC6SLX4CGS255 FPGA handles GPIB protocol timing, handshaking and frame processing independently, offloading protocol workload from the host PC CPU. It supports up to 14 GPIB instruments connected in daisy-chain topology on one GPIB port.
- High-speed Buffered Data Transmission Built-in hardware buffer enables maximum GPIB transfer speed up to 900 KB/s. The buffer decouples PCI bus and GPIB data transfer to eliminate speed mismatch, improving throughput and stability during continuous measurement data acquisition.
- Full IEEE-488 Master Controller Functions Supports GPIB controller-in-charge operation, including device addressing, serial polling, parallel polling, trigger output, remote/local switching, and instrument reset. It can send SCPI command strings to test instruments and receive measurement readings back from meters, power supplies, signal generators and oscilloscopes.
- Flexible Mechanical Installation Supports both standard full-height bracket and low-profile bracket. It can be fitted into standard PC chassis or compact short-height industrial PCs, adapting to different test bench cabinet layouts.www.plcva.com
- Plug-and-Play & Multi-core OS Support Compliant with PCI plug-and-play specification. It supports multi-processor Windows systems. Works with Keysight IO Libraries Suite for instrument resource management, automatic detection, address configuration and debugging. It also supports secondary development via VISA, LabVIEW, C/C++, VB and .NET.
- Bus Monitoring & Diagnostic The card can capture GPIB bus traffic, detect communication timeouts, handshake errors and device faults. Users can view instrument status and bus error logs through IO Libraries diagnostic tools for test system troubleshooting.plcva.com

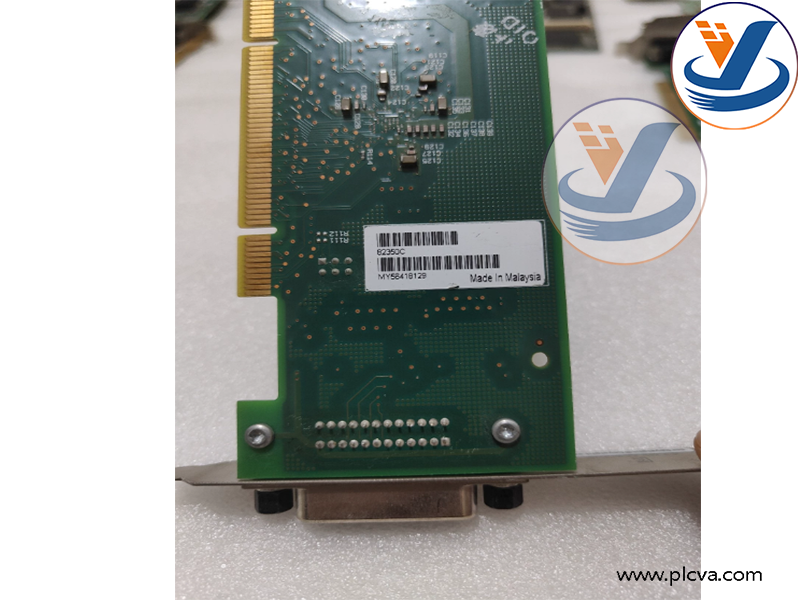

Keysight 82350C High Performance PCI-GPIB (IEEE-488) Interface Card

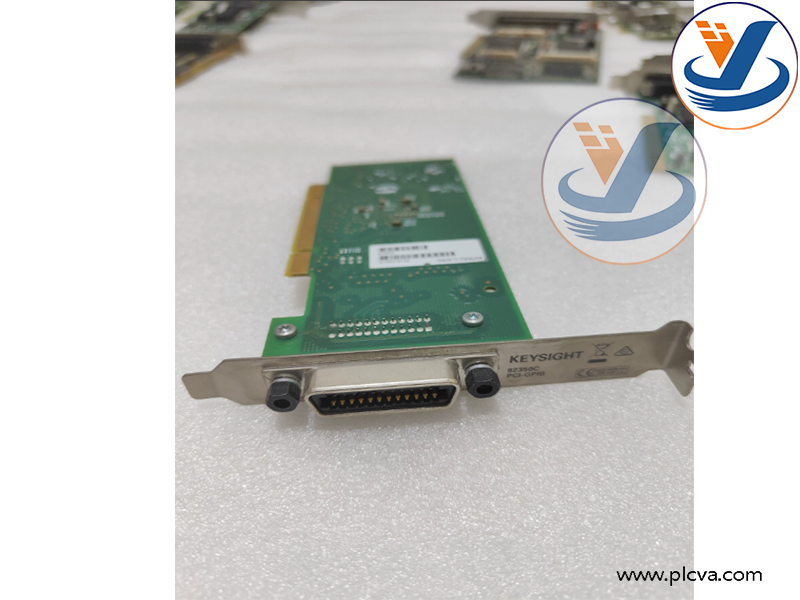

Keysight 82350C High Performance PCI-GPIB (IEEE-488) Interface Card
Applications & Purpose
The 82350C PCI-GPIB card is widely used in automated test systems to connect PCs with legacy GPIB test & measurement instruments. Typical applications:
- Electronic product automated production test benches (ICT / FCT functional test)
- Semiconductor component characterization and parameter measurement
- R&D laboratory measurement automation: oscilloscopes, spectrum analyzers, signal sources, power meters
- Aerospace & defense component verification test systems
- Calibration laboratory automatic instrument calibration stations
- Manufacturing quality inspection and data logging systems
Notes: Keysight 82350C is End-of-Life (EOL). It is a legacy PCI version GPIB card, replaced by PCIe models such as 82351A/82351B. It is supplied mainly as spare replacement parts for existing automated test systems. It is NOT a motion control card; it is purely an instrument communication interface card for test & measurement instruments.plcva.com
