1.Functions

This is a PCIe 2.1 x8 industrial frame grabber board for Camera Link industrial cameras:

1. Image acquisition: Capture digital image data from 1-channel Base / Medium / Full Camera Link camera, supports up to 85 MHz pixel clock and 80-bit image mode.
2. Onboard buffering: 1GB DDR SDRAM onboard memory prevents frame loss during high-speed continuous capture.www.plcva.com
3. Camera Link 2.1 compliant, deterministic low-jitter image grabbing for synchronized machine vision inspection.
4. PoCL (Power over Camera Link) support: Supply power to compatible PoCL cameras over Camera Link cable, extend cable transmission distance.
5. Auxiliary I/O: Built-in multi-channel opto-isolated / TTL / LVDS GPIO for hardware trigger, encoder signal, lighting control and signal handshake between camera and host PC.plcva.com
6. Host interface: PCIe 2.1 x8 half-length single-slot card, compatible with Windows and Linux OS.
7. Connector: HDR26 mini Camera Link interface, comes with cable adapter for auxiliary I/O signals.

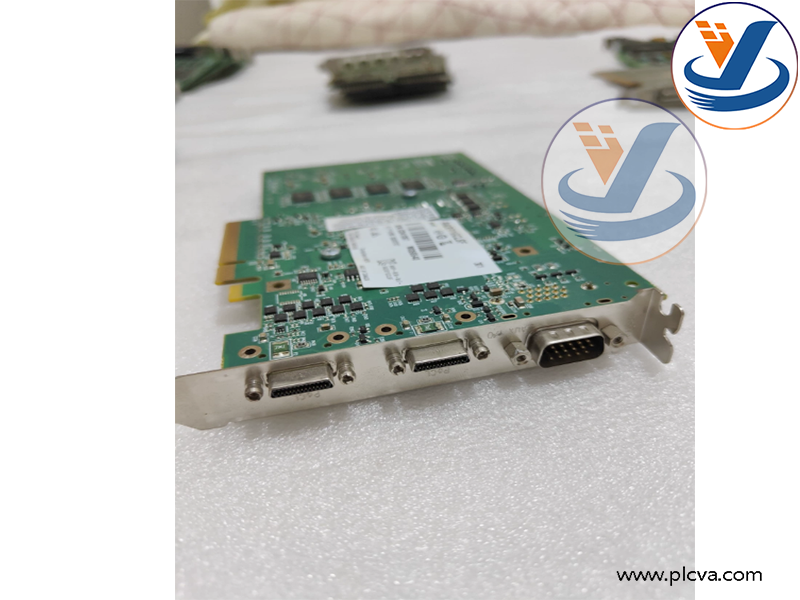

Matrox RADEV1GCLSF Y7469-02 REV.A

2. Applications / Purpose

It is widely used in high-performance machine vision systems with Camera Link cameras:

• Semiconductor inspection: Wafer inspection, die inspection, PCB AOI (Automated Optical Inspection)
• Flat panel display inspection: LCD / OLED panel defect detection
• High-speed web / roll material inspection: Paper, film, foil, textile line scan inspection
• Precision metrology & dimensional measurement
• Quality inspection for automotive parts, electronic component visual testing
• Scientific imaging, high-speed line-scan and area-scan camera acquisition

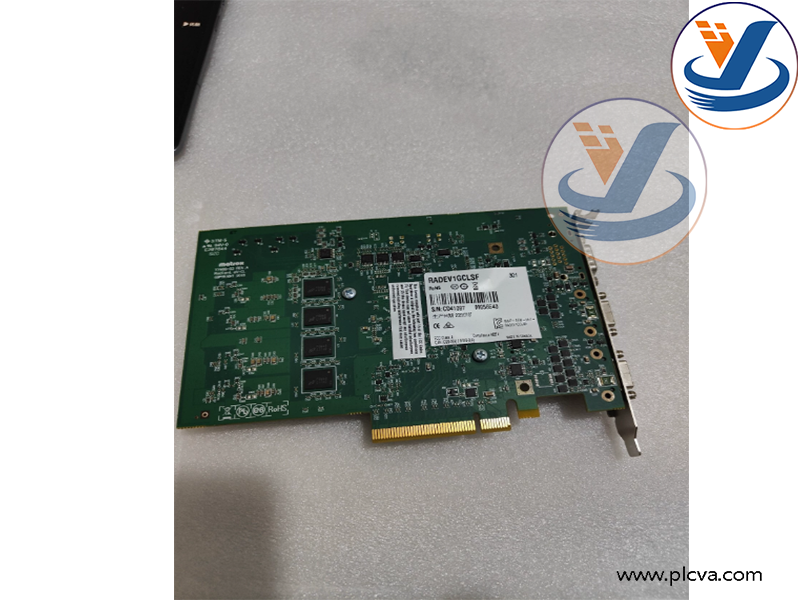

Matrox RADEV1GCLSF Y7469-02 REV.A

Matrox RADEV1GCLSF Y7469-02 REV.A
