Honeywell CLCN10, Part No. 51305072-600, CLCN-B Dual Node LCN Coax B Paddle Board

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Function

It is a redundant Local Control Network (LCN) communication interface paddle board, designed for dual-node chassis, responsible for connecting the controller chassis to the LCN Coaxial B cable via BNC coaxial connectors.www.plcva.com
Works in pair with CLCN-A board to build dual redundant LCN network. When primary LCN-A communication path fails, LCN-B path can automatically take over to maintain continuous data transmission, avoid system communication outage.
It carries node address jumper pack for hardware LCN node address configuration.
It processes high-speed digital communication between TDC3000 system nodes: controllers, history modules, operator universal stations and field I/O modules.
Built-in isolation and anti-electromagnetic interference circuit to stabilize signal transmission under heavy industrial noise environment.
Supports LCN fiber extension modules (LCNE2 / XLCNE2) to extend the transmission distance of the local control network.

Note: This board is a network communication paddle board, not analog/digital signal acquisition I/O card. It does not collect field sensor 4-20mA or digital switching signals directly

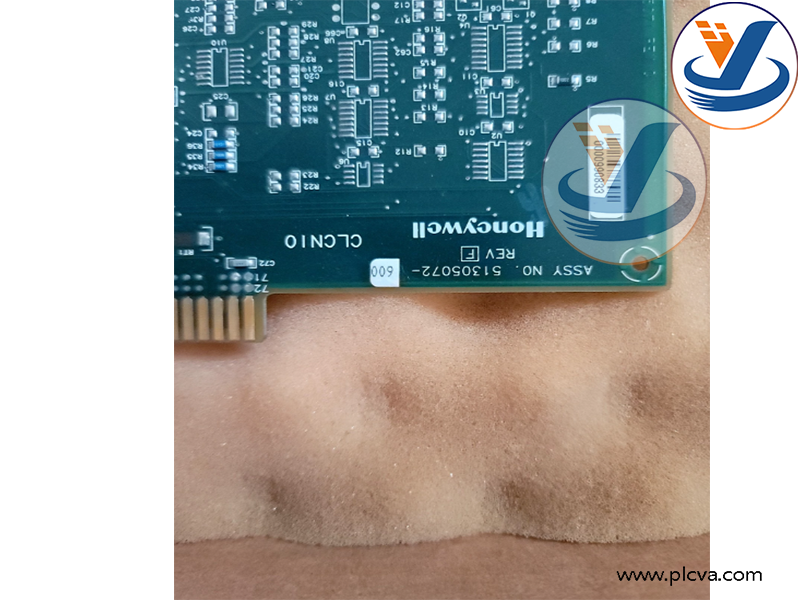

Honeywell CLCN10, Part No. 51305072-600

Purpose / Application

System Compatibility: Mainly applied to Honeywell TDC3000 DCS and Experion PKS distributed control platform (legacy TPN Total Plant Network architecture).
Industrial Scenarios: Critical continuous process industries including oil & gas, petrochemical, power generation, chemical plant, refining, pulp & paper.
Core Usage: Build redundant LCN control network backbone for large process plants. Guarantee uninterrupted communication for process monitoring, closed-loop control, alarm management and historical data recording.plcva.com
Status: This is an EOL (End of Life) legacy industrial board, no longer produced by Honeywell. It is widely used for spare part replacement and maintenance of existing old DCS systems worldwide.
