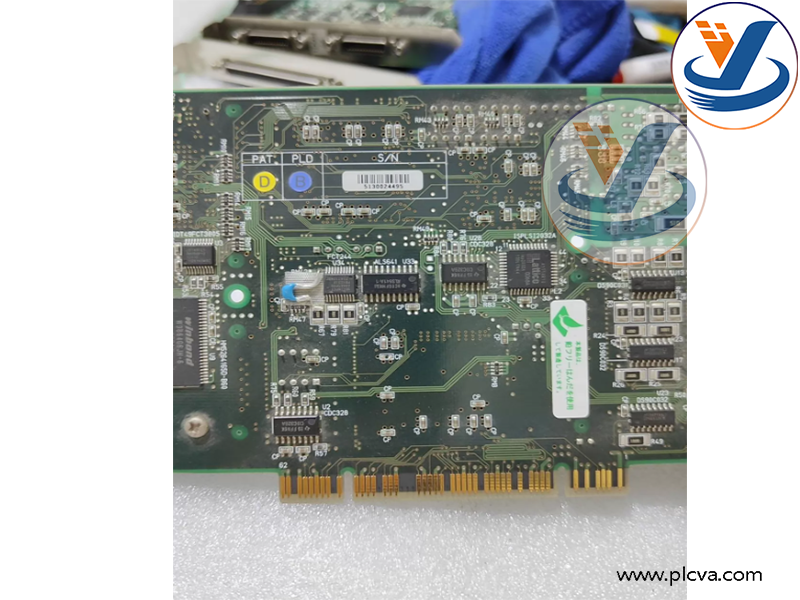

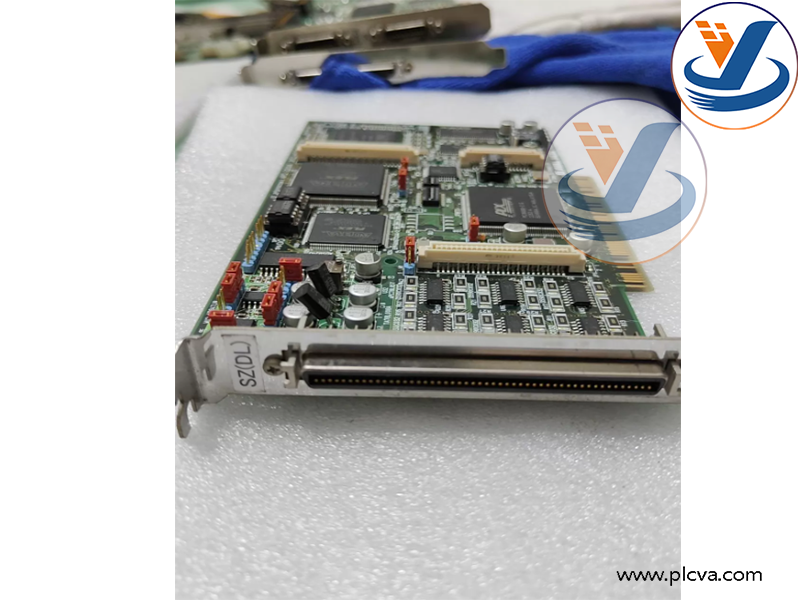

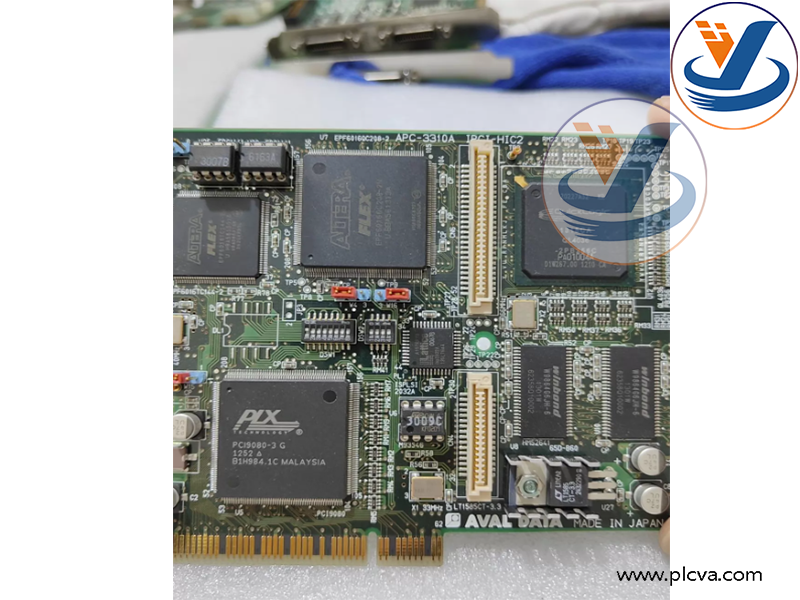

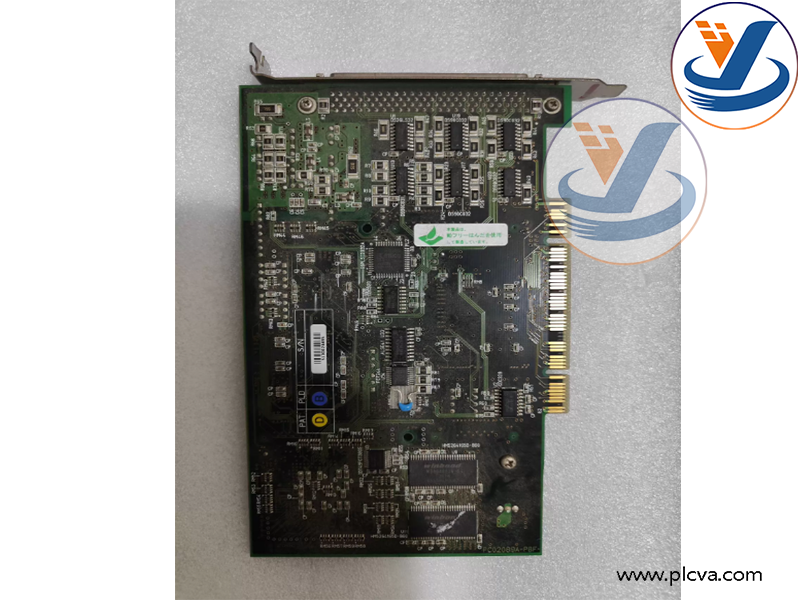

AVAL DATA APC-3310A IPCI-HIC2
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Core Functions
- High-speed industrial image grabbing: Receive image signals from line-scan or area-scan industrial cameras, digitize and capture raw image data into PC host memory.www.plcva.com
- On-board Mega FIFO buffer (32MB): Adopt FIFO storage architecture to cache continuous image streams; support DMA transmission, avoid frame loss during high-speed continuous acquisition, max throughput approx.100MB/s.
- Synchronous trigger & encoder interface: Accept external TTL trigger input, output camera control timing signals; connect rotary encoder for position-synchronized image capture, widely used for web/conveyor scanning.
- Camera timing control: Generate sampling clock, line trigger and exposure control signals for industrial cameras via RS-422 differential signals.
- Hardware-assisted preprocessing (with optional PSM-3310 add-on module): Shading correction, partial pixel extraction and image data redistribution on hardware level to reduce host CPU load.
- PCI bus communication: 32/64-bit PCI bus (33MHz /66MHz), compatible with industrial PC.
- Software SDK support: Provide Windows/Linux driver and SDK library for secondary development of machine vision programs.plcva.com
AVAL DATA APC-3310A IPCI-HIC2
AVAL DATA APC-3310A IPCI-HIC2
2. Applications & Usage
- Industrial online visual inspection: Web inspection, printed circuit board PCB inspection, flat panel display defect detection, film/foil surface scratch inspection using line scan cameras.
- Precision measurement: Dimensional measurement, contour detection for semiconductor parts and electronic components.
- High-speed imaging recording: Capture continuous image sequences from high-speed area-scan cameras for quality analysis.
- Factory automation production line: Synchronize image capture with conveyor / motion stage via encoder trigger.
- Scientific imaging & research: Optical microscopy imaging, non-destructive testing(NDT) image collection.
AVAL DATA APC-3310A IPCI-HIC2
AVAL DATA APC-3310A IPCI-HIC2
AVAL DATA APC-3310A IPCI-HIC2
