AMAT

1.Functions

1. Embedded Computing & Recipe Execution: Onboard Intel Pentium III low-power CPU runs industrial operating system, executes semiconductor process recipes, handles equipment control logic and system task scheduling.www.plcva.com
2. CompactPCI Bus Master Control: Acts as system master over 32-bit 33MHz CompactPCI backplane, manages data communication with other cPCI peripheral modules (analog I/O, digital I/O, motion control, sensor interface boards).
3. Data Acquisition & Processing: Collects chamber sensor data, pressure readings, gas flow status and servo position signals; performs real-time calculation, data buffering and process log recording.
4. Multi-interface Communication: Integrates Ethernet, USB, PS/2 keyboard/mouse, IDE storage and serial ports. It exchanges commands and status data with upper factory host, HMI panel and MES system.
5. Watchdog Timer & System Safety: Built-in hardware watchdog timer automatically triggers system reset if software crash occurs; monitors board temperature and power rail status for fault detection.
6. System Configuration & Storage: Stores machine configuration, calibration parameters, process logs and fault history in onboard non-volatile memory and connected storage media. Supports BIOS setup and field maintenance.

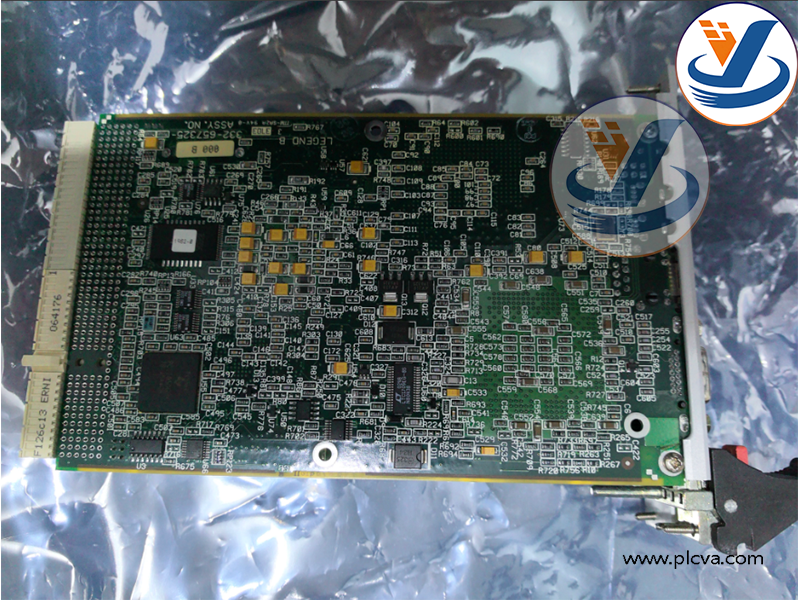

VMIC PCI-7325 Industrial SBC

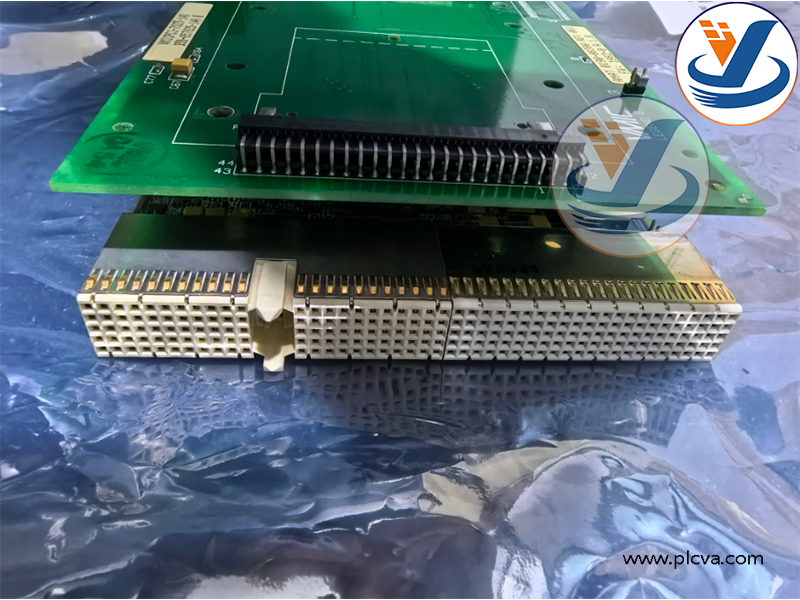

VMIC PCI-7325 Industrial SBC

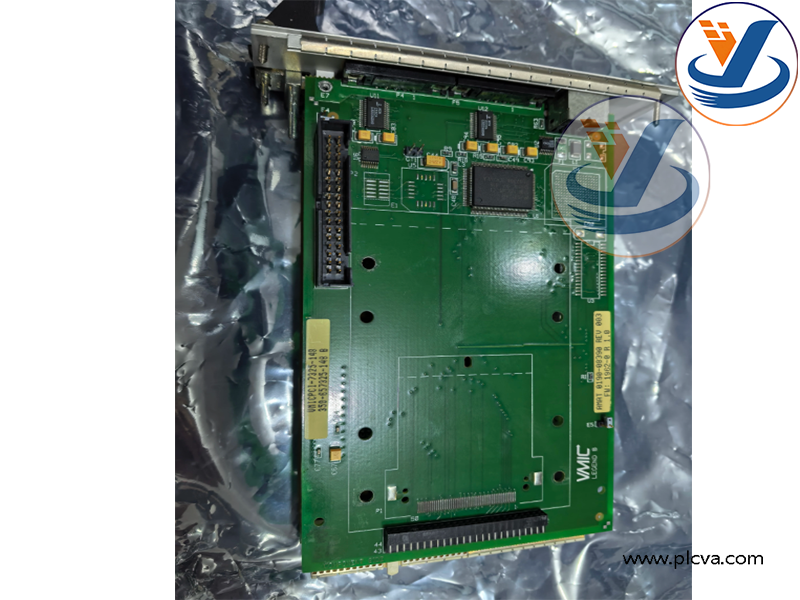

VMIC PCI-7325 Industrial SBC

2. Applications

• Primary Industry: Semiconductor wafer fabrication.
• Core Usage: Installed in CompactPCI rack of Applied Materials wafer processing equipment (etch, deposition, PVD/CVD systems). It serves as the embedded industrial host computer of the equipment control subsystem.www.plcva.com
• Working Scenario: Operates inside cleanroom equipment electrical cabinet. It coordinates all cPCI peripheral modules, runs process control software, executes wafer processing recipes and monitors chamber real-time status during wafer fabrication.
• Application Value: Delivers reliable real-time computation for plasma process control; ensures stable high-speed data exchange across the CompactPCI backplane; provides automatic system recovery via watchdog to reduce unplanned downtime. It is a critical original replacement spare part for AMAT semiconductor equipment maintenance.

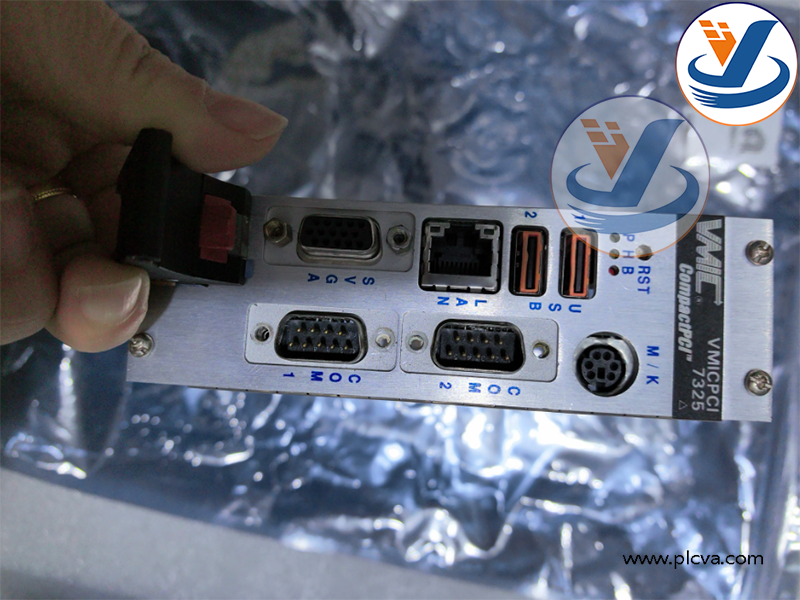

VMIC PCI-7325 Industrial SBC

VMIC PCI-7325 Industrial SBC
