ABB

1.Functions

1. Collect resolver analog position signals from each axis motor of ABB robot, convert analog resolver signals into digital position data.
2. Track and store revolution counter values of each motor, record robot axis calibration offset, mechanical zero point and position parameters, backed up by SMB battery to retain data after power off.www.plcva.com
3. Package all axes position data and transmit to IRC5 robot controller via serial communication bus.
4. Compare position data between SMB board and controller during power-up, detect data inconsistency and trigger fault alarms.
5. Support up to 7 axes position measurement, perform signal conditioning and basic channel self-diagnosis for resolver feedback circuit.
6. Maintain absolute position memory of robot axes, avoid losing origin position after power failure.

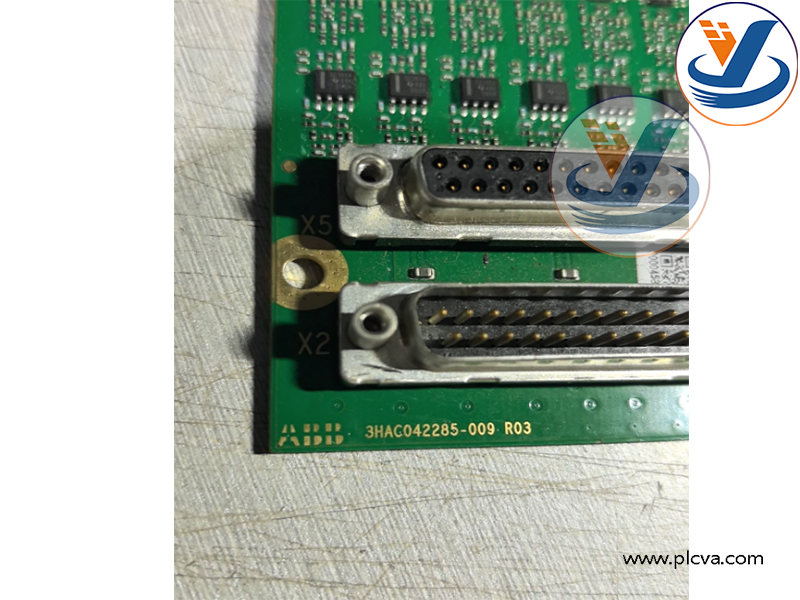

ABB 3HAC042285-009R03 Robot SMB Board

2.Applications

1. ABB IRC5 industrial robot body: Core position measurement unit installed inside robot arm, applied to multiple ABB robot models such as IRB2600, IRB4600, IRB6640 etc.
2. Welding, handling, palletizing, cutting robots: Ensure high-precision motion positioning for robotic arm during automatic operation.www.plcva.com
3. Automotive manufacturing: Robot spot welding, gluing, assembly workstation position feedback.
4. Metal fabrication & casting: Material handling and machining robot position monitoring.
5. Food, pharmaceutical and logistics automation: Pick & place robot absolute position retention.
6. Robot maintenance spare part: Used for replacement when original SMB board is damaged, communication failure or position data loss.

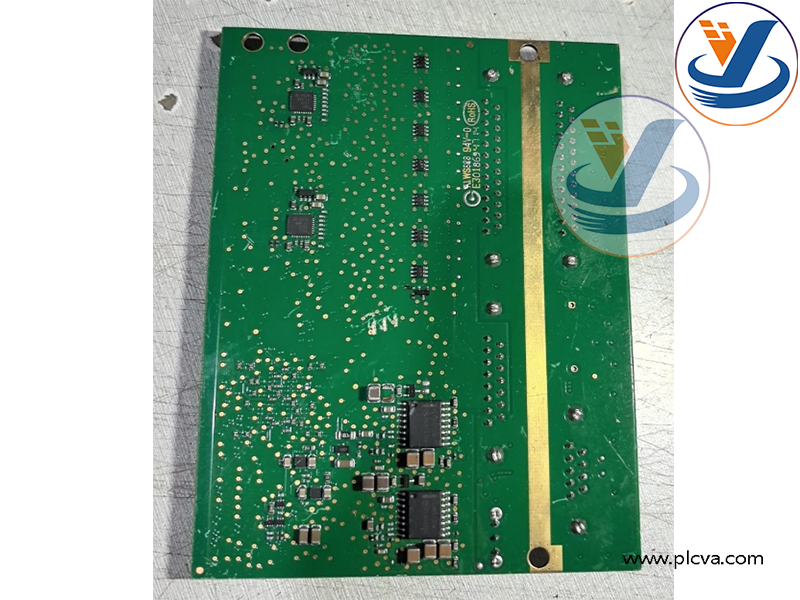

ABB 3HAC042285-009R03 Robot SMB Board

ABB 3HAC042285-009R03 Robot SMB Board
