EMERSON 7001676-J000 Server Power Supply
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Functions
- AC-DC Power Conversion Convert 100–240V alternating current from mains input into stable +12V direct current to feed server motherboard, CPU, memory, hard drives and PCIe components.
- Hot-Swap & Redundant Power Support Supports redundant parallel deployment. If one PSU fails, the other unit automatically takes full load. Technicians can pull out and replace the faulty unit while the server keeps running, no downtime.www.plcva.com
- High-efficiency Energy Conversion 80 Plus Platinum certified, power conversion efficiency ≥90% under typical load, reduces heat generation and power consumption. Built-in active power factor correction .www.plcva.com
- Multi-layer Circuit Protection Integrates over-voltage, over-current, over-temperature, short-circuit and overload protection. It will shut down automatically to avoid damaging server hardware when abnormal conditions occur.
- Integrated Thermal Control Built-in single cooling fan with speed smart adjustment according to load and temperature, to cool the power module itself.
- Real-time Status Monitoring Communicate with server BMC via the gold finger connector; report PSU health, voltage, temperature and fault alarms to server management system.plcva.com

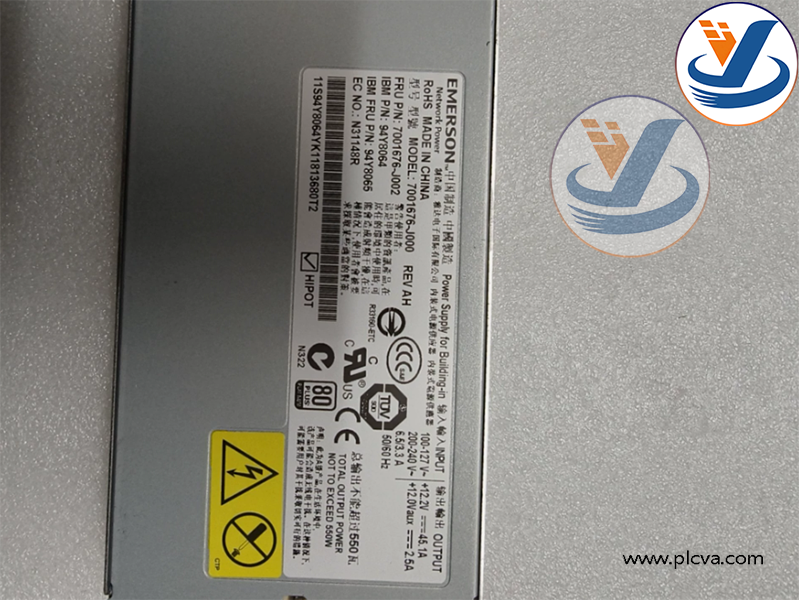

EMERSON 7001676-J000

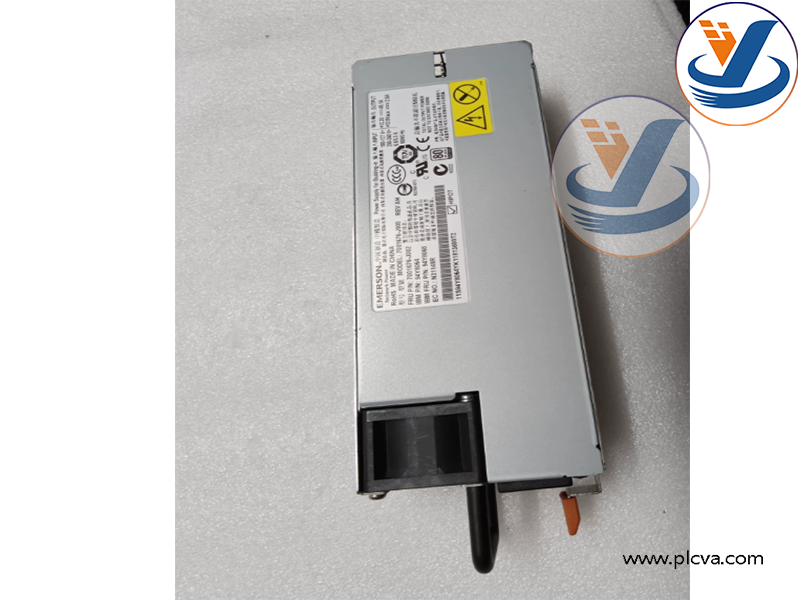

EMERSON 7001676-J000
2. Applications & Purpose
This is an OEM dedicated power supply for IBM Lenovo System X rack servers. Compatible server models: IBM System x3550 M4, x3650 M4, x3300 M4, x3630 M4, partial x3550 M5 / x3650 M5.
Main Usage Scenarios:
- Enterprise data center rack servers
- Virtualization host, database server, file storage server, web application server
- Server power redundancy configuration to improve system availability
- Replacement spare part for failed original PSU during server maintenance
Core Purpose: To provide continuous, clean and stable DC power for 2U rack enterprise servers. Reduce power failure risk, guarantee non-stop operation of business services, simplify on-site maintenance and lower data center operation cost.

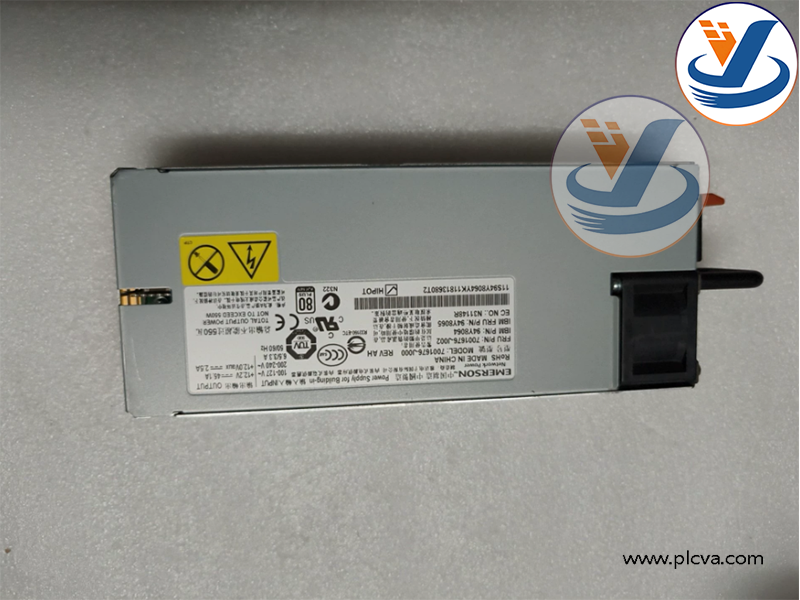

EMERSON 7001676-J000
EMERSON 7001676-J000
