Honeywell CP-SPC Small Point Controller
- Warranty： 365 days
- Quality: Original module
- Condition： New / Used
- Warehouse: Spot
- Delivery time: Shipped in 3 days after payment
- Mailbox：plcvarious@foxmail.com
Introduction
1.Functions
- Local DDC Logic Control Adopts 32-bit ColdFire processor; supports custom control programming via ComfortPoint Open Studio. It executes PID regulation, time schedule, logic interlock and threshold alarm locally, independent of upper host.
- Onboard 21-Point I/O Acquisition & Output
- 4 DI (dry contact digital input, 2 channels support pulse counting for energy meter)
- 8 DO triac digital output (24VAC)
- 6 UI universal analog input
- 3 AO analog output (0–10Vdc) Collect temperature, humidity, pressure, switch status; output control signals to valves, fans and actuators.
- BACnet MS/TP Field Communication Connects to ComfortPoint Open Plant controller over BACnet MS/TP bus. Supports peer-to-peer data sharing with CP-VAV and other CP-SPC controllers; auto MAC address assignment. Fully integrates with CPO Manager and EBI upper monitoring software.
- Time & Data Backup Built-in real-time clock; gold capacitor provides up to 72-hour backup to retain program and historical data after power loss.www.plcva.com
- Diagnosis & Alarm Detects I/O circuit faults, communication failures and power abnormalities; uploads fault information to BMS for remote monitoring and maintenance.
- Convenient Installation Supports DIN rail or wall mounting, IP20 protection grade.

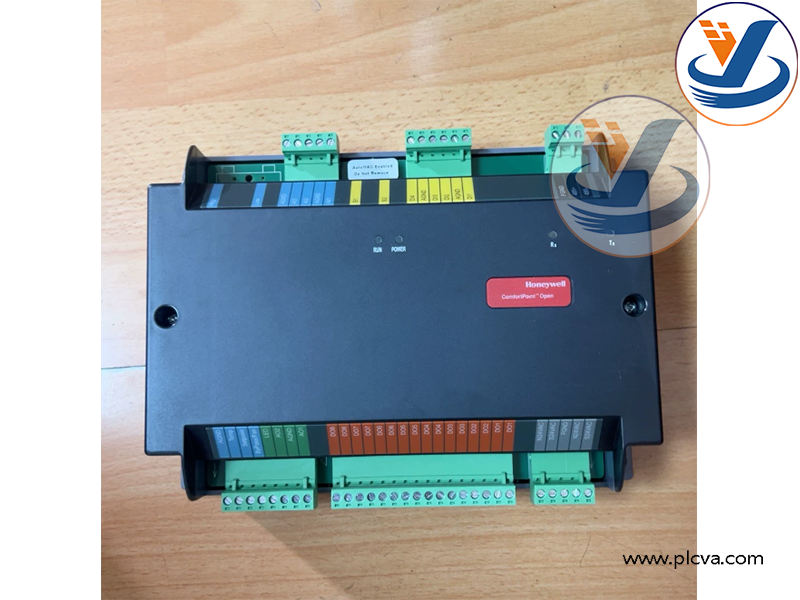

Honeywell CP-SPC Small Point Controller

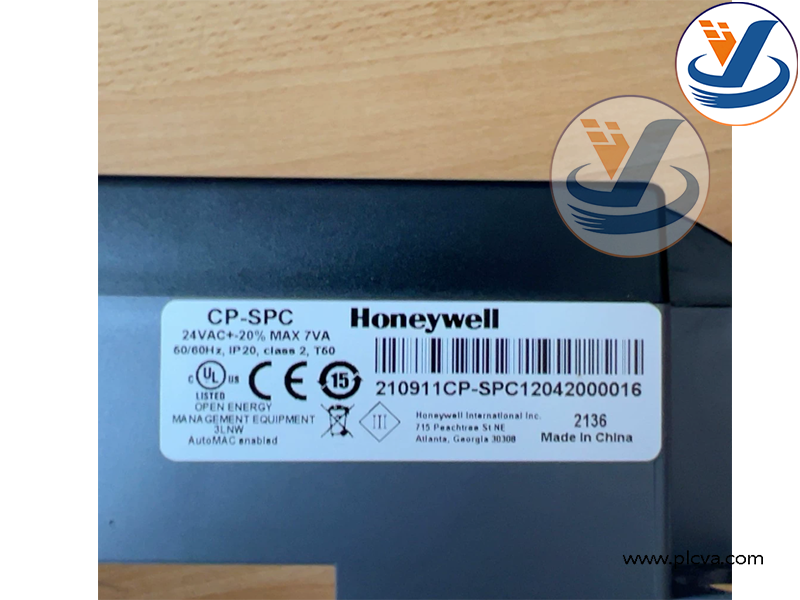

Honeywell CP-SPC Small Point Controller
2. Applications
It belongs to Honeywell ComfortPoint Open Building Management System, used as field DDC controller for HVAC terminal equipment in commercial buildings.www.plcva.com
Typical Control Objects:
- FCU Fan Coil Units
- Small AHU Air Handling Units
- RTU rooftop units
- Small water pump, lighting and auxiliary building equipment
Application Industries : Office buildings, shopping malls, hotels, hospitals, data center auxiliary air-conditioning, large public buildings.

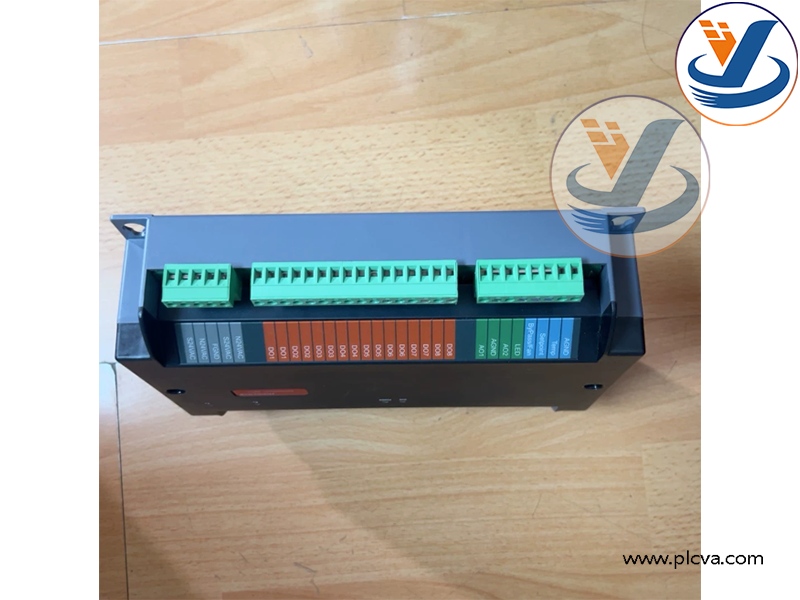

Honeywell CP-SPC Small Point Controller

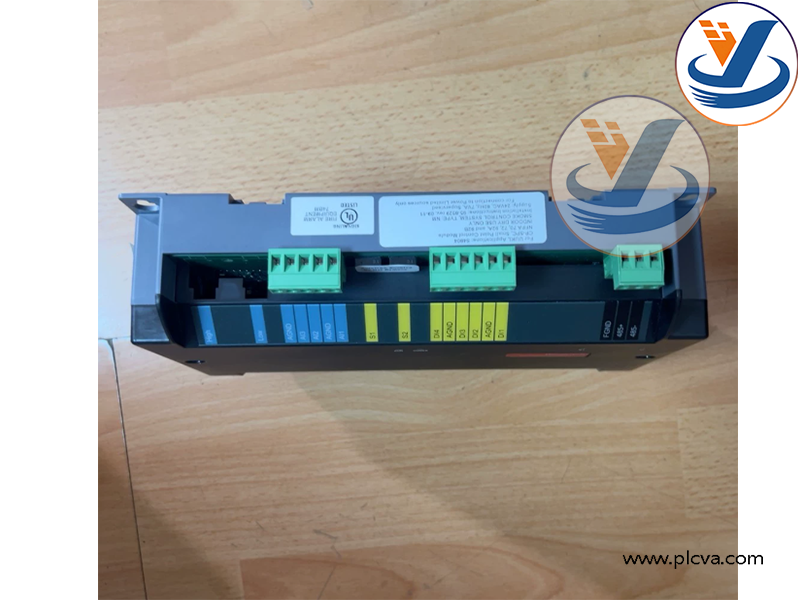

Honeywell CP-SPC Small Point Controller
