DEIF

1.Functions

Receive 4–20 mA analogue or CAN bus signal from thruster angle / pitch transmitter, convert signal to pointer position for direct visual reading.www.plcva.com
Adopt DEIF patented X-Coil microprocessor drive technology, Class 0.5 high measurement accuracy, 360° full rotation pointer capability.
Built-in dimmable LED backlight for clear reading under daylight and night navigation conditions.
High shock and vibration resistance (50g shock rating), suitable for harsh marine environment.
Support signal calibration, zero and span adjustment on site; compatible with SIN/COS angle sensor input option.www.plcva.com
Marine type approved, complies with marine bridge instrument standards.
Panel mounting design, easy installation and integration with vessel propulsion control system.

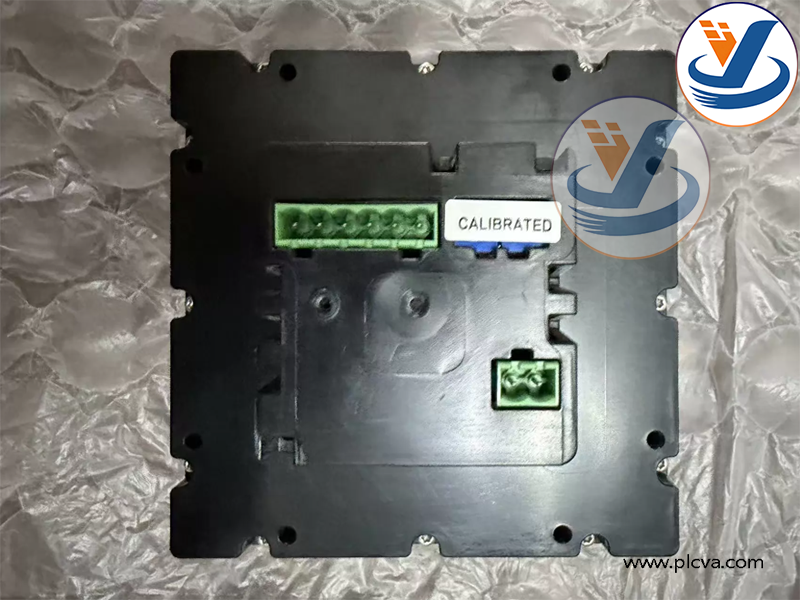

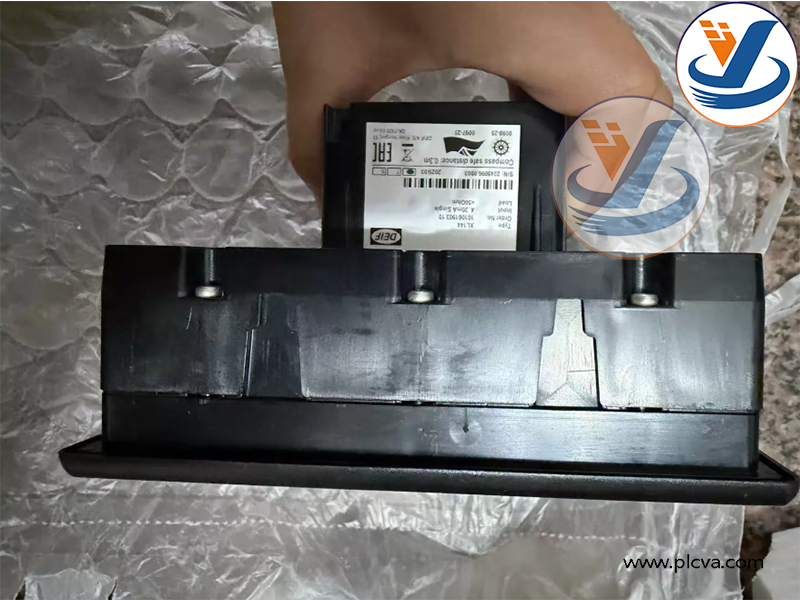

DEIF 0801-08 XL96 Illuminated Bridge Indicator Physical photo

DEIF 0801-08 XL96 Illuminated Bridge Indicator Physical photo

This is a marine bridge pointer indicator for azimuth thruster / tunnel thruster monitoring.

Installation location: Ship wheelhouse, bridge console, bridge wing panel.
Core use: Real-time display thruster azimuth angle or propeller pitch position for vessel manoeuvring.
Vessel types: Offshore platform supply vessels, tugboats, yachts, ferries, working vessels equipped with bow/stern tunnel thrusters or azimuth thrusters.
Working purpose: Provide helmsman with clear visual feedback of thruster status, assist precise vessel positioning, dynamic positioning and harbour manoeuvring.www.plcva.com
Matching system: Works together with thruster control system, angle transmitters and marine control panels.
