Omron NX-ECC203 Product Complete Description
I. Product Model Classification
Brand: OMRON (Omron)
Series: NX Series EtherCAT Communication Coupler Unit (EtherCAT Coupler)
Full Model: NX-ECC203
Position: Remote I/O Bus Bridge Module, it is the core remote I/O gateway device of the Sysmac Automation Platform – Omron Automation – Americas.
II. Core Functionality
It is a transfer bridge between the EtherCAT industrial bus network ↔ the NX series local I/O backplane:
Network side: Connects the EtherCAT master bus of Omron NJ/NX/NY series Sysmac motion controllers;
Local side: The backplane of NX Bus can be equipped with all NX series I/O modules such as digital input/output, analog quantity, temperature, encoder, high-speed counter, etc.;
Realizes distributed remote I/O control: IO can be scatteredly arranged in control cabinets and production line stations, only using network cables to connect to the controller, significantly reducing on-site hard wiring.

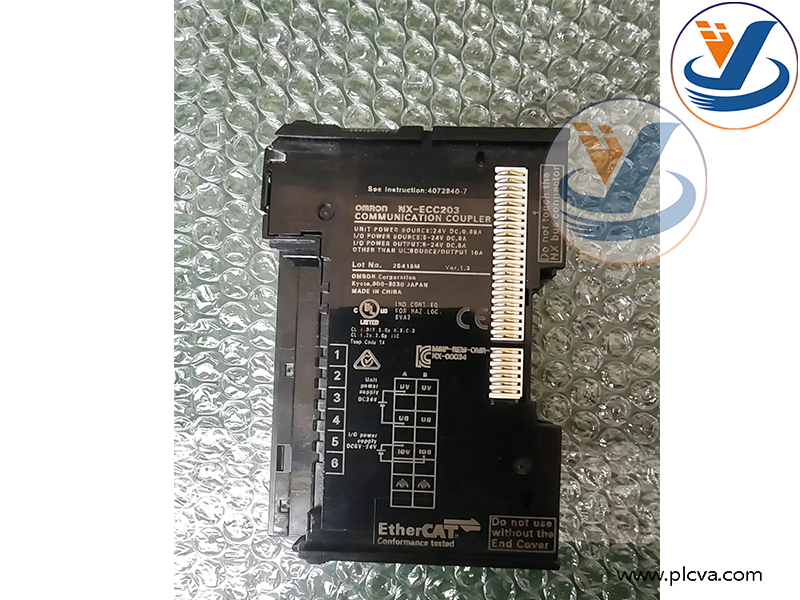

Key Hardware Specifications (Backside Label Corresponding Parameters)
Power Supply Specifications
Unit Control Power Supply: 24VDC, 0.86A;
IO Load Output Power Supply: 5~24VDC, maximum output current 10A (This is the greatest advantage of this model, while the ECC201 of the same series only has 5A);
Communication Performance
Minimum EtherCAT Synchronization Cycle: 125μs, supports distributed clocks, suitable for servo, high-speed synchronous equipment;
The maximum number of NX IO modules that can be connected in series by a single coupler is 63;
Dual-port EtherCAT (IN/OUT), supports daisy chain topology wiring;
Electrical and Environmental
Certifications: CE, UL, explosion-proof rating Class I Div.2 (can be used in oil and gas, dust explosion safe areas with low risk);
Operating Temperature: -20℃ ~ +60℃;
Wiring: Spring-free screw terminals, the backside A1~B7 are power distribution terminals, distinguishing the unit power supply from the sensor load power supply;
Version: Ver.1.3 (Lot number 25415M of the label is the production batch).
III. Main Application Scenarios (Industry + Equipment)

1. Automation equipment complete machine (most mainstream)
   3C electronic equipment: Soldering machines, dispensing machines, AOI vision inspection machines, lithium battery winding / cutting equipment;
   Remote collection of distributed IO (cylinders, sensors, temperature control, servo signals), high-speed synchronous motion control;
   Packaging machinery: Vertical packaging machines, box stacking machines, heat sealing machines; multi-channel analog quantity pressure / temperature collection, multi-axis synchronization;
   Injection / die-casting equipment: Mold temperature control, hydraulic pressure, safety door, travel switch remote IO expansion;
   Textile machinery: Weaving machines, spinning machines multi-point pulse encoder collection.
2. Distributed control of assembly lines
   Automobile assembly lines, logistics sorting and conveying lines, PCB production lines:
   NX-ECC203 remote I/O stations are arranged in different areas of the control cabinet, the controller is centrally placed in the central control cabinet, only network cables are used in the field, reducing wiring costs by 70%, facilitating production line renovation and expansion.
3. Heavy industry and energy equipment
   Wind turbine pitch control cabinet: Remote upload of dispersed IO signals to the main control;
   Water treatment / pump station: Remote collection of analog quantity liquid level, pH, flow rate from multiple sites;
   Port crane equipment: Portal cranes, gantry bridge limit switches, distributed signal collection of encoders.
4. Explosion-proof / Special working condition equipment
   Label marked as Class I Div.2, applicable to: Spraying equipment, small-scale chemical mixing equipment, lithium battery charging equipment, etc. are in situations where there are slight flammable and explosive vapors / dust.
   IV. Differentiation of the same series models (supplementary reference)

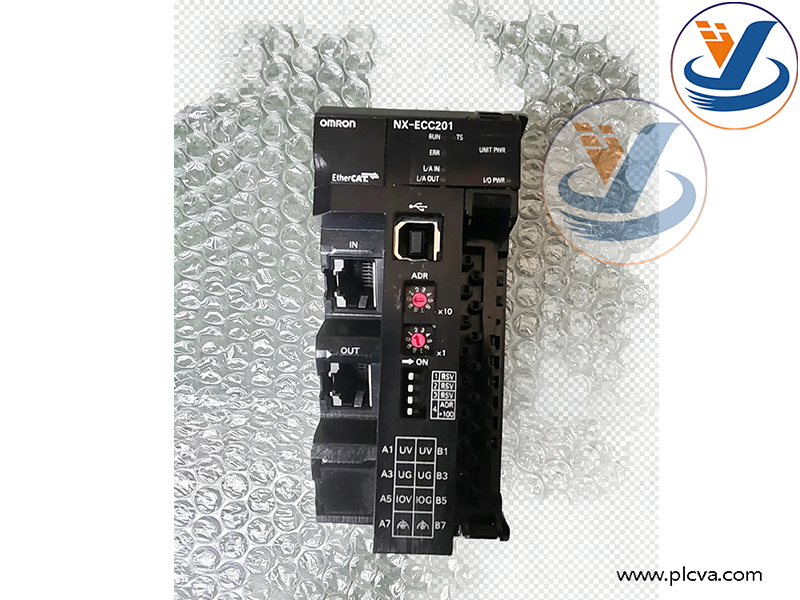

   NX-ECC201: Maximum IO power supply of 5A, for small equipment;
   NX-ECC202: Basic model with 10A;
   NX-ECC203: Enhanced model with 10A output, with optimized power supply circuit for anti-interference, preferred for long-distance multi-IO dense sites (the model in your picture).
   V. System pairing logic
   Upper-level controller (NJ501/NX102/NY500) → EtherCAT network cable → NX-ECC203 → Backplane mounts NX-ID digital IO, NX-AD analog quantity, NX-TC temperature, NX-PG high-speed counting and other modules to form a complete distributed machine automation control system.
